Ultra Low Latency Smart-telecaster Zao-SH - 5g HEVC live video streaming

0.04 seconds latency Changing the game in live video transmission. The Zao-SH is a small mobile encoder that can live stream video from a remote location back to any destination. But with an incredible glass-to-glass latency of only 0,04s (40ms) over LAN, or 0,065s (65ms) over 4G. Buy Zao-SH from UBMS Dubai.

The Zao-SH is an H.265 HEVC encoder that can be used in a variety of video contribution scenarios. From broadcast applications, such as news gathering, to public safety, law enforcement and military applications, the Zao-SH can be utilized to send an encrypted live stream from a broadcast or surveillance camera, drone, vehicle, body cam or helicopter. Buy 5G live video Streaming device from UBMS.

Smart-telecaster Zao-SH is a 5G compatible ultra-low latency live video transmitter

It is equipped with next-generation transmission technology that reduces the glass to glass latency to 0.04 seconds (40ms) or less. The latency in live video transmission has been an important concern but the Zao-SH is able to transmit live video signal to/from remote areas in almost real time.

Zao-SH is perfect for following Applications

  • 5G Live streaming
  • 5G video Streaming
  • 5g HEVC live video streaming
  • 5G low latency streaming
  • Drone 5G streaming

The Zao-SH can send a fully encrypted live stream, but simultaneously a return data feed can be sent from the destination back to the Zao-SH, for example to control a PTZ camera or to remotely control a drone gimbal.

The Zao-SH can live stream reliably over multiple bonded 4G SIM cards from different network providers, and /or can be utilized with a LAN connector.

At the receiving end, a Linux based software decoder will provide a video output of the live video. End to end latency starts at a remarkable 0,04s.

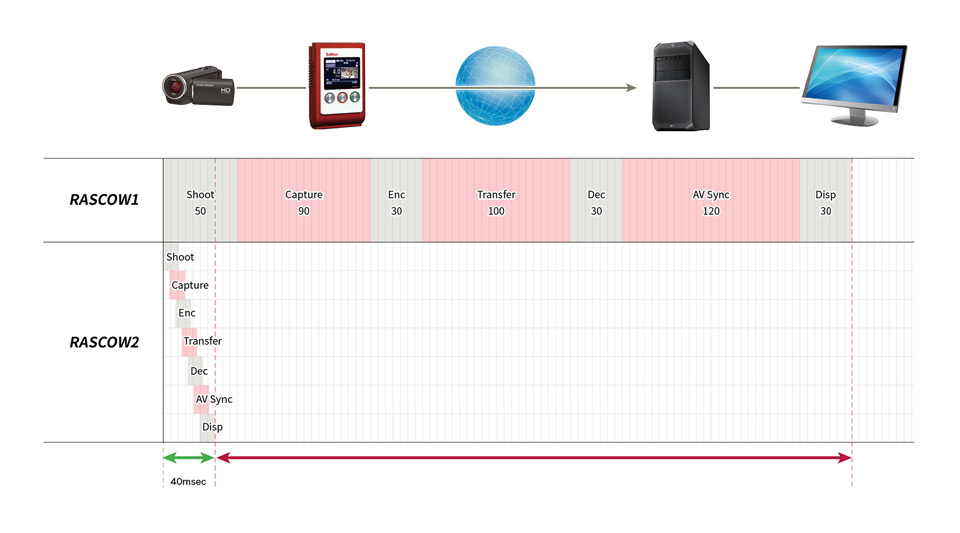

Explanation of each part:

Shoot

The period from when the light enters the lens of the camera until video data is on the output of the SDI/HDMI terminal on the camera

Capture

The period from capturing video data from SDI/HDMI and performing color space conversion until it is input to the encoder

Encode

The encoding (compression) time

Transfer

The period in which compressed data is extracted from the encoder and divided into communication packets for multilink transmission/reception. Includes time for error correction and packet sorting between each connection

Decode

The decoding (uncompression) time

AV Sync

The time until adjusting audio and video timing and outputting to SDI/HDMI

Display

The period from SDI/HDMI output of the receiver to display the video on monitor (monitor-dependent part)

Function / Feature

1. Very short delay / RASCOW2

Ultra Low Latency

In order to solve the delay problem that occurs during simple transmission, Soliton developed RASCOW2, which is the second version of RASCOW (Real-time Auto Speed ​​Control based On Waterway-model) Solitons’s original codec management/communication protocol. RASCOW2 makes the encoding procedure faster while controlling all transmission settings faster and more efficiently. This feature succeeded in significantly reducing the delay associated with compression.

2. Remote Control Function

Remote driving or remote operation

With almost zero latency, it is now possible to remotely control a car or construction equipment connected to Zao-SH in a remote location. Until now, the delay on live control transmission systems was too large and it was difficult to perform remote operations safely with a live video stream. With the ultra-low latency Zao-SH, it is possible to control machinery effectively with a live video stream that is in almost real time from a remote location.

3. World's lightest

Mobile encoder

It is a palm-sized ultra-compact unit weighing 350g. It operates for approximately 60 minutes with the built-in battery and an additional 4 hours continuous operation with an external battery.

4. Stable and high speed

Multilink Bonding

Mobile networks of different cellular carriers can be bonded into one network to significantly increase bandwidth and stabilize the communication speed.

5. High compression

H.265/HEVC

Equipped with a highly efficient HEVC/H.265 hardware encoder, when compared to a traditional H.264 codec, it can transmit video with almost twice more efficiency.

Serial Control

  • Support Serial Tunneling
  • Same implementation as Zao-S and HDView
  • Remote control use case
PTZ Camera
Drone Gimbal
Remote Driving (Actuator for connected car)

In Septembe 2020 Soliton update release of Smart-telecaster Zao-SH. This update includes bug fixes and specification changes. See below for details.

Smart-telecaster Zao-SH 3.0.7.0 / 3.0.7.0-5G
  • Added support for interlaced signal input. The signals that can be input are as follows. 1080i 59.94 / 60/50
  • Interlaced (i) / Progressive (p) is displayed in the input signal format display.
  • Send-back audio is now available.
  • As a measure to reduce the load, the sound quality has been adjusted. The sound quality is lower than the previous version Su.
  • The automatic stop function of the communication modem has been implemented. If there is a communication path with poor line quality, turn off the power to the communication modem for 1 second and then connect. Resets the communication modem.

UBMS is the best choice to purchase all Soliton products . Get in touch with UBMS for to get more updates about soliton products & offers

Transmitter specs

Hardware for transmission
weight
About 350g
size
Width 77 mm x height 123 mm x depth 35 mm (excluding protrusions)
Power supply
Dedicated connector x 1 unit, built-in battery (approx. 20Wh, approx. 60 minutes operation, approx. 150 minutes charge) x 1
power consumption
About 20W
Video input terminal
Equipped with BNC (75Ω din1.0 / 2.3) x 1 and HDMI x 1
Communication terminal
Equipped with micro USB2.0 x 3 and USB2.0 x 1
Operating environment
Operating: 0 to + 40 ° C / 20 to 80% RH (no condensation)
Storage: -20 to + 60 ° C / 10 to 80% RH (no condensation)
communication
Applicable line
5G, LTE, WiFi, Ethernet
Error correction
ARQ, packet sort
protocol
UDP / IP, TCP / IP (RASCOW2)
Multilink
Up to 4 lines
Serial communication
Expansion with the specified USB serial conversion cable
Video
Coding scheme
H.265 Main Profile
Supported input formats
・ HDMI
1980 x 1080: 25p, 29.97p, 30p, 50p, 50i, 59.94p, 59.94i, 60p, 60i
1280 x 720: 50p, 59.94p, 60p
・ SDI
1980 x 1080: 25p, 29.97p, 30p, 50i, 59.94i, 60i
1280 x 720: 50p, 59.94p, 60p
bit rate
128kbps to 15Mbps
frame rate
Maximum
29.97fps ( when the input video is 1080p 59.94 / 29.97) Maximum 59.94fps (when the input video is 720p 59.94)
Voice (two-way)
Coding scheme
Opus
Channel
Stereo
sampling
48kHz
input
Embedded Audio
output
3.5φ stereo mini plug
bit rate
16 ~ 510 kbps

Receiver specs

Receiving software
Model name
Zao View
Recommended operating environment
hardware
HP Z4G4 Workstation
OS
Ubuntu 18.04 LTS
CPU
IntelR XeonR W-2123 Processor (3.6GHZ, 4Core, 8.25M cache)
RAM
32GB DDR4 SDRAM (2666MHz ECC Registerd, 8GB x4)
HDD
1TB HDD (SATA, 7200rpm)
GPU
NVIDIAR QuadroRTX4000 8GB
Output interface
DisplayPort / SDI *
* SDI output is optional
Network interface
Supports LAN 1000BASE-T / 100BASE-TX / 10BASE-T
Number of simultaneous connections
Zao-SH x 1
Transmission mode
Delay priority mode (Low-latency) / Bandwidth mode (Bandwidth)
Coding method
H.265 Main Profile
Video bit rate
128Kbps ~ 15Mbps
Voice (two-way)
Coding scheme
Opus
Channel
Stereo
sampling
48kHz
input
Built-in sound card
output
Embedded Audio (DisplayPort or embedded sound card)
* SDI output is optional
bit rate
16 ~ 510 kbps
Additional delay amount setting
0msec-1000msec
Delay warning display
Yes (50msec-1000msec)
External device delay amount setting
0msec-1000msec
Serial communication
Expansion with the specified USB serial conversion cable
  • Live relay, remote control by serial signal
  • Utilizes RASCOW2 for optimization of video quality based on available bandwidth
  • New Uplink protocol updated from RASCOW for better performance
  • Multilink and Lower Latency
  • Fault tolerance mode – Lower Latency, but requires bandwidth
  • Load balancing mode – Slightly Longer Latency, requires less bandwidth
  • Ultra Low Latency
  • Glass to Glass 40ms latency at minimum
  • Encrypted live streaming over multiple bonded 4g SIM cards and /or LAN port
  • Support Serial Tunneling - return feed for serial control eg PTZ or drone gimbal
  • Zao View
  • Newly Linux based decoder
  • 1 Channel Receiver /Planning for 4 Channel
  • Required Ubuntu workstation:
  • HP Z4G4 + NVIDIA RTX4000 (+BMD Decklink Pro 8K)
  • Point to Point connection (no cloud subscription required)
  • Decoder must have fixed IP address
  • UDP port :TBD (current version is same as Zao-S)
