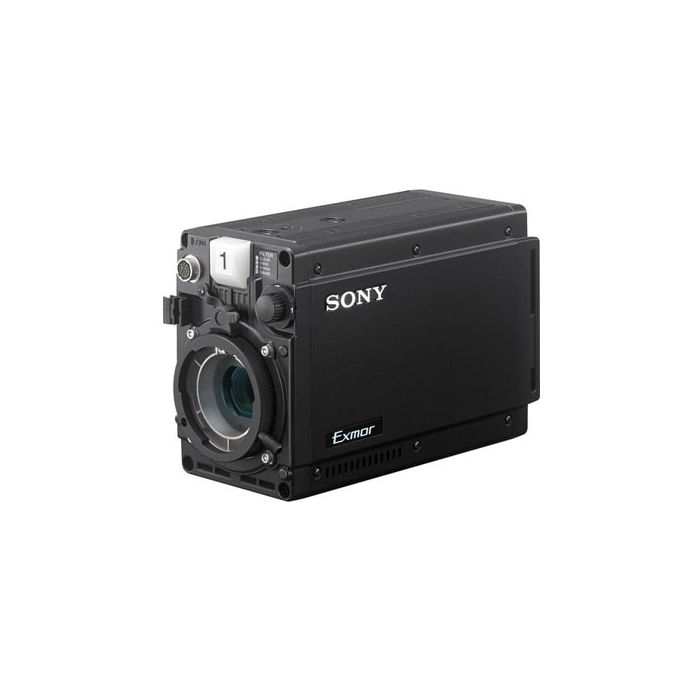

Sony HXC-P70 System Camera


Affordable three 2/3-inch Exmor CMOS sensors full HD compact system camera with direct optical fibre cable connection. (Mfr # HXC-P70)

* Please note that the price shown does not include, Shipping, Custom duties, Bankwire charges and local taxes that may apply depending on your location. Thank you.


The Sony HXC-P70 is a point-of-view “POV” camera developed for a wide range of more affordable applications than the HDC-P1, thanks to a longer cable distance extension and a higher sensitivity, in addition to its compact size, light weight and lower power consumption.

It allows direct connection to the HXCU-FB70 camera control unit by optical fibre cable, in addition to two HD/SD-SDI outputs. The hybrid type fibre cable can extend the distance from the CCU up to 500 m, while supplying the required power. If a single-mode fibre cable is connected, the distance can extend up to 10 km with a local power supply.

Key Features:

  • 2/3" 3 CMOS HD Imagers, "Exmor"
  • Optical Fiber Transmission with Direct Cable Connection

    Up to 500m by the Sony CCFN hybrid type optical fiber cableincluding power supply from CCU.
    Up to 10km by the single-mode fiber cable with local power supply

  • Connect to the current CCU, HXCU-FB70
  • Integrated Motorized ND Filter and Electrical CC filter
  • Slow Shutter with 64 Frame Accumulation, and +48dB Gain Up >> very bright even with dark condition
  • Total Level Control System

For Auto Gain, Auto Iris, and Auto Shutter

  • 2x/4x Digital Extender
  • Low Power Consumption, 17W


Storage Temperature -20°C to +60°C -4°F to +140°F
Operating Temperature -10°C to +45°C 14°F to +113°F
Dimensions 86 x 130 x 210 mm 3 1/2 x 5 1/8 x 8 3/8 inches
Power consumption 17W
Power requirement CCU: DC48V, 1.7A (max.) Ext.DC In: DC12V, 3.6A (max.)
Mass Approx. 1.5 kg Approx. 3 lb 4 oz

Item Includes

  • Tally Number Plate (1 set)
  • Operation Guide (1)
  • Operation Manual (CD-ROM 1)
  • Standard Manufacturer's warranty
