Tilta Nucleus-M Wireless Lens Control System Partial Kit V

Tilta Nucleus-M Wireless Lens Control System Overview

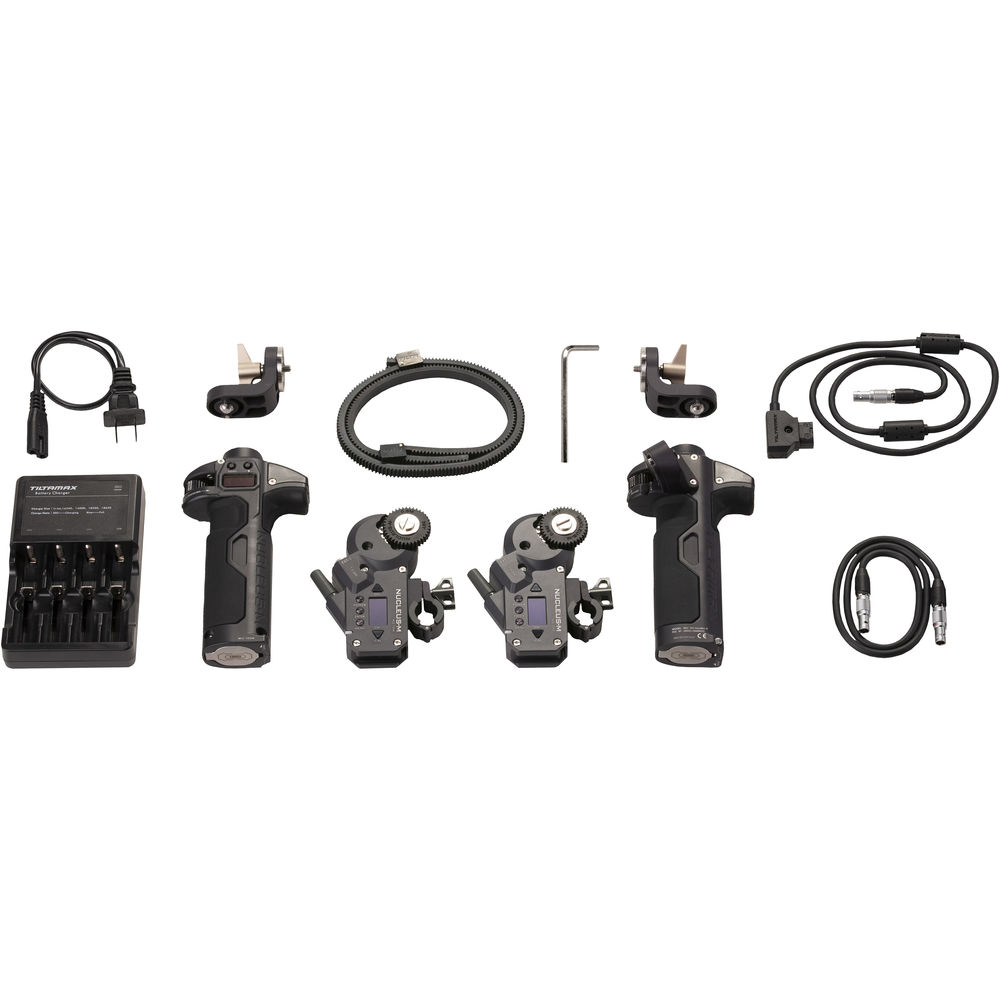

The Tilta Nucleus-M Wireless Lens Control System Partial Kit V enables a camera operator to hand-hold their camera and pull focus and iris wirelessly. The kit includes left and right handgrip controllers, ARRI rosette adapters, two Nucleus-M motors, two removable lens belts (DSLR Lens Follow Focus Adapters), two motor power cables, and a battery charger. If you are using a lens that does not have standard cine-style gears, then use the included lens belts to add gears to your lens.

This partial kit is a dual-axis system, typically controlling focus and iris, but the hand control units will allow you to control an additional motor (not included) for zoom control when using a zoom lens. The system can wirelessly pull focus from up to 1000' away, and available 18650 batteries (not included) can power each hand unit for approximately 10 hours on a single charge. The first motor is powered via the included D-Tap to 7-pin cable, the second motor daisy-chains to the fist via the 7-pin to 7-pin cable for power.

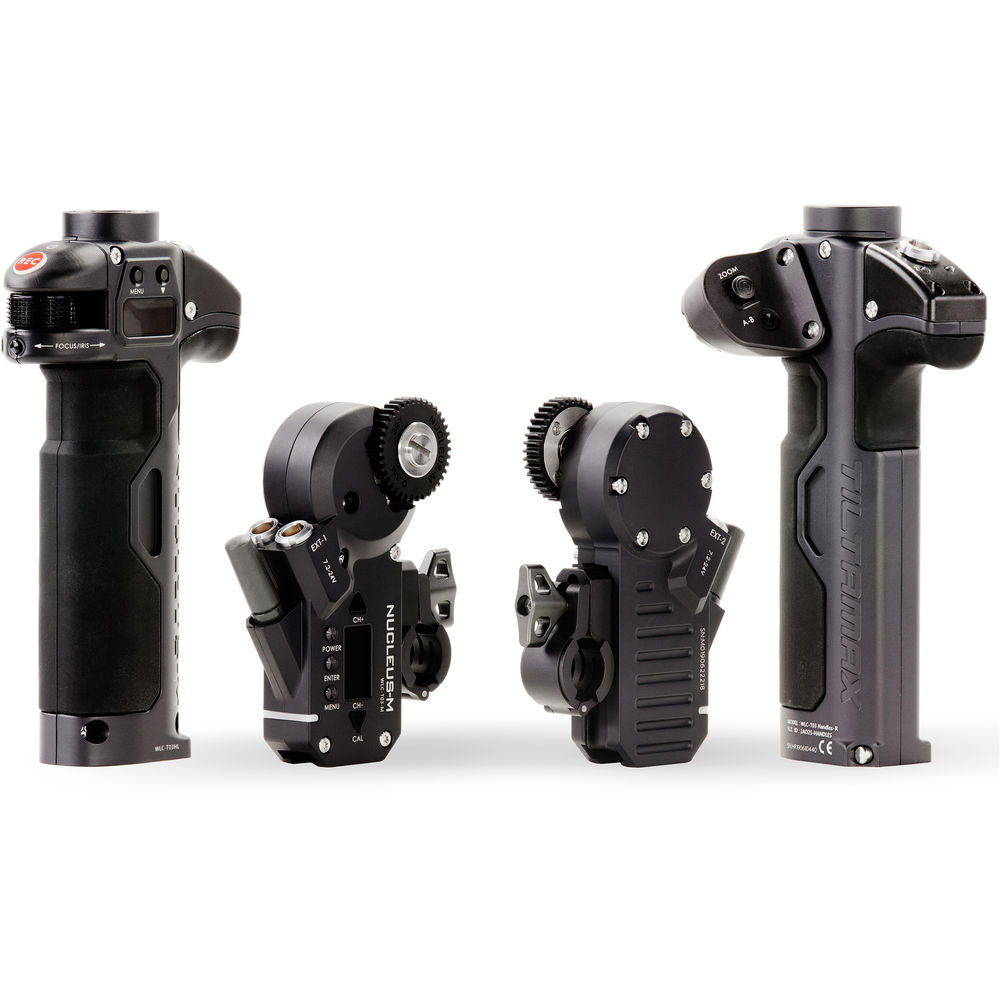

1. Tilta Nucleus-M Handgrip (Left)

The Tilta left-side Wireless Handgrip provides fingertip lens control while also functioning as a handgrip support for your camera rig. This component of the separately available Nucleus-M FIZ (focus/iris/zoom) system enables you to split control between the handgrip and the hand unit as you prefer.

2.Tilta Nucleus-M Handgrip (Right)

The Tilta right-side Wireless Handgrip provides fingertip lens control while also functioning as a handgrip support for your camera rig. This component of the separately available Nucleus-M FIZ (focus/iris/zoom) system enables you to split control between the handgrip and the hand unit as you prefer.

3.Tilta Nucleus-M FIZ Lens Control Motor

The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.

4.Tilta DSLR Lens Follow Focus Adapter

Use this DSLR Lens Follow Focus Adapter from Tilta to tie around your DSLR lens and control focus with any of Tilta's follow focus systems such as the Nucleus-Nano or Nucleus-M. The adjustable, zip tie-style adapter ring is made of silicone and plastic and ties around most DSLR lenses. The teeth lock into the follow focus motor's gear for smooth adjustments.

5.Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable

6.Tilta Nucleus-M 7-Pin Motor-to-Motor Connection Cable (21.65")

7.Tilta ARRI-Standard Rosette Adapters for Nucleus-M Handgrip (L&R)

8.Tilta Nucleus-M Battery Charger
