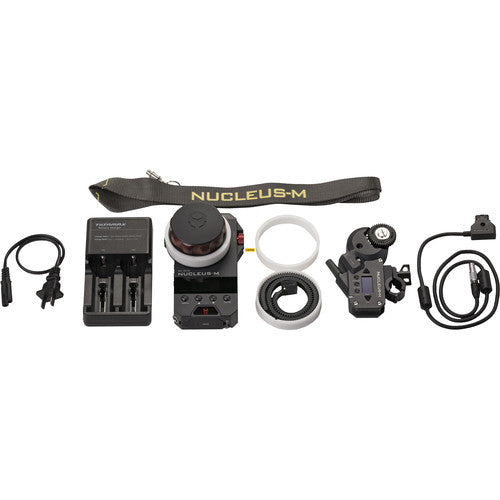

Tilta Nucleus-M Wireless Lens Control System Partial Kit I

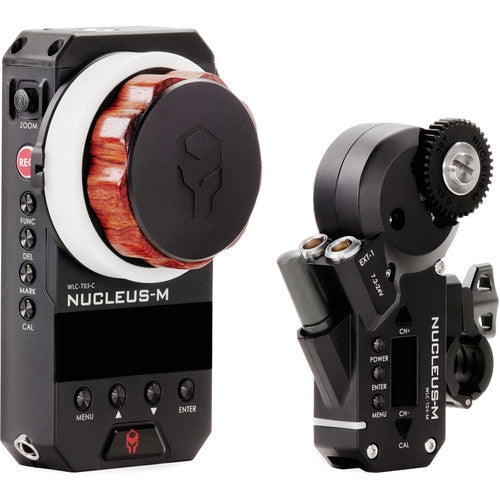

Tilta Nucleus-M FIZ Hand Unit

The Tilta Nucleus-M FIZ Hand Unit provides three-channel wireless focus, iris, and/or zoom control as part of the Nucleus-M lens control system. The hand unit features a large wood-edged focus knob, a zoom joystick, an iris wheel, and a backlit LED display window.

Select from low, medium, and maximum transmission ranges to best suit your working distance and battery reserves. The Nucleus-M FIZ Hand Unit's choice of 15 2.4 GHz channels minimizes the chance of interference in high-traffic areas. Set up to 10 soft stops with vibration for focus pulls, and calibrate lenses automatically or manually.

Wireless run/stop is available for select cameras using the hand unit and separately available cables. The hand unit is powered by two separately available lithium-ion batteries and can operate for up to 10 hours on a single charge.

Note: Please note that batteries are not included and must be sourced separately.

Features

• 3-channel wireless lens control unit
• Control focus, iris, and/or zoom
• Short-, medium-, and long-range transmission options
• 15-channel selection minimizes outside interference
• Powered via two 18650 rechargeable lithium-ion batteries (not included)
• Up to 10-hour runtime on a single charge
• Ambidextrous design with large wood-edged knob

UPC: 602016518892

Tilta Nucleus-M FIZ Lens Control Motor

The compact Tilta Nucleus-M FIZ Lens Control Motor features an integrated motor drive, eliminating the space of a separate drive box and enabling a quicker setup. Power the motor using a separately available D-Tap cable and power source, or daisy-chain to another motor using a 7-pin cable.

The Nucleus-M wireless motor includes a cine standard 0.8 Mod drive gear and a 19mm rod adapter with a bushing for mounting onto a 15mm rod. The motor features automatic or manual calibration, a display window, and high, medium, and low torque settings.

Features

• Brushless motor with an integrated motor drive
• Cine-lens standard 0.8 Mod, 35-tooth, 32-pitch gear
• Motor clamps onto 19mm or 15mm rods (with included bushing)
• Power via separately available D-Tap cable or daisy-chain to additional motors
• Automatic and manual calibration
• For focus, iris, or zoom control
• High, medium, and low torque settings
• Status display window

Tilta DSLR Lens Follow Focus Adapter

Use this DSLR Lens Follow Focus Adapter from Tilta to tie around your DSLR lens and control focus with any of Tilta's follow focus systems such as the Nucleus-Nano or Nucleus-M. The adjustable, zip tie-style adapter ring is made of silicone and plastic and ties around most DSLR lenses. The teeth lock into the follow focus motor's gear for smooth adjustments.

UPC: 709016727092

Tilta Nucleus-M D-Tap to 7-Pin Motor Power Cable

This 23" Nucleus-M D-Tap to 7-Pin Motor Power Cable from Tilta is designed to power your Nucleus-M lens control motor using a D-Tap power source.

After powering one motor with this cable, other motors may be daisy-chained to each other.

UPC: 636946280901

Tilta Nucleus-M Follow Focus Marking Disk

The Tilta Follow Focus Marking Disk is compatible with the Nucleus-M FIZ hand unit. Use this white plastic disk for creating custom focus marks used for pulling focus.

UPC: 602016518946

Tilta Lanyard for Nucleus-M FIZ Hand Unit

The Tilta Nucleus-M Lanyard is compatible with the Nucleus-M FIZ control hand unit. Use this strap to carry the control unit around your neck or to drape it from a stand. Lanyard features include a swiveling quick release clip and a wide nylon strap.

UPC: 602016518922

Tilta Nucleus-M Battery Charger

The Tilta Nucleus-M Battery Charger can charge one to four batteries used in the handset and handles of the Nucleus-M wireless lens control system. This versatile charger can be powered using AC, 5V USB, or 12V vehicle power. Compatible with 18650 lithium-ion and select other batteries, the charger features LED status lights and spring-loading for a secure battery fit.

Compatible Batteries

• 26650, 22650
• 18650, 18490, 18350
• 17670, 17500
• 16340, 14500, 10400
• RCR123
• NiMH/NiCd: AA, AAA, AAAA, C

UPC: 602016518953
