Teradek RT Single-Channel Wireless Lens Control Kit with MOTR.S Lens Motor
Teradek RT Single-Channel Wireless Lens Control Kit with MOTR.S Lens Motor
Teradek RT Single-Channel Wireless Lens Control Kit with MOTR.S Lens Motor

Teradek RT Single-Channel Wireless Lens Control Kit with MOTR.S Lens Motor

Brand: Teradek
SKU: 15-0045-SS
Barcode: UPC: 818264027752
Availability: New Release - Preorder
AED16,557.00 AED17,384.85 Incl. VAT
AED16,557.00 AED17,384.85 Incl. VAT
AED

Key Features:

  • MDR.S Compact Receiver
  • MOTR.S Lens Motor
  • CTRL.1 Wireless Lens Controller
  • Pre-Marked Focus Rings, Iris Ring
  • Motor, Controller, USB, and D-Tap Cables
  • LP-E6 Battery with Charger
  • Mounting Brackets, Neck Strap
  • Hard-Shell Case with Custom Foam

Free Shipping

Free standard shipping on orders over AED 500

Exchanges & Returns

Exchange or Return is possible only within five (5) days of purchase from date of delivery. Learn More.


Buy with 0% installments and pay AED 1379.75 for 12 months with selected banks. Read More
Description
Description
x

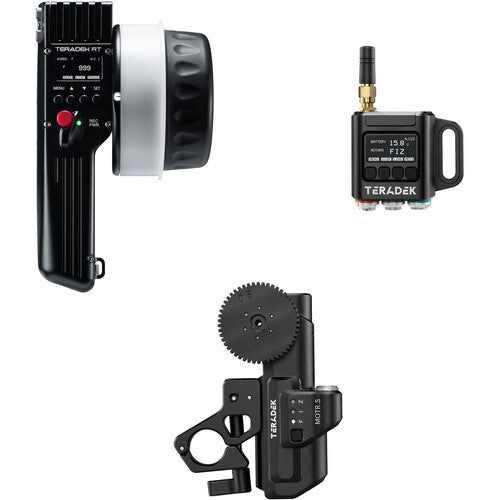

Teradek CTRL.1 and MDR.S Lens Control System Overview

This kit combines the Teradek RT CTRL.1 Single-Axis Wireless Lens Controller, the MDR.S Compact 3-Channel Lens Control Receiver, and the MOTR.S Lens Motor for single-axis wireless lens control. Key features of each component, along with included accessories, are outlined below:

Teradek RT MOTR.S Lens Motor

  • Performance: 0.95nm max torque, 297 teeth per second.
  • Design: Compact and lightweight, redesigned aluminum chassis, reinforced sockets, improved rod clamp (15/19mm).
  • Upgrades: More compact and lightweight, redesigned chassis, reinforced sockets, new rod clamp.

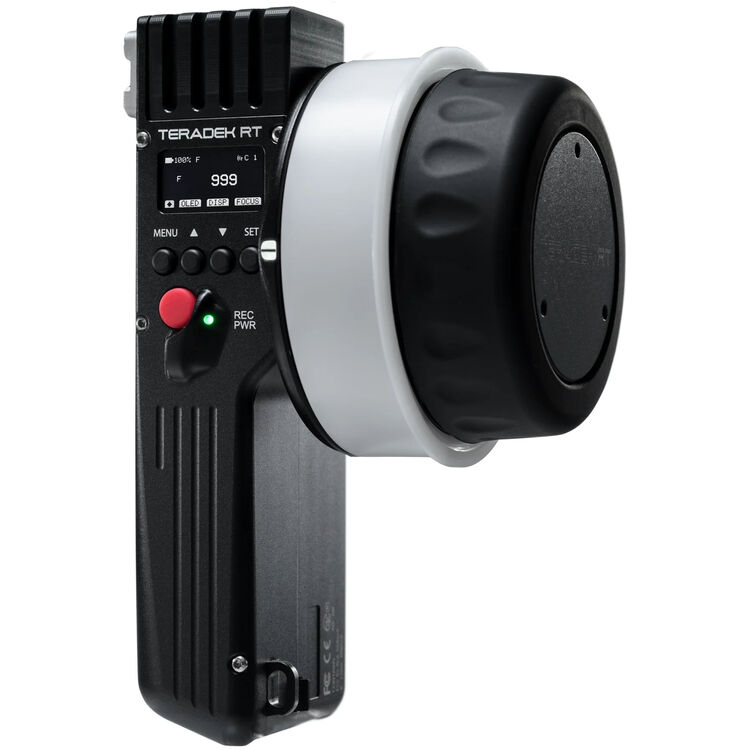

Teradek RT CTRL.1 Single-Axis Wireless Lens Controller

  • Control: Precise focus, iris, or zoom control.
  • Range: 5000' wireless range.
  • Interface: Large focus knob, start/stop button, OLED display.
  • Power: LP-E6 battery (approx. 36 hours).
  • Features: Multi-motor control, optional lens mapping firmware.

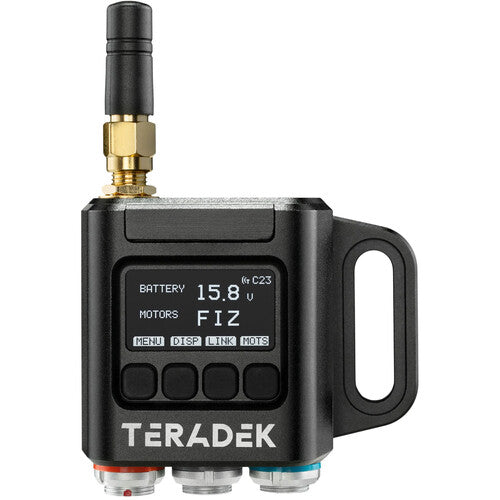

Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth

  • Control: 3-channel wireless focus, iris, and zoom control.
  • Wireless: FHSS technology, 5000' range.
  • Camera Control: 6-pin port for run/stop trigger.
  • Interface: Built-in OLED display, four buttons, Bluetooth control via Teradek RT app.
  • Power: 28V input range.
  • Features: Daisy-chain up to three motors, customizable antenna, SmallHD monitor overlays.

Included Accessories

  • Teradek 3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
  • Teradek 3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
  • Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
  • Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
  • Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers
  • Teradek White Disc for CTRL.1/CTRL.3 Controller
  • Teradek Pre-Marked Focus Ring (10", Imperial)
  • Teradek Pre-Marked Focus Ring (20", Imperial)
  • Teradek Pre-Marked Focus Ring (3.5', Imperial)
  • Teradek Pre-Marked Focus Ring (6', Imperial)
  • Teradek Pre-Marked Focus Ring (10', Imperial)
  • Teradek Pre-Marked Focus Ring (0.8', Metric)
  • Teradek Pre-Marked Focus Ring (1.6', Metric)
  • Teradek Pre-Marked Focus Ring (3.3', Metric)
  • Teradek Pre-Marked Focus Ring (6.6', Metric)
  • Teradek Pre-Marked Focus Ring (9.8', Metric)
  • Teradek Pre-Marked Iris Ring (1-32, Metric)

ID: 49827640279326

Read more
Specs
Specs
x
Specification Value
General
Maximum Speed 297 teeth per second
Gear Pitch 0.8 MOD
Maximum Torque 0.95 nm (Peak)
0.3 nm (continuous)
Connectors 2 x 0B 4-Pin
Power
Power Source Plug-In Power
DC Input Power 7 to 32 VDC
Operating Current 1 A (Standby)
2 A (Maximum)
Physical
Mounting 1x 15mm Rod Clamp
1x 19mm Rod Clamp
Color Black
Material of Construction Aluminum
Operating Conditions 32 to 82°F / 0 to 50°C
Dimensions 4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
Weight 6.5 oz / 184 g
Packaging Info
Package Weight 0.57 lb
Box Dimensions (LxWxH) 6.4 x 4.1 x 3"

ID: 49827640279326

Read more
In the box
In the box
x
  • Teradek RT MOTR.S Lens Motor
  • 0.8 MOD Gear
  • MOTR.S Bracket
  • Teradek RT CTRL.1 Single-Axis Wireless Lens Controller
  • Neck Strap
  • Mini-USB to USB Cable (18")
  • Hard-Shell Case with Custom Foam
  • Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
  • USB 2.0 Type-A to Type-C Male Cable (3.3')
  • Teradek RT Power 3-Pin D-Tap Cable
  • Straight 2.4 GHz Wi-Fi Antenna
  • MDR.S Bracket
  • Black Screw Socket Head (M2 x 6mm)
  • Screw Socket Cap (1/4"-20 x 3/8"-16)
  • Teradek 3-Pin to 2-Pin Power Cable for MDR.S Receiver (15.7")
  • Teradek 3-Pin to 3-Pin R/S Power Cable for MDR.S Receiver (15.7")
  • Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (8")
  • Teradek 4-Pin Straight-Angle Motor Cable for RT MOTR.X Brushless Lens Motor (16")
  • Teradek Monitor Bracket for CTRL.1/CTRL.3 Hand Controllers
  • Teradek White Disc for CTRL.1/CTRL.3 Controller
  • Teradek Pre-Marked Focus Ring (10", Imperial)
  • Teradek Pre-Marked Focus Ring (20", Imperial)
  • Teradek Pre-Marked Focus Ring (3.5', Imperial)
  • Teradek Pre-Marked Focus Ring (6', Imperial)
  • Teradek Pre-Marked Focus Ring (10', Imperial)
  • Teradek Pre-Marked Focus Ring (0.8', Metric)
  • Teradek Pre-Marked Focus Ring (1.6', Metric)
  • Teradek Pre-Marked Focus Ring (3.3', Metric)
  • Teradek Pre-Marked Focus Ring (6.6', Metric)
  • Teradek Pre-Marked Focus Ring (9.8', Metric)
  • Teradek Pre-Marked Iris Ring (1-32, Metric)
  • Pre-Marked Focus Ring (14", Imperial)
  • Canon LP-E6 Lithium-Ion Battery (1600mAh)
  • Canon LP-E6 Charger
  • Large Hard-Shell Case with Custom Foam
