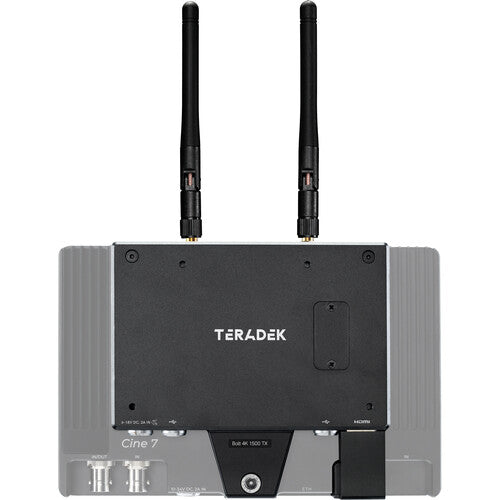

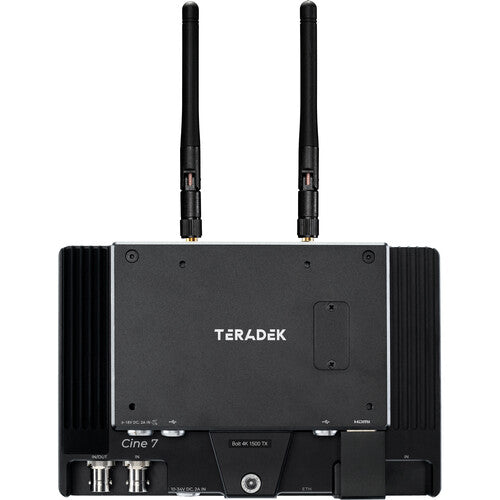

Wirelessly transmit up to 4K video and wirelessly control your cinema camera from a touchscreen monitor from up to 1500' away with the Bolt 4K Monitor Module 1500 TX from Teradek. The transmitter module mounts onto the back of a SmallHD Smart 7 monitor, including the Cine 7, Indie 7, or 702 Touch monitors, and can wirelessly transmit up to 4K video to any Bolt 4K receiver. You can wirelessly control on supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with installed camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay.

The monitor inputs up to 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support. The transmitter module supports transmission of the video signal as well as camera control information to any Bolt 4K series receiver as well as the Bolt 4K RX monitor module. It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters. Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.

It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 4, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.

Key Features

• Cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module
• Mounts on the back of a SmallHD Smart 7 monitor such as the Cine 7, Indie 7, or 702 Touch monitor
• Compatible with ARRI cameras with separate license and will also be available for the RED KOMODO and Sony VENICE with future license availability
• The camera control option requires a specific camera control license to be purchased separately
• Wirelessly transmit up to 4K30 video up to 1500' away
• Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
• Can coexist with Wi-Fi and 5 GHz cordless phones
