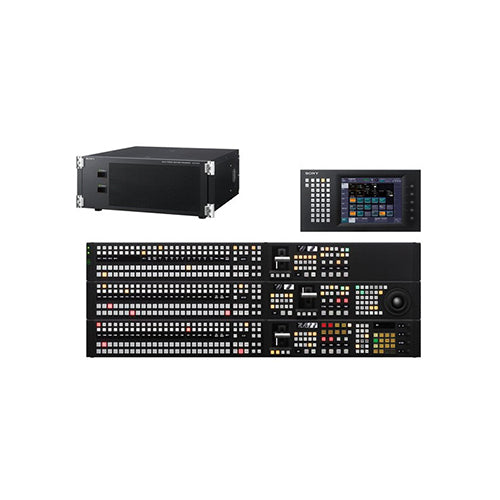

The Sony MVS-6530PAC HD / SD Multi-format Switcher with 3 M/E Control Panel from the MVS-6500 Switcher series inherits the features and technologies from the MVS-X Switcher series. The MVS-6530PAC model is available in a 3 M/E configuration. It features high-performance keyers with chroma-key functionality and resizers, color correction, and multi-viewer outputs offering balance between size and specification. The MVS-6530PAC switcher is ideal for production that requires 48 inputs / 32 outputs and 3 M/E. It is equipped with 16 keyers, allowing sophisticated layering from each M/E. Separate from the main fader, each keyer has its own auto-transition controls, which allow users to insert or remove keys on an individual basis with independent wipes, DME wipes, and dissolves. For further flexibility, each keyer in every M/E also offers chroma-keying and color vector keying, eliminating restrictions of selectable key types. These fully featured M/Es allow total interoperability of effects on all M/Es. The resizer function allows simple 2.5D DME effects to be supported through 8 out of 16 keyers.

A variety of effects such as mosaic and defocus can be applied to resized images. All these effects can be created without the use of an external DME, bringing great advantages for both simple operation and minimal system cost. The MVS-6530PAC switcher possess a rich feature set including a 2-channel multi-viewer output, with a choice of 10- or 4-way split display, saving space on additional monitoring plus offering an easier set-up. It also features an AUX transition capability that allows users to mix transitions using AUX output, and ICP-6530 control panels that include color cross-point patterns ideal for grouping and high-visibility OLED source-name displays. These help the operator stay informed at all times of cross-point, button assignments, and source type group.

MVS Series SD / HD switcher with 48 inputs and 32 outputs

The MVS-6530 production switcher is ideally suited for medium-size productions. The switcher comes with sophisticated capabilities such as 3x mix effects (M/E), 4x keyers per M/E, each with the MVS high-performance chromakey, 8x keyers in P/P bank, 2x internal channels of DME, 2.5D resizers, color correction, and more. With the standard multi-viewer output, you save space on additional monitoring, enabling a reduction in your total system cost.

Advanced control panel

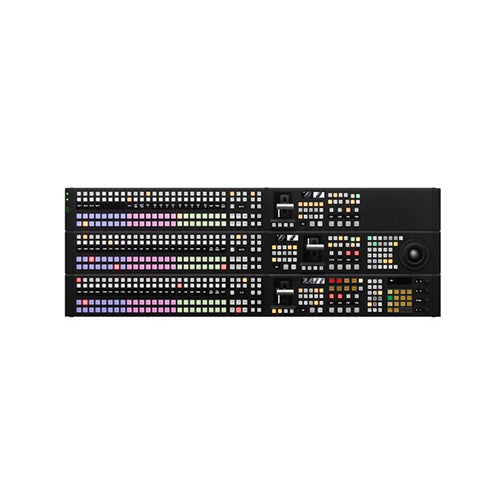

The control panel incorporates an attractive black design with OLED mnemonic displays for optimal visibility. Its operation is as user-friendly and intuitive as you expect of the MVS family. The self-contained 4RU processor offers simple configuration, and is a logical choice for small production facilities that have limited installation space but refuse to compromise on quality.
