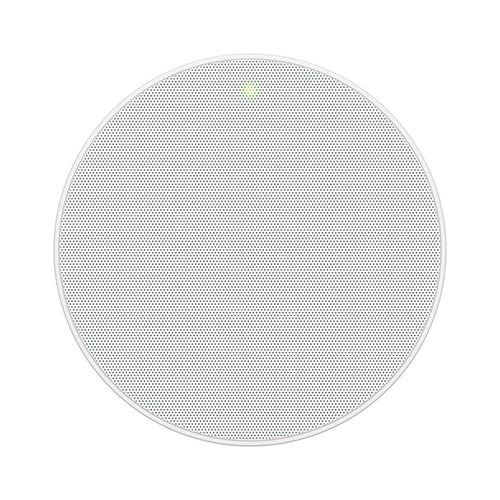

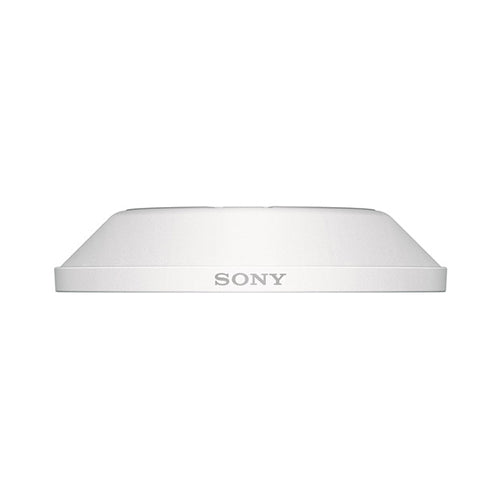

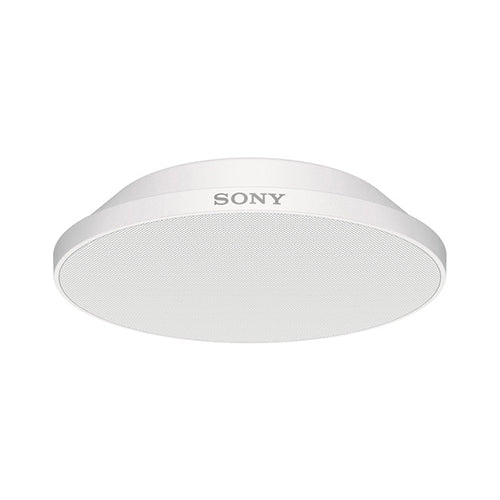

MAS-A100 Beamforming Microphone A hands-free lecture and presentation solution

Introducing Sony’s beamforming ceiling microphone with advanced speech reinforcement technology enabling truly hands-free lectures and presentations.

Hands-free ceiling beamforming microphone with speech reinforcement capability

The MAS-A100 is a state-of-the-art speech reinforcement* and recording solution. Attaching and positioning lavalier microphones is time-consuming, and handheld microphones restrict movement. However, the Beamforming Microphone is simply affixed to the ceiling, then ready to use – leaving the orator location-free, hassle-free and hands-free to focus on presenting.

Dedicated channels for speech reinforcement and recording

Our comprehensive solution employs audio volume stabilisation and clear audio processing to produce sharp recordings. The MAS-A100 has two channel outputs. The dual output channel enables speech reinforcement and recording simultaneously. The dedicated rec channel records with a wider capture range and optimal intelligibility – perfect for lecture capture.

Simple installation and management

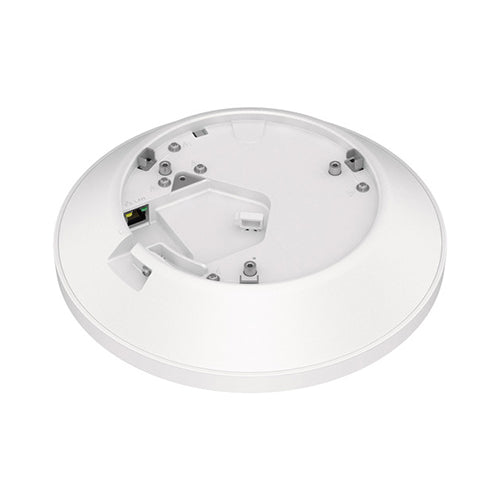

Supporting Dante® and PoE, MAS-A100 links with third-party systems via a single cable connection. Auto-calibration streamlines system configuration, and settings can easily be adjusted via the network using free MASM-1 management software. With simple settings, central management and no need to monitor battery use, MAS-A100 is a convenient classroom audio solution.

Beamforming and Intelligent Feedback Reducer

The integration of beamforming technology and our market-leading Intelligent Feedback Reducer produces clear audio with hands-free speech reinforcement, leaving the presenter hands-free. Sony’s high-performance digital signal processing and unique algorithms extract speech sound while supressing unwanted feedback (howling).

Noise reduction Our Beamforming Microphone incorporates advanced noise reduction technologies to minimise ambient noise. Stationary background noise arising from projectors and air conditioning are automatically detected and reduced to achieve clear sound resulting in better intelligibility and, ultimately, better understanding for listeners. In addition to this, the Ambient Noise Filter feature automatically detects and filters out intermittent and distracting sounds, such as the typing of a keyboard, click of a mouse or the turning of pages. (Version 1.1) Automatic gain control

The MAS-A100 has a useful inbuilt volume normalisation feature to maintain stable volume regardless of the distance between the presenter and the microphone, leaving the presenter free to move around the space without the audio quality deteriorating. Automatic gain control adjusts the strength of the signal received to ensure clear and consistent sound for easy listening.

Automatic calibration

The Beamforming Microphone optimises the parameters of audio processing for speech reinforcement automatically. The microphone generates a test signal, which is captured by the loud speakers. The system then calculates and configures the parameters for speech reinforcement. This calibration is required only on initial installation, minimising time consuming set-up and system maintenance.

1. Generate test signal 2. Capture test signal from loud speakers 3. Calculate and configure optimal parameters for speech reinforcement
