A new addition to the DHY-04 range is the ability for the DHY-04GT, a 1U rackmount twin telephone hybrid version, to be used on a GSM cellular (mobile) phone network instead of a telephone (POS) line. The DHY-04G can accept a SIM card in the rear panel slot and by connecting a suitable GSM antenna, the DHY-04G can receive and make high quality broadcast calls over the cellular network, converting the GSM call to the 4 wire audio signal to and from a connected mixing console. The GSM module used in the DHY-04G is quad-band GSM, so it can take and make calls on any 2G network.
Ideal for studios in remote locations, for OB vans and trucks on the move, and in emergency situations where a telephone landline can’t be guaranteed, the DHY-04G offers outstanding performance.

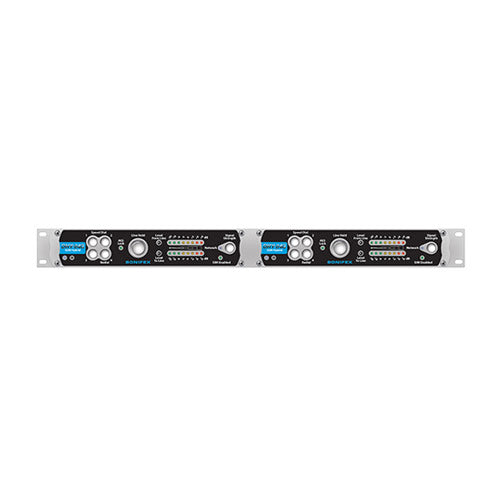

The DHY-04GT has all features of the DHY-04 (read cellphone/mobile features instead of telephony features in the listed bullet point specification) together with some additional front panel indicators. There are two LEDs, one for SIM enabled and one for GSM Network availability. Additionally there is a push button which allows the GSM signal level to be displayed on the meter LEDs.
Audio Specification |
|||
Analogue Audio I/O |
|||
| Input Impedance - Line Mode (Clean Feed): | 10kΩ balanced 0dB | ||
| Input Impedance - Conferencing: | 10kΩ balanced 0dB | ||
| Input Impedance - Microphone Mode: | 2kΩ balanced | ||
| Input Level Gain Range: | +6dB, 0dB, and -6dB adjusted by 3-position front panel switch, +10dB jumper | ||
| Microphone Level Gain Preset: | From 65dB to 35dB | ||
| Maximum Input Levels: | Line +26dBu, mic -24dBu | ||
| Clean Feed Limiting Input: | -4dBu for CTR21 setting, other values available * | ||
| Output Impedance - Line Out: | 50Ω balanced floating 0dBu | ||
| Output Impedance - Conference/Record: | 50Ω balanced floating 0dBu | ||
| Output Level Gain Range: | +6db, 0dB, and -6dB adjusted by 3-position front panel switch | ||
Digital Audio I/O |
|||
| Input Impedance: | 110Ω ±20% balanced | ||
| Output Impedance: | 110Ω ±20% balanced | ||
| Sample Frequency Range: | 30 - 100kHz (i.e. including 32kHz, 44.1kHz, 48kHz, 64kHz, 88.2kHz & 96kHz) | ||
| Signal Level: | 2V/7V peak to peak min/max | ||
| Analogue Input Level for Full Scale Digits: | +18dBU | ||
Telephone Line |
|||
| Rejection Ratio: | 80-88dB on complex waveforms, reference peak level of 0dBFS | ||
| Ring Detector Sensitivity: | Off, 2, 4 or 6 rings | ||
GSM Connection |
|||
| Module Type: | Quad-Band EGSM 850 / 900 / 1800 /1900MHz | ||
| Output Power: | Class 4 (2W) @ 850 / 900MHz, Class 1 (1W) @ 1800 / 1900MHz |
||
| Sensitivity: | -107 dBm (typ.) @ 850 / 900MHz, -106 dBm (typ.) @ 1800 / 1900MHz |
||
| Approvals: | Fully type approved conforming to R&TTE CE, GCF, FCC, PTCRB, IC, Anatel | ||
Power Supply |
|||
| Power to DHY-04G, GS & GT | Universal 12W power supply: 90 to 250V AC; 47-63Hz; fused 1A | ||
| * These values are dependent on the actual country setting selected on the DHY-04 | |||

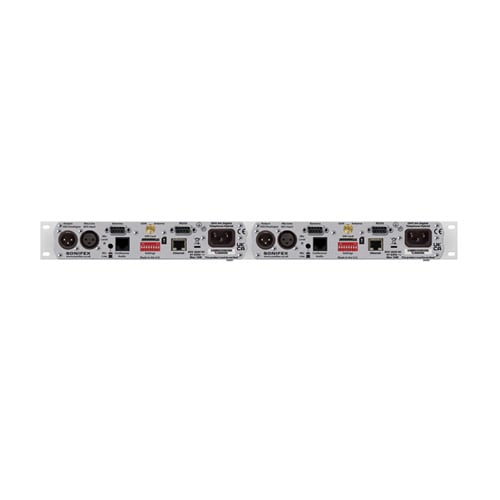

Connections |
|||
| Mic/Line/AES-EBU Input: | XLR 3 pin female, with push-button mic/line selection | ||
| Line/AES-EBU Output: | XLR 3 pin male | ||
| GSM Antenna | SMA socket | ||
| Conferencing or Record Audio: | RJ45 socket | ||
| Remotes: | 9-way D-type socket | ||
| Ethernet: | RJ45 socket | ||
| RS232 Serial: | 9-way D-type socket | ||
| Power: | IEC mains (CEE22) | ||
Accessories |
|||
| Order Code | Description | ||
| DHY-04GCON | Front Panel Conversion Kit, DHY-04GS to DHY-04G | ||
| DHY-04GSCON | Front panel conversion kit, DHY-04G free standing to DHY-04GS 19” (48cm) rack-mount front | ||
| DHY-04GTCON | Front panel conversion kit, DHY-04G or DHY-04GS, to DHY-04GT 19” (48cm) rack-mount front | ||
Physical Specification |
||||||
| Order Code | Description | Height | Width | Depth* | Total Nett Weight |
Total Gross Weight |
| DHY-04G | Automatic digital GSM hybrid TBU, free standing | 1.8” | 8.6” | 6.9” | 3lbs | 4.8lbs |
| DHY-04(G) boxed | 6cm 2.4” |
34cm 13.4” |
27cm 10.6” |
|||
| DHY-04GS | Automatic digital GSM hybrid TBU, rack mounted | 1.8” (1U) | (19” rack width) | 6.9” | 3.2lbs | 5lbs |
| DHY-04(G)S boxed | 6.8cm 2.7” |
58.8cm 23” |
27cm 10.6” |
|||
| DHY-04GT | Twin automatic digital GSM hybrid TBU, rack mounted | 1.8” (1U) | (19” rack width) | 6.9” | 6.2lbs | 9.7lbs |
| DHY-04(G)T boxed | 6.8cm 2.7” |
58.8cm 23” |
27cm 10.6” |
|||
| *Depth is measured from the front to the end of the connectors fitted to the back of the unit. | ||||||
