SmallRig Shoulder Kit for Sony FX6

SmallRig 3459 Overview

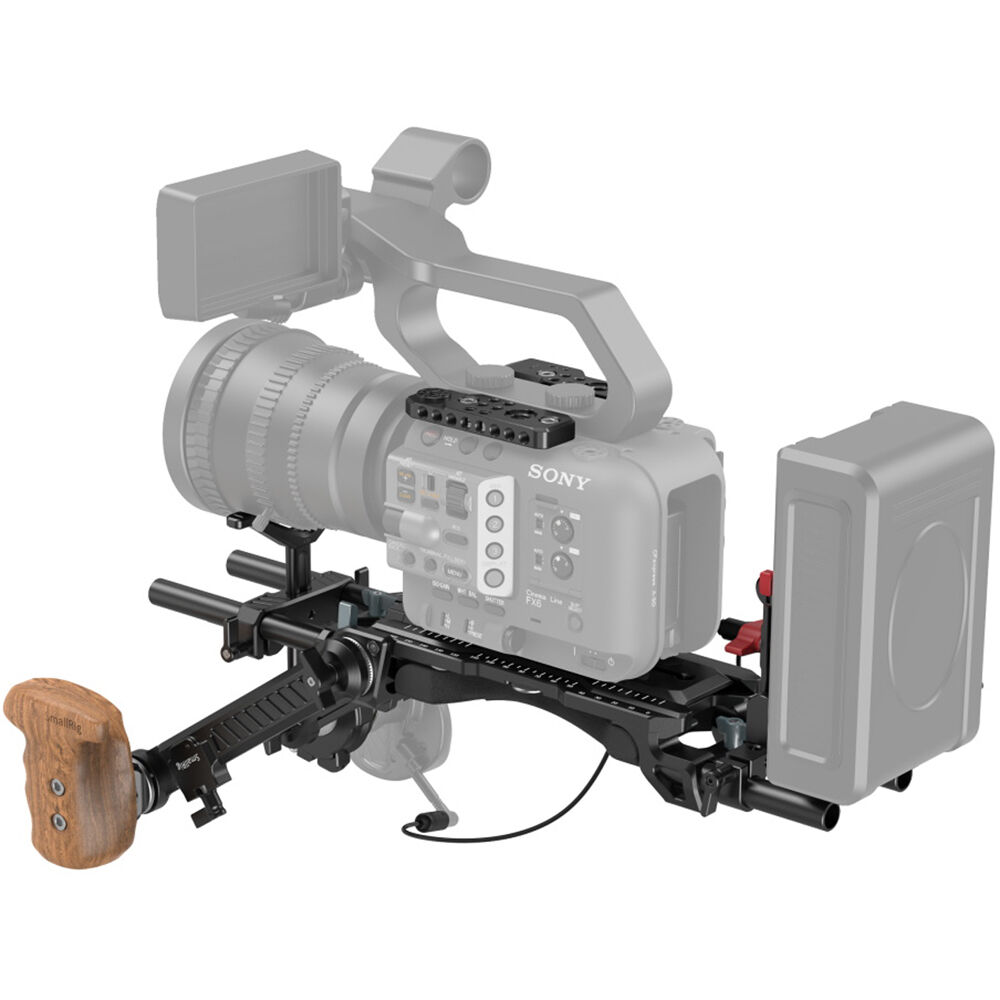

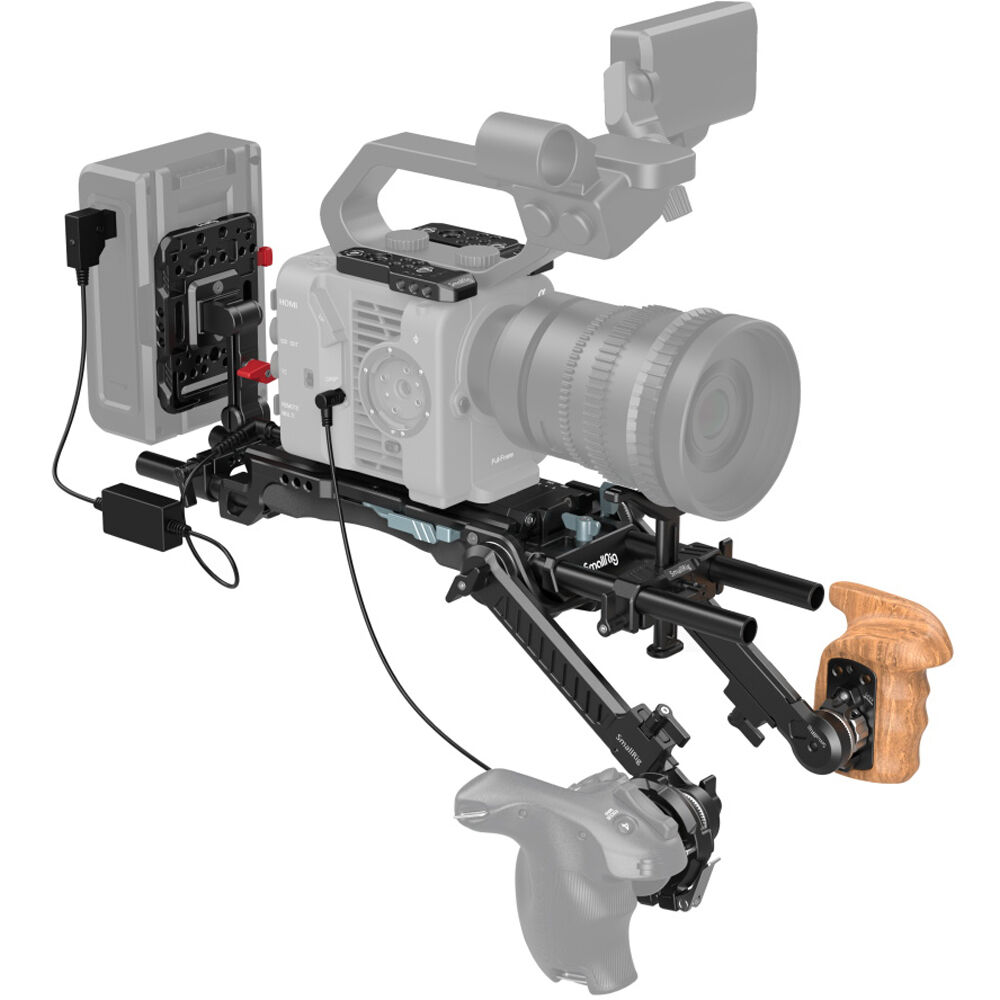

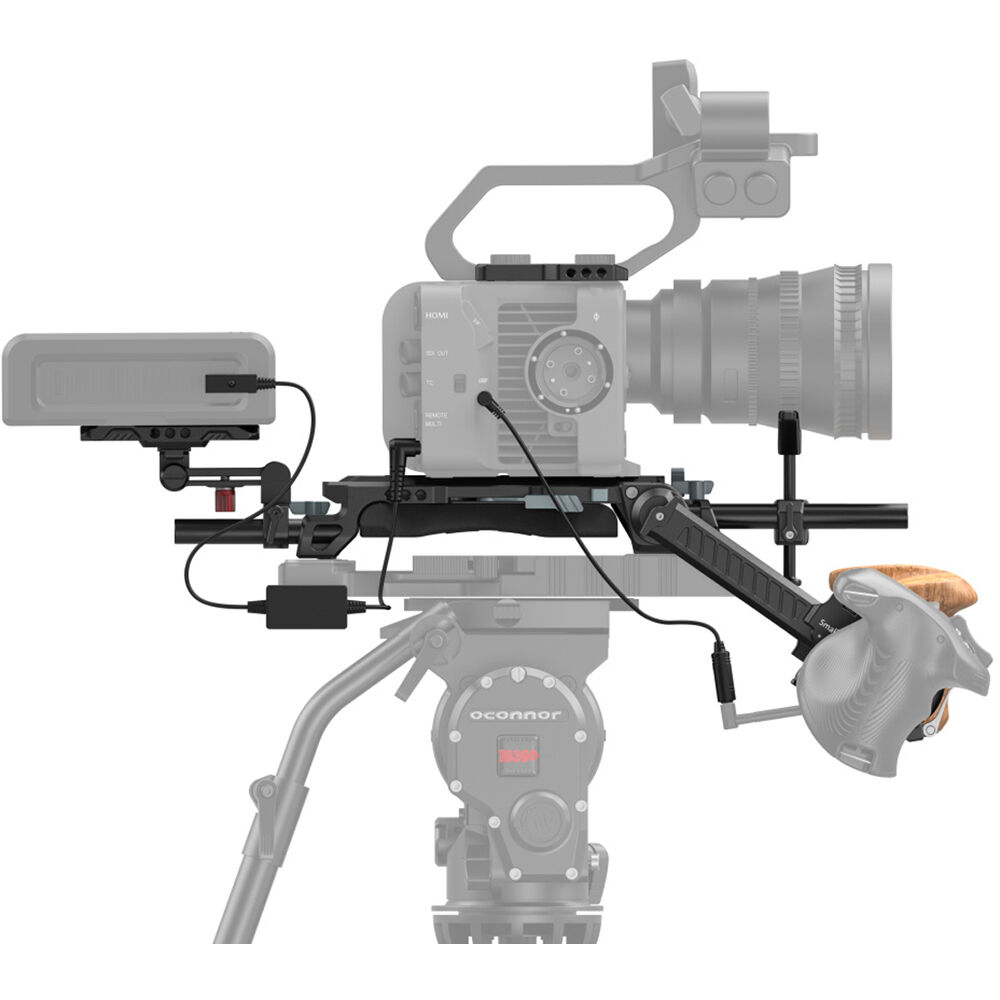

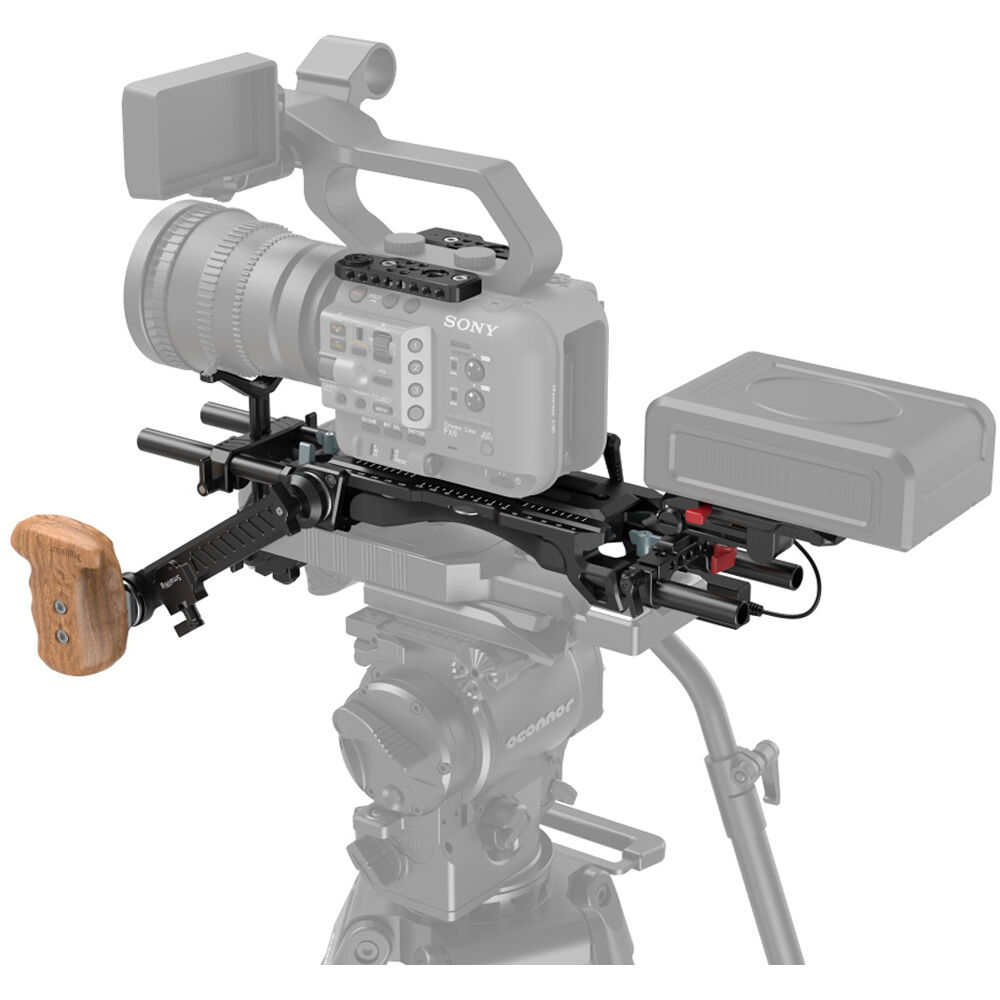

The modular Shoulder Rig Kit from SmallRig operates your Sony FX6 camera with multiple accessories on your shoulder.

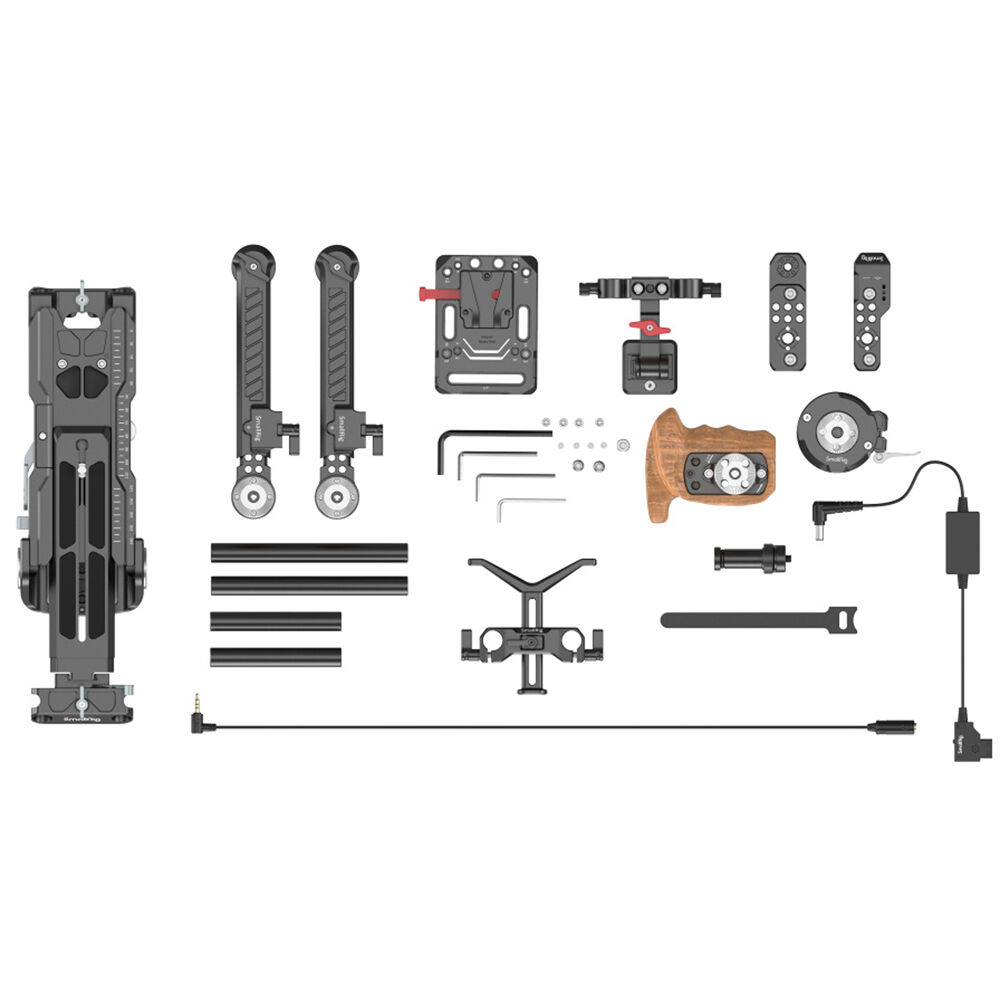

The kit includes a handgrip adapter, a LANC extension cable, two handgrip extension arms, 15mm rods, a lens support, a shoulder pad, a top plate, an LCD adapter, a wooden side grip, a V-mount battery plate, and a D-Tap power cable.

The camera mounts onto the shoulder pad's baseplate, and the two sets of 15mm rods mount onto the plate. All the components mount onto the 15mm rods, and each item can be easily added or removed as needed. The left-side handgrip mounts onto the end of the left extension arm, and the right extension arm allows the original FX6 handgrip to be relocated using the handgrip adapter and LANC extension cable. A V-mount battery with a D-Tap port can be mounted onto the V-mount plate, and the D-Tap cable can be used to power the camera.

Following are the items in the kit

SmallRig Handgrip Rosette Adapter for Sony FX6

The Handgrip Rosette Adapter from SmallRig enables you to relocate your original Sony FX6 handgrip when using an extension arm or compatible camera cage. It can also be used to add a rosette-based accessory to the FX6's rosette mount. It secures and locks onto the camera using a cam lever.

SmallRig 1870 Adjustable Extension Arm with Two ARRI Rosettes

Position your handgrip at just the right length with the 1870 Adjustable Extension Arm from SmallRig. The arm provides 6.6 to 10.2" of added length for an ARRI rosette-mounted handgrip.

SmallRig 15mm Aluminum Rod (Pair, Black, 4")

Lightweight yet durable, this pair of 4" black 15mm Aluminum Rods from SmallRig is designed for mounting accessories on your camera rig.

SmallRig 15mm Aluminum Rod (Pair, Black, 6")

Lightweight yet durable, this pair of 6" black 15mm Aluminum Rods from SmallRig is designed for mounting accessories on your camera rig.

SmallRig 15mm LWS Universal Lens Support with 2.1" Vertical Adjustment

Add support for longer lenses with this 15mm LWS Universal Lens Support with 2.1" Vertical Adjustment from SmallRig, which is compatible with 15mm LWS rod systems.

SmallRig Shoulder Pad Pro

The baseplate features include front and back 15mm LWS rod support, ARRI-style rosettes on both sides, and multiple 1/4"-20 accessory threads. The bottom of the plate features a V-lock-style VCT-14 wedge to mount onto an optional VCT plate.

SmallRig Top Plate for Sony FX6

The two-piece aluminum top plate installs on top of the FX6 using the four included screws and fits on either side of the camera's original top handle, so you don't have to remove it for installation.

SmallRig Mounting 15mm Rod Clamp Adapter for Sony PXW-FS5 Camcorder LCD Screen

The adapter attaches to the camera's top handle with a 1/4"-20 thumbscrew and provides a 15mm rod so you can relocate the LCD screen and free up space to add additional accessories onto the main handle.

SmallRig Left-Side Wooden Grip with ARRI Rosette

This revamped grip can now be adjusted vertically and at three angles using just two screws and the Allen wrench tucked in the bottom of the grip.

SmallRig 19.5V Regulated D-Tap Power Cable for Sony PXW-FX9

This 19.5V Regulated D-Tap Power Cable from SmallRig converts the voltage from a D-Tap source to the 19.5V required to power your PXW-FX9 camera. The cable measures 15.7" in length and enables you to power your camera using a professional, high-capacity V-mount or Gold mount battery with a D-Tap output. If you insert the D-Tap end the wrong way, an LED will light up red to indicate the wrong polarity.
