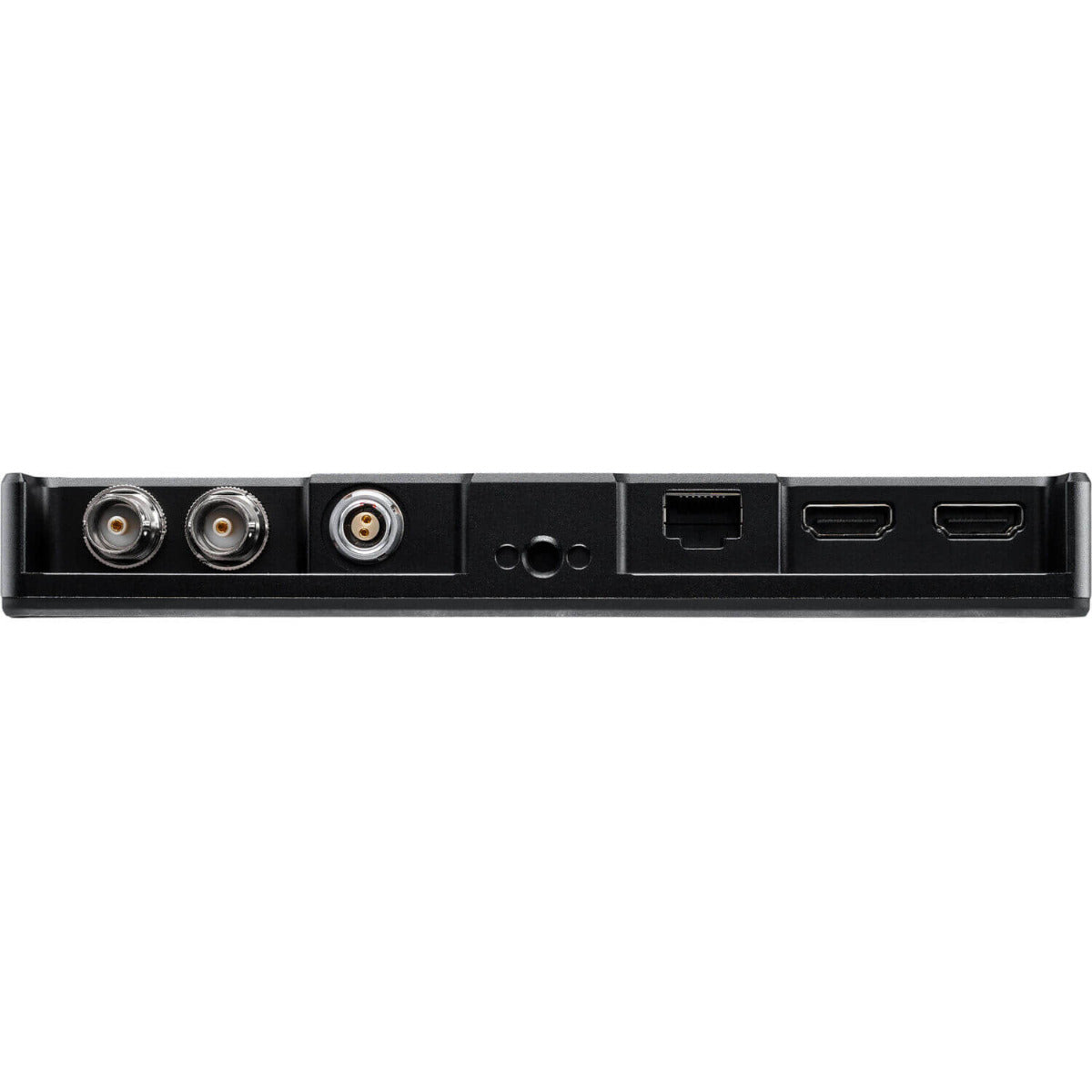

SmallHD Cine 7 Touchscreen On-Camera Monitor featuring a sharp 7" display suitable for indoor or outdoor use, the Cine 7 monitor supports up to UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output. The monitor also supports cross-conversion from HDMI to SDI and from SDI to HDMI.

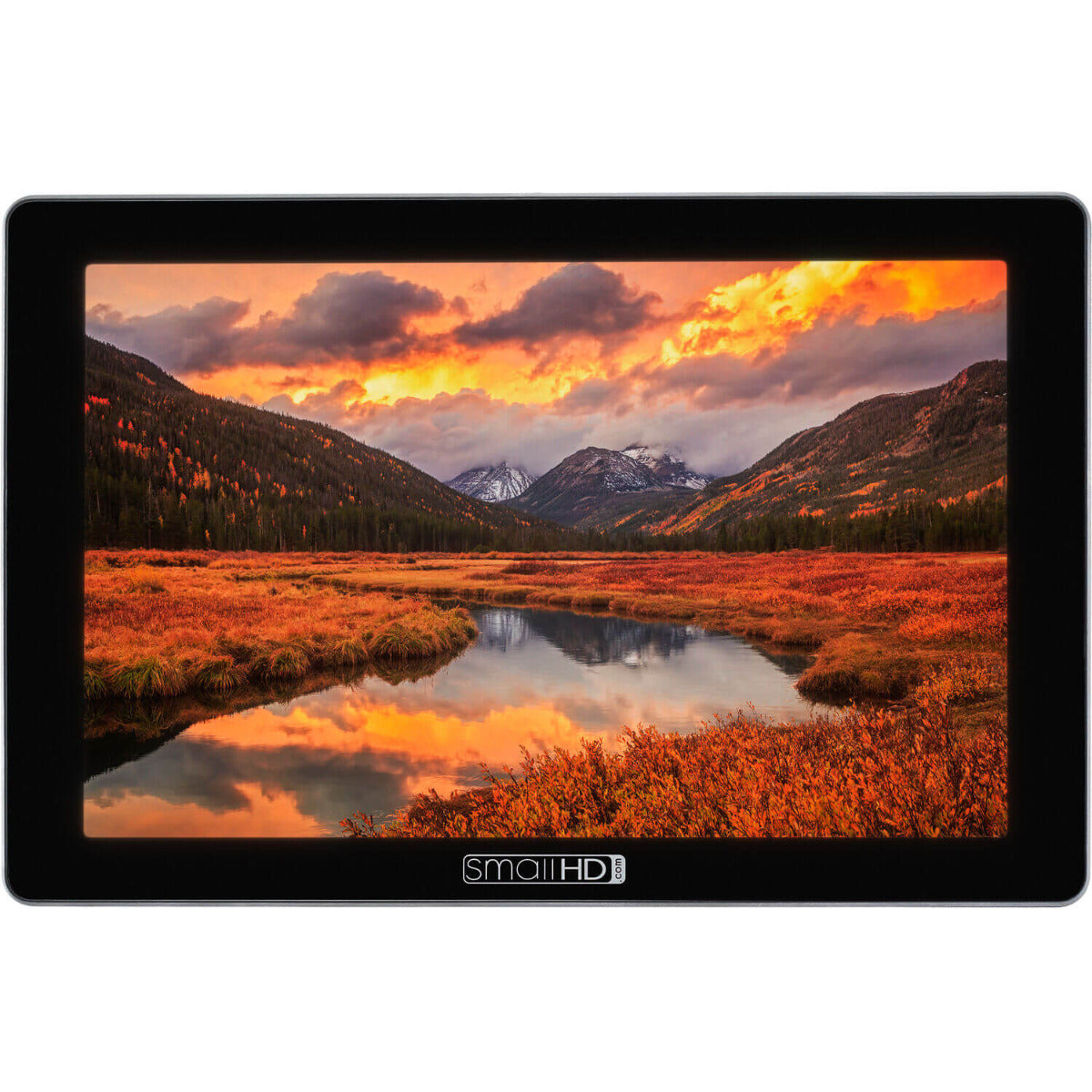

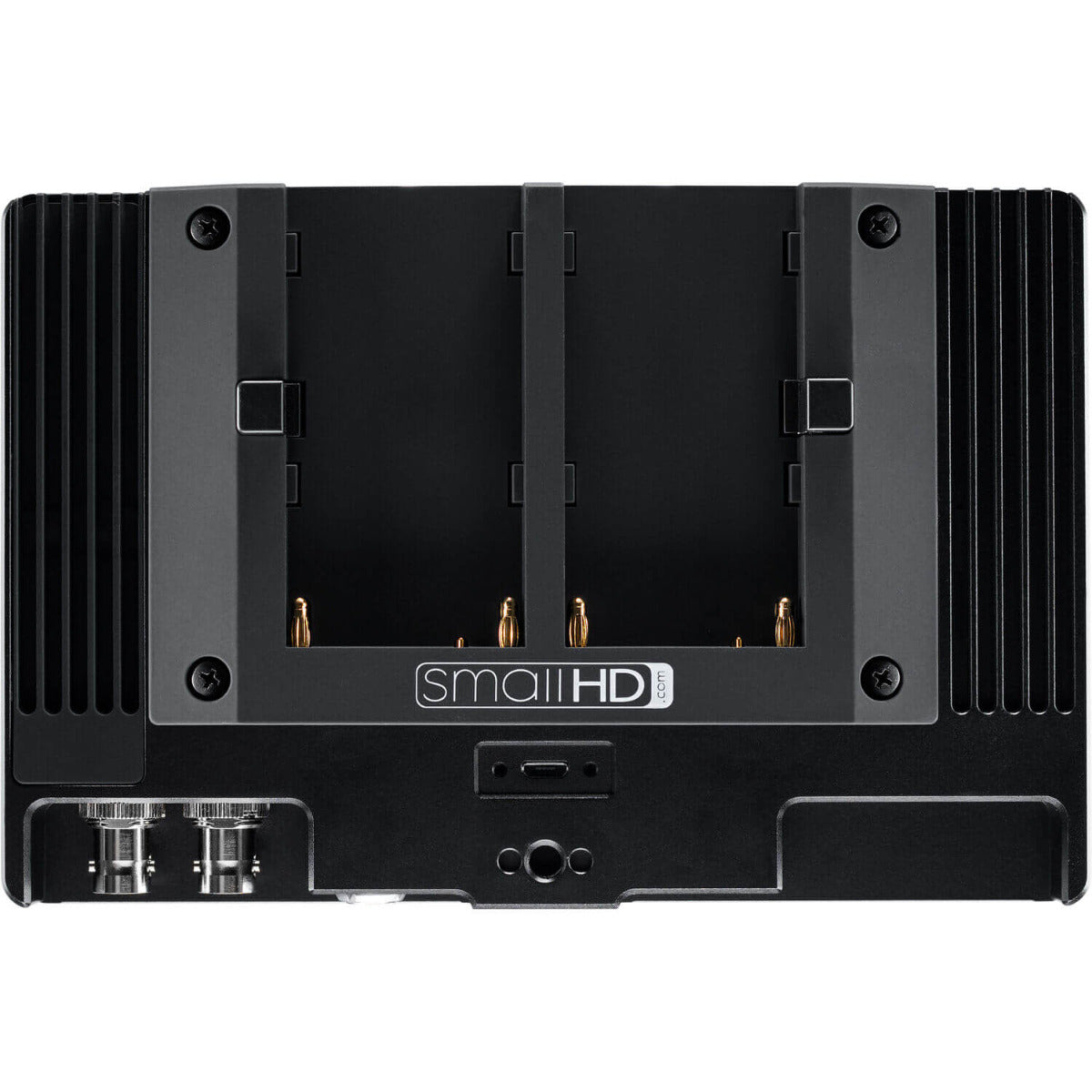

The Cine 7 features a bright 1800 cd/m², 322 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive PageOS 4, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor, an L-series mount battery plate accepts two L-series batteries for powering your monitor.

Key Features

• Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness
• Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
• Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs
• HDMI-to-SDI and SDI-to-HDMI cross conversion is supported
• Uses SmallHD PageOS 4 to organize and save customized functions and settings pages
• The included dual L-series battery plate allows you to hot-swap batteries as necessary, and the plate itself is swappable for other battery plates

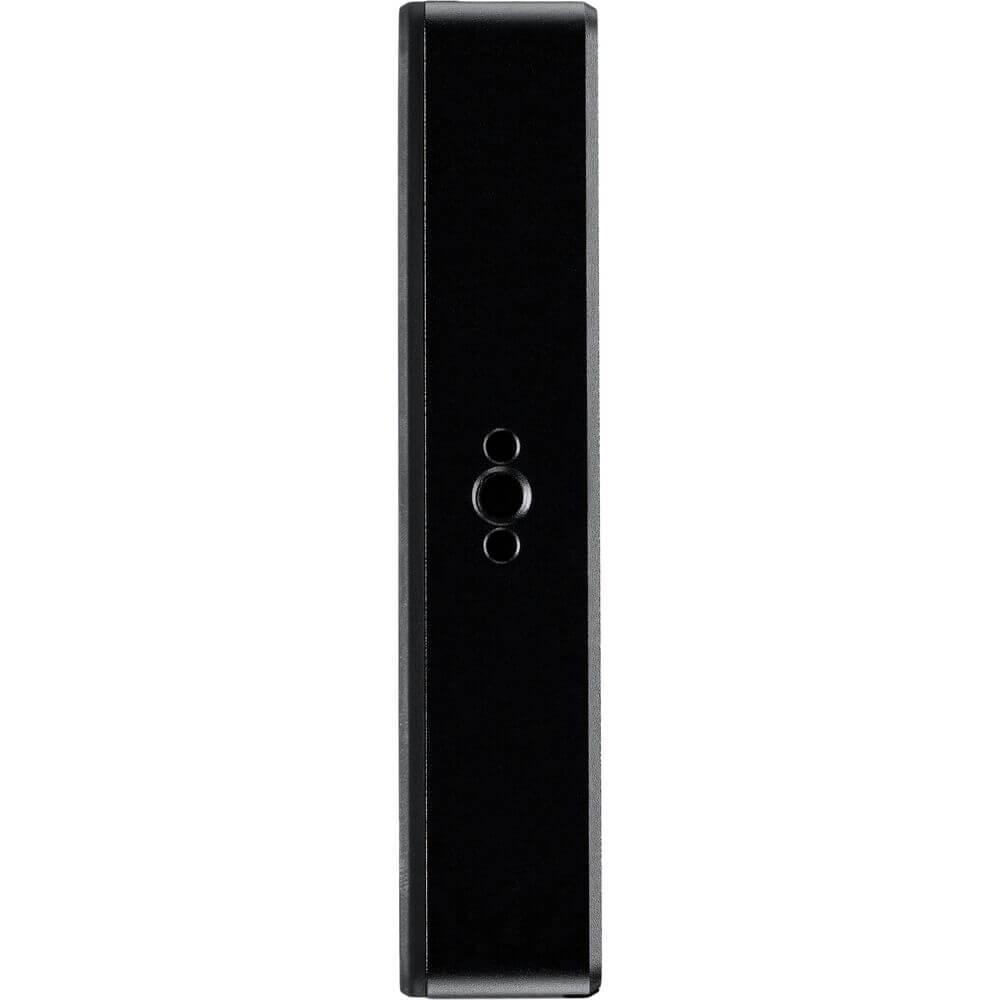

• Four 1/4"-20 mounting points on top, left, right, and back

RED Control Features

• Run/stop
• Color controls
• Exposure controls
• Status
• Color temperature
• Video format
• Playback
• Shutter
• Menu control

Software Features

• Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch-zoom

• DSLR scale: Canon 5D Mk II and Canon 7D

• Custom scale: Underscan only
• Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
• Image flip: Auto and manual
• Image rotation: Auto and manual
• Color focus assist: Adjustable style and intensity
• Peaking: Adjustable intensity
• False color: Spectrum, ARRI-style, and customizable
• Dual zebra: Customizable
• Waveform: Luma and RGB, customizable with region of interest highlighting
• Vectorscope: Yes
• RGB parade: Customizable
• Histogram: Luma and RGB
• Image capture: With a dedicated button and image gallery
• Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
• LUT import: Via SD card or USB storage device
• Image overlay: Opacity slider and blink setting
• Audio meters: HDMI and SDI up to 8 channels
