SmallHD Cine 13 UHD 4K High-Bright Monitor

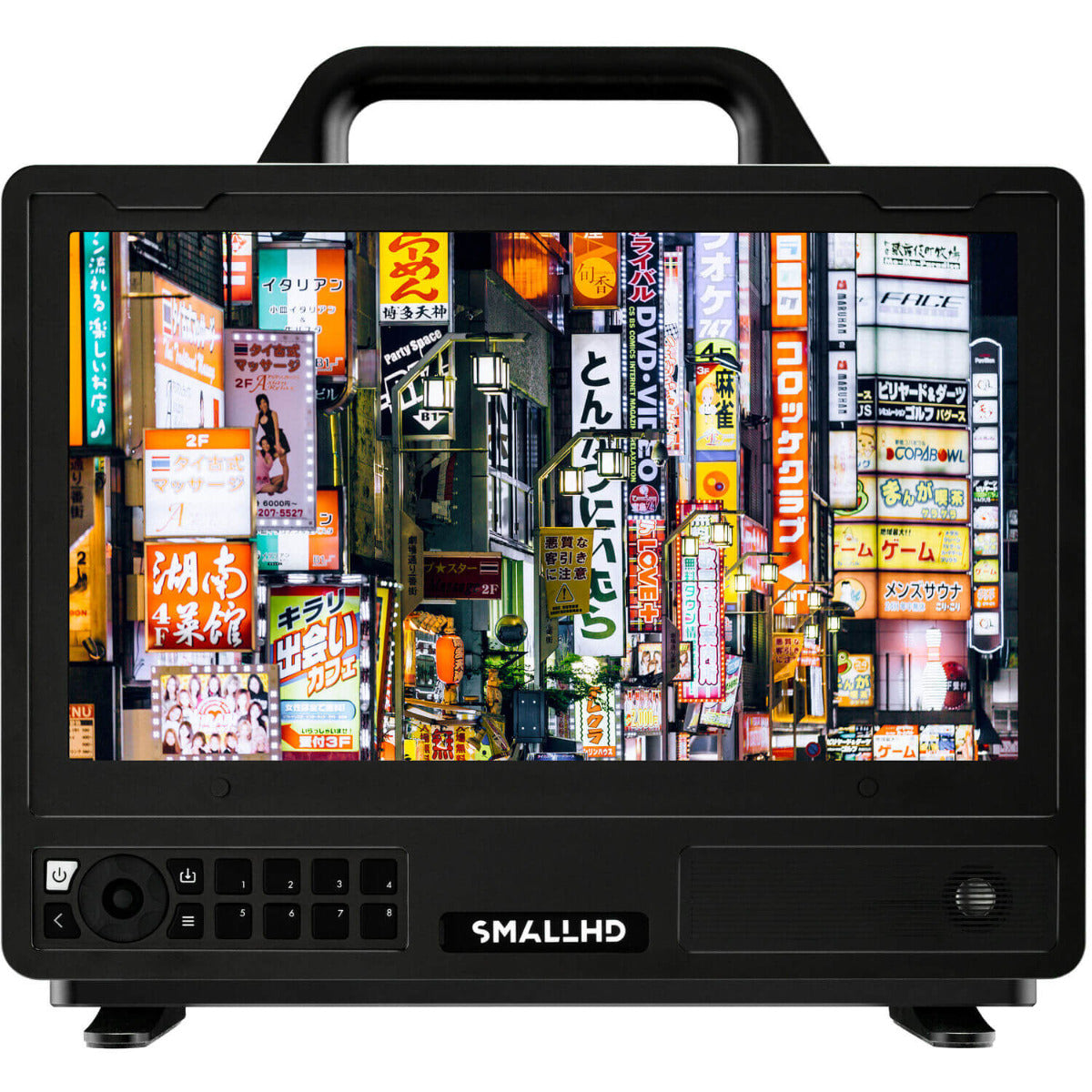

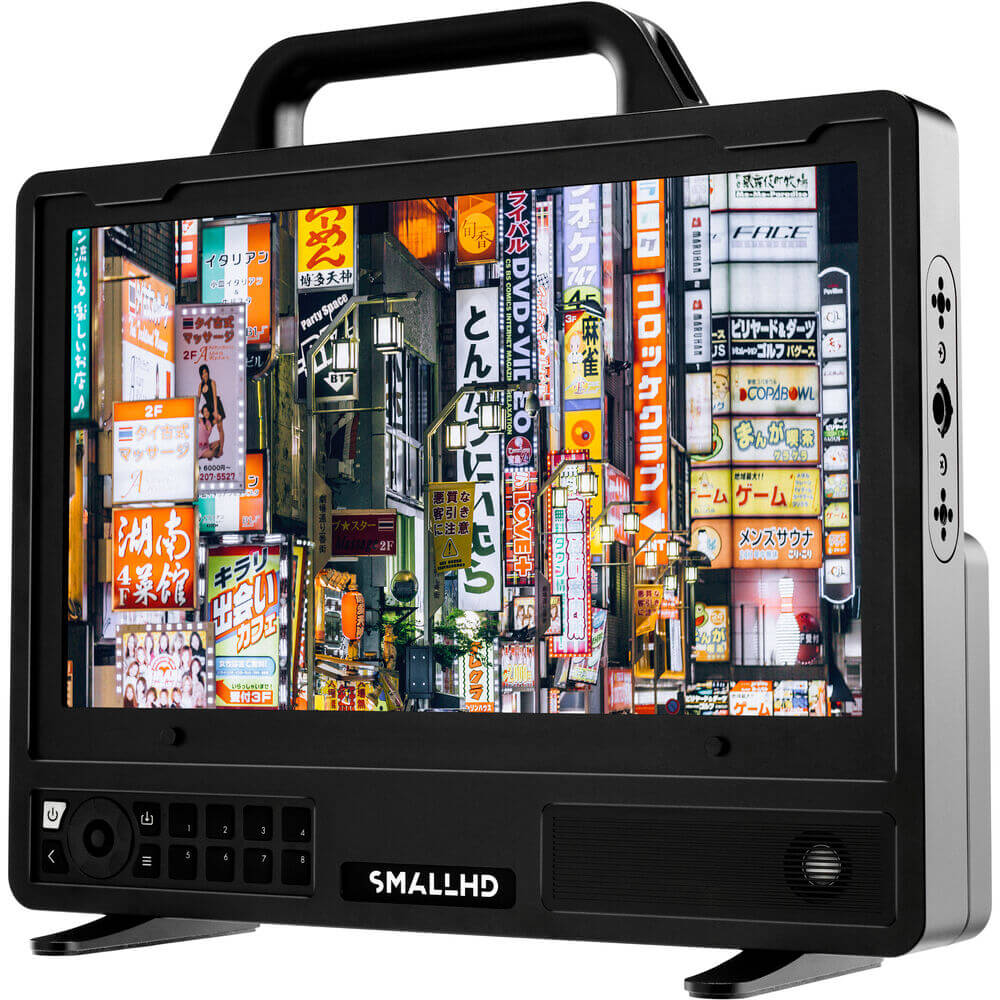

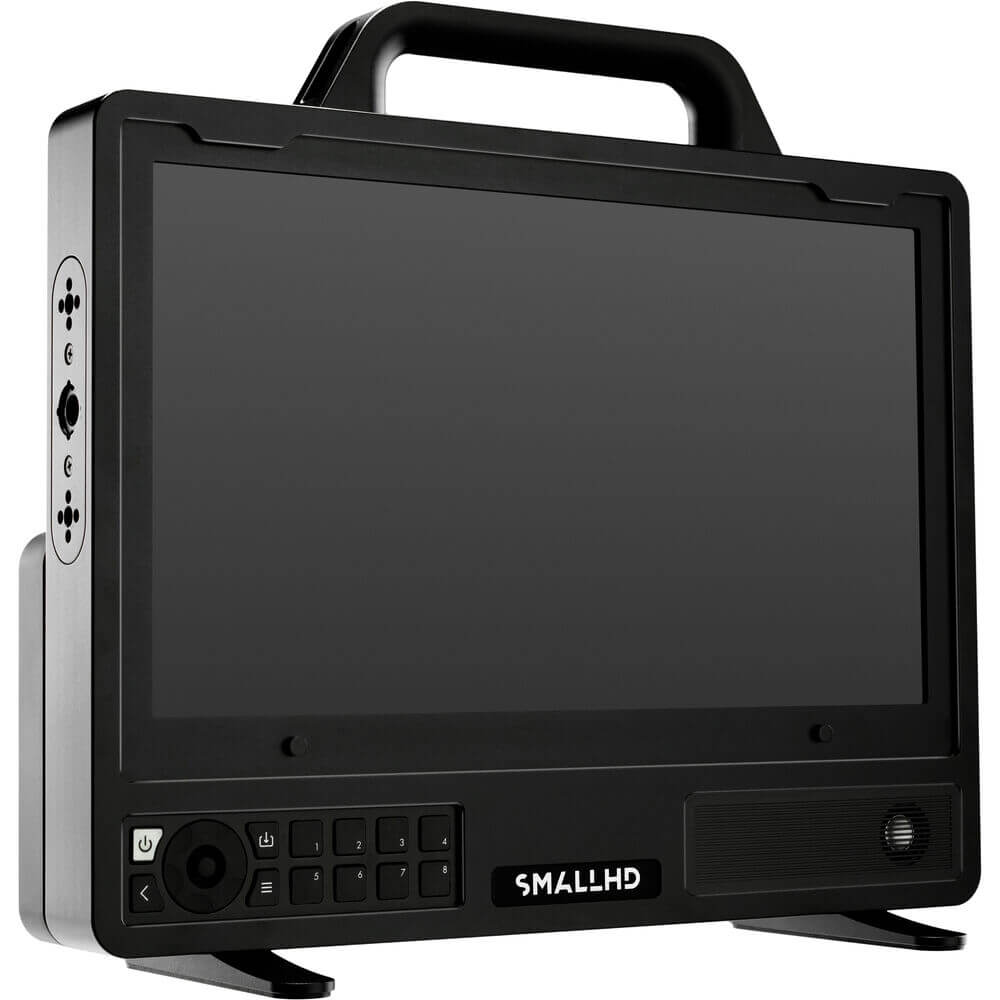

SmallHD Cine 13 UHD 4K High-Bright Monitor featuring the latest PageOS 4, and the monitor provides a crisp 13.3" display size, 3840 x 2160 resolution, with 10-bit DCI-P3, 100% Rec.709 color intelligence, 1500 cd/m² brightness, and a 1300:1 contrast ratio, all the features fit for viewing UHD 4K video footage in any environment.

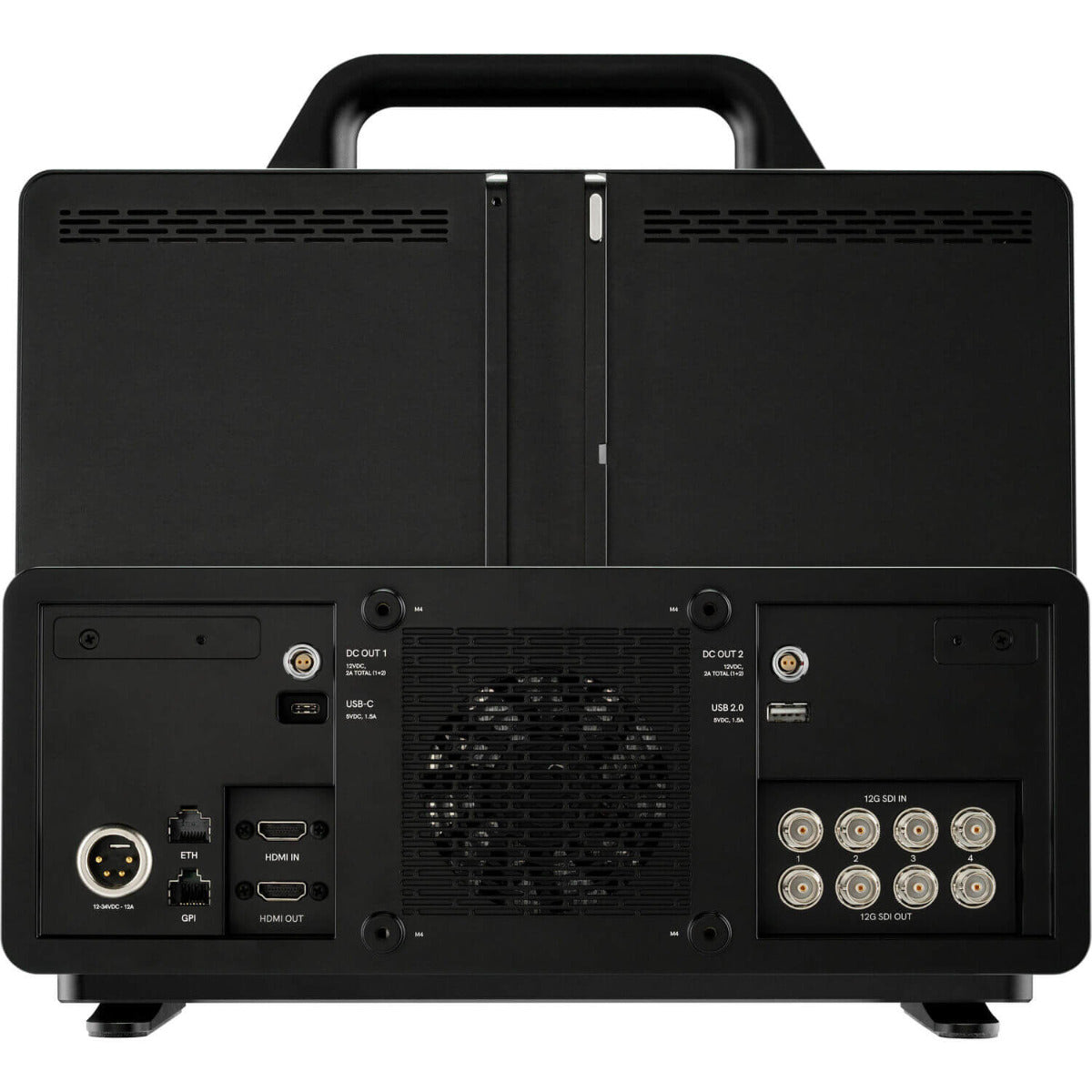

The Cine 13 monitor features four 12G-SDI inputs and four 12G-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. There is also a 3.5mm headphone output to monitor the embedded audio.

All functionality of the monitor is accessed via the innovative Page Builder in PageOS 4 which features a sophisticated UI, pre-configured pages, and adjustable page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons.

Cine 13 can be powered using its 4-pin XLR input or by a separately available dual V-mount or Gold-mount battery plate, and you can hot-swap between the XLR and optional battery power. You can also simultaneously power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output.

Key Features

• 13.3" UHD 4K monitor
• 1300:1 contrast ratio
• 1500 cd/m² brightness
• Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs
• One HDMI 2.0 input and one HDMI 2.0 output
• SD card slot for 3D LUTs
• One RJ45 Ethernet port
• One RJ45 GPI port

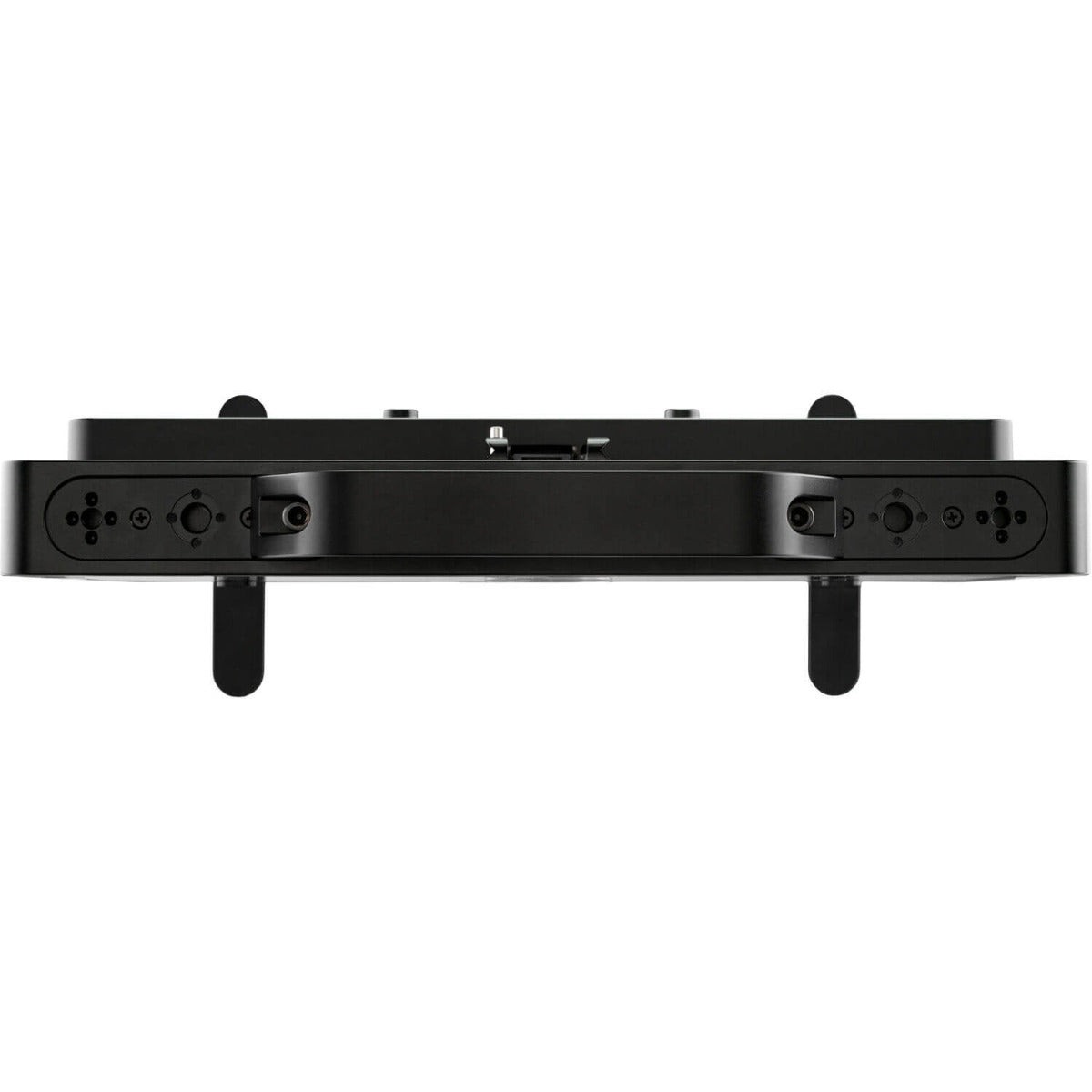

• Monitor feet set and top handle included
• Optional dual V-mount or Gold-mount battery plates available

PageOS 4 Display Tools

• Pixel zoom: 2x and 4x with pinch-zoom
• Aspect ratios: Preset and customizable
• DSLR scale: Canon 5D Mk II and Canon 7D
• Custom scale: Underscan only
• Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
• Image flip: Auto and manual
• Image rotation: Auto and manual
• Cross conversion: HDMI to SDI, SDI to HDMI
• Color focus assist: Adjustable style and intensity
• Peaking: Adjustable intensity
• False color: Spectrum, ARRI-style, and customizable
• Zebra: Dual, customizable
• Waveform: Luma and RGB, customizable with region-of-interest highlighting
• Vectorscope
• RGB parade, customizable
• Histogram: Luma and RGB
• Image capture, with a dedicated button and image gallery
• Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
• LUT import: Via SD card or USB storage device
• Image overlay: Opacity slider and blink setting
• Image capture
• Audio meters: Up to 8 channels

Power Options

• One 4-pin XLR 12 to 34V, 12A input
• Two 2-pin LEMO 12V, 2A outputs
• One USB Type-A 5V, 1.5A output
• Two USB Type-A 5V, 2.4A outputs
• One USB Type-C 5V, 1.5A outputs
• Separately available V-mount or Gold mount battery plates
• 4-pin XLR and battery options are hot-swappable
