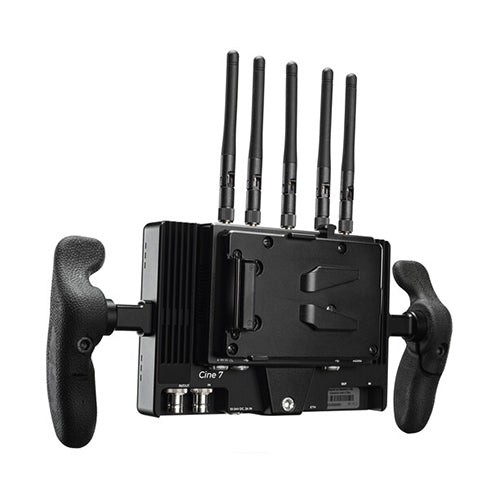

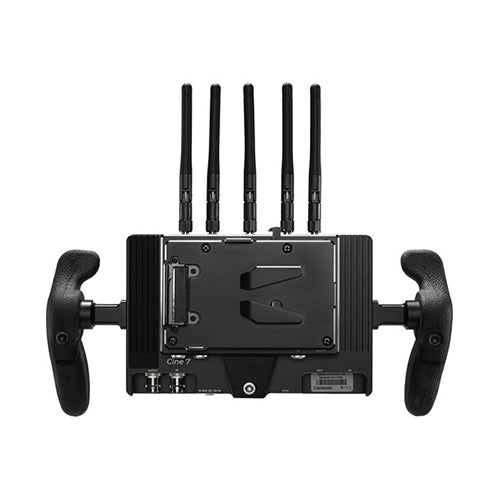

SmallHD 7" Cine 7 On-Camera Monitor Kit with Bolt 4K Receiver (V-Mount)

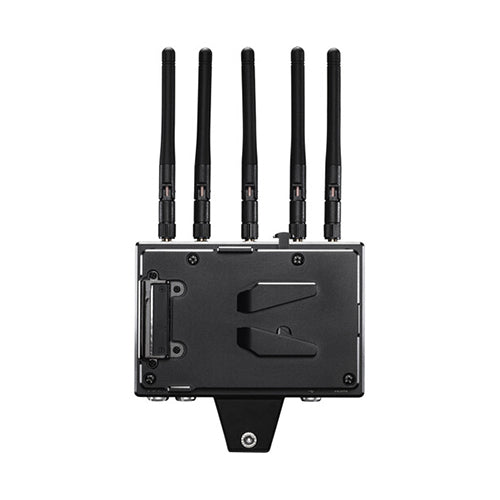

This monitor/receiver combination is the perfect pairing for meticulous eyes. RX Module easily attaches to the back of Cine 7. Receive real-time 4K HDR wireless video directly to a 1800nit display with 100%DCI-P3 color gamut. Gain the added benefits of PageOS 4, SmallHD’s powerful internal software toolset; 1:1 Pixel zoom allows operators to utilize added resolution to punch-in and achieve tack-sharp critical focus. Includes Monitor Handles for handheld conversion and a V-Mount Battery Plate capable of battery power pass-through to both RX Module and monitor. Looking for Small HD devices in Dubai? UBMS can provide best price and fast delivery for all Small HD products .

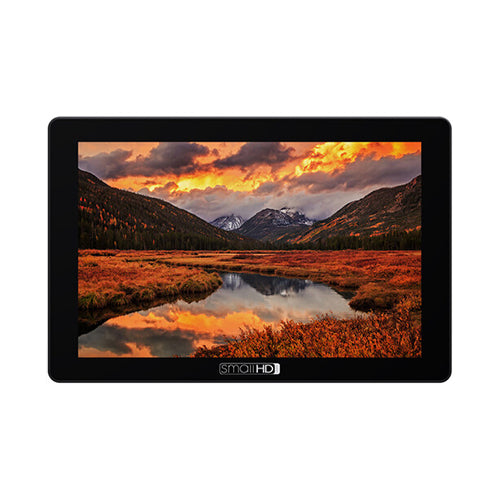

Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, as well as Teradek RT and Bolt integration.

Receive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

User page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false color, Color Pipe log conversion, etc. Monitor camera metadata, timecode, and start/stop flags.
Learn more about PagesOS 4

Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

• Daylight-viewable, 7" touchscreen on-camera monitor with 1800 cd/m² brightness
• Slim, lightweight design with 10-bit, touchscreen IPS LCD panel
• Features a wireless receiver module, which is compatible with Bolt 4K transmitters and can receive up to 4K30 video from up to 750' away
• Features lightweight side handles for mobility on set
• Supports up to 1080p60 video via full-size HDMI and 3G-SDI inputs, and wirelessly receive up to 4K30 video
• HDMI to SDI and SDI to HDMI cross conversion is supported
• Uses SmallHD PageOS 4 to organize and save customized function and settings pages
• Power with the V-mount battery plate on the receiver module or a power adapter
• Four 1/4"-20 mounting points on top, left, right, and back

• Pixel zoom: 1.1 to 2x and 2 to 8x via swipe up/down, with pinch zoom
• DSLR scale: Canon 5D Mk II and Canon 7D
• Custom scale: Underscan only
• Anamorphic de-squeeze: 0.75x, 1.33x, 1.5x, 2.0x, 2.5x
• Image flip: Auto and manual
• Image rotation: Auto and manual
• Color focus assist: Adjustable style and intensity
• Peaking: Adjustable intensity
• False color: Spectrum, ARRI-style, and customizable
• Dual-zebra: Customizable
• Waveform: Luma and RGB, customizable with region of interest highlighting
• Vectorscope: Yes
• RGB parade: Customizable
• Histogram: Luma and RGB
• Image capture: With dedicated button and image gallery
• Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
• LUT import: Via SD card or USB storage device
• Image overlay: Opacity slider and blink setting
• Audio meters: HDMI and SDI up to 8 channels
