Nanlux Evoke 5000B LED Bi-Color Monolight (Flight Kit)
Nanlux Evoke 5000B LED Bi-Color Monolight (Flight Kit)
Nanlux Evoke 5000B LED Bi-Color Monolight (Flight Kit)
Nanlux Evoke 5000B LED Bi-Color Monolight (Flight Kit)

Nanlux Evoke 5000B LED Bi-Color Monolight (Flight Kit)

Brand: NanLux
SKU: Evoke 5000BF
Availability: 3-6 weeks
AED57,040.00 AED59,892.00 Incl. VAT
AED57,040.00 AED59,892.00 Incl. VAT
AED

Key Features:

  • Motorized Yoke: 540° horizontal, 270° vertical adjustment.
  • WC-EXT Controller: 3.2-inch display, IP66-rated, weatherproof.
  • NL Mount Compatibility: Works with Evoke 2400B accessories.
  • Advanced Control: DMX/RDM, Art-Net/sACN, CRMX, Nanlink App 2.0.
  • Smart Cooling: Auto-adjusts fan speed, 44 dB(A) noise level.
  • Nebula B4 Engine: 2700K-6500K, ±80 Green/Magenta adjustment.
  • High-Speed Mode: Flicker-free up to 10,000 frames.
  • Durable Design: IP66-rated, lightweight, skid for easy transport.
  • Includes Flight Case

Free Shipping

Free standard shipping on orders over AED 500

Exchanges & Returns

Exchange or Return is possible only within five (5) days of purchase from date of delivery. Learn More.


Buy with 0% installments and pay AED 4753.33 for 12 months with selected banks. Read More
Description
Description
x

Nanlux Evoke 5000B (Flight Kit) Overview

The Nanlux Evoke 5000B is a groundbreaking 5000W stormproof bi-color LED spotlight offering green/magenta adjustment. Key features and functionalities include:


Control and Operation

  • On-board Control: Intuitive panel with three knobs, four buttons, and a 4.3-inch display.
  • Wired Control: Compatible with new IP66-rated WC-EXT controller (included) and existing WC-LM6P-C1 controller.
  • Wireless Control: NANLINK App 2.0 via Bluetooth, optional remote controller via 2.4G module.
  • DMX/RDM: Two 5-pin XLR ports.
  • Ethernet Control: Art-Net/sACN protocol support via two LAN ports.
  • Wireless DMX: Built-in LumenRadio TimoTwo module for CRMX control.
  • Motorized Yoke: Electronically adjustable with 540° horizontal rotation and 270° vertical flip, controllable via panel, button, wired controller, DMX/RDM, or Ethernet.
  • Wired Controller (WC-EXT): 3.2-inch display, three buttons, three knobs, IP66 rated, magnetic module.

Lighting Performance and Features

  • Nebula B4 Light Engine: Combines 4 types of white light chips, offering green/magenta adjustment across the 2700K-6500K color temperature range and 30% higher white light efficiency than full-color engines.
  • High Output: Approaching the illuminance of a 9kW HMI or 24kW tungsten light.
  • Wide Beam Angle: 95° beam angle suitable for large area lighting.
  • Excellent Dimming: Smooth, linear dimming from 0.0% to 0.1%.
  • High Speed Mode: Switches to DC for flicker-free performance at high frame rates (over 10,000 fps).
  • Green/Magenta Adjustment: ±80 adjustment across the entire color temperature range.

Build and Design

  • All-in-One Design: Integrated lamp head, control unit, and power supply.
  • Compact and Lightweight: High-strength magnesium alloy construction, 46kg/101lb (with yoke).
  • Weatherproof: IP66-rated housing.
  • NL Mount Ecosystem: Compatible with most Evoke 2400B accessories; new larger motorized Fresnel lens also available.
  • PosiTight System: Dual security for NL mount accessories.
  • Yoke with Disc Brake: Prevents accidental tilting, angle display for alignment.
  • Balance Adjusting Rail: Flexible adjustment of head balance.
  • Skid: Prevents wear, enhances transport efficiency, shock protection, easy operation.

ID: 49827644080414

Read more
Specs
Specs
x
Specification Value
Supporting
Motorized Yoke YK-E-EVL (540° horizontal rotation, 270° vertical flip)
Yoke Control Panel, Button, Wired Controller, DMX/RDM, Ethernet
Controlling
Wired Controller WC-EXT (3.2-inch display, 3 buttons, 3 knobs, 8m cable, IP66, magnetic module)
Mounting System
NL Mount Compatible with most Evoke 2400B accessories
Control Options
App NANLINK APP 2.0 (via Bluetooth)
Remote Optional (via 2.4G module)
DMX/RDM Two 5-pin XLR ports
Ethernet Art-Net/sACN
Wireless DMX LumenRadio CRMX (built-in TimoTwo module)
Cooling Management
Modes Smart, Full Speed, Low Speed, Off, Pause
Noise Level (Smart Mode) 44 dB(A)
On-board Control
Panel 3 knobs, 4 buttons, 4.3-inch display
Wired Controller Compatibility
New WC-EXT (via extension port)
Existing WC-LM6P-C1 (via wired control port)
Dimming Control
Range 0.0% to 100% (Linear)
High Speed Mode PWM to DC switching for flicker-free high-frame-rate shooting
Lighting Performance
Beam Angle 95°
Skid Features
Prevents wear, enhances transport efficiency, shock protection, easy operation
Mounting Security
NL Mount PosiTight system for dual security
Yoke Design
Disc brake, angle display
Balance
Adjusting rails
Design and Build
Form Factor All-in-one, compact, weatherproof (IP66)
Material High-strength magnesium alloy
Weight 46kg / 101lb (with yoke)
Light Engine
Type Nebula B4
Features 4 types of white light chips, Green/Magenta adjustment across color temp range, 30% higher white light efficiency
Power and Output
Input Power 5000W
Color Temperature 2700K - 6500K
Green/Magenta Adjustment ±80
Included Items
100V-125V Evoke 5000B, Yoke, AC Cable (7.5m), Reflector, USB Flash Drive, WC-EXT Wired Controller (with cable, magnetic base, bag), User Manuals (2)
200V-240V Evoke 5000B, Yoke, AC Cable (2m), Reflector, USB Flash Drive, WC-EXT Wired Controller (with cable, magnetic base, bag), User Manuals (2)

ID: 49827644080414

Read more

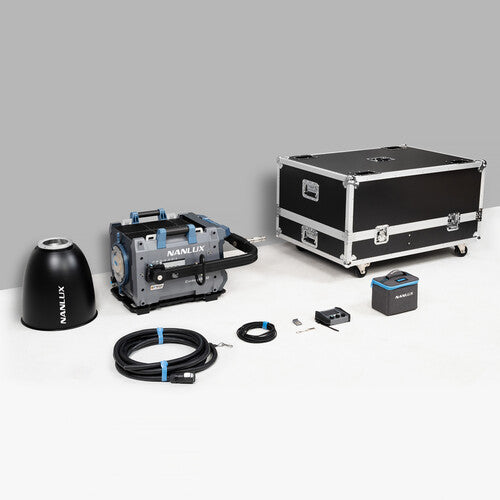

In the box
In the box
x
100V-125V countries/regions includes:
  • Evoke 5000B × 1
  • Yoke × 1
  • AC Cable 7.5m x 1
  • Reflector x 1
  • USB Flash Drive x 1
  • WC-EXT Wired Controller × 1
    • Connection Cable 8m x 1
    • AS-MB-1 Magnetic Base × 1
    • Carrying Bag × 1
  • Flight Case x 1
  • User Manual x 2 (Evoke 5000B+WC-EXT)

200V-240V countries/regions includes:
  • Evoke 5000B × 1
  • Yoke × 1
  • AC Cable 2m x 1
  • Reflector x 1
  • USB Flash Drive x 1
  • WC-EXT Wired Controller × 1
    • Connection Cable 8m x 1
    • AS-MB-1 Magnetic Base × 1
    • Carrying Bag × 1
  • Flight Case x 1
  • User Manual x 2 (Evoke 5000B+WC-EXT)

ID: 49827644080414

Read more
Reviews
Reviews
x

UBMS is an authorized distributor of NanLux in Dubai, Abu Dhabi, UAE. Contact us or buy online Nanlux Evoke 5000B LED Bi-Color Monolight (Flight Kit) with best price.
