Marshall Electronics V-LCD171MD 17.3" Full HD Rackmount Monitor with MD-3GE Module

Marshall Electronics V-LCD171MD Overview

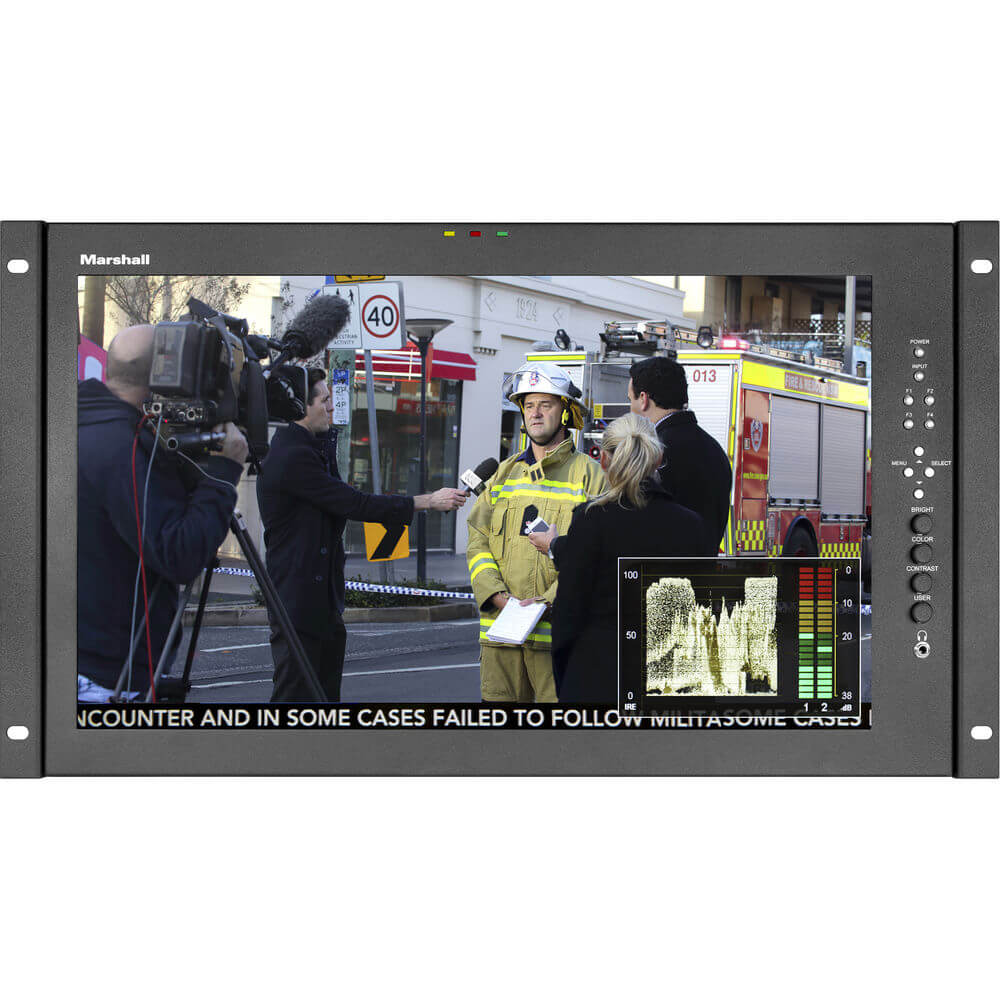

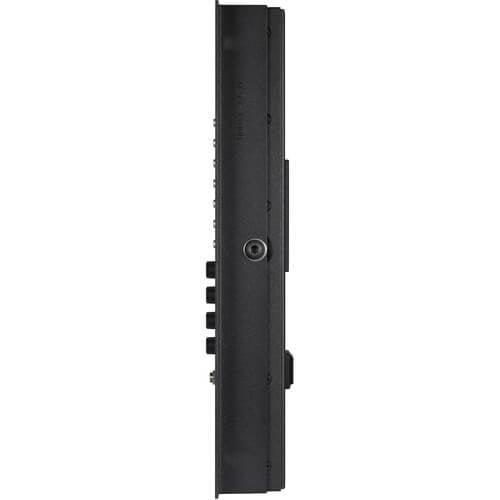

The V-LCD171MD 17.3" Full HD Rackmount Monitor with 3G-SDI Input includes the V-LCD171MD 17.3" Full HD Rackmount Monitor and a pre-installed MD-3GE 3G-SDI Input Module. The 17.3" rackmount monitor features various built-in functions such as waveform and audio bar overlays, three-color tally lights, and a tilting mount design for easy viewing. It also features speakers and programmable function buttons. This 17.3" rackmount monitor outputs 400 cd/m² output and supports Full HD resolution. The contrast ratio of 600:1 showcases this monitor's ability to handle images in varied light conditions. It is suitable for use in news vans, satellite trucks, and central equipment rooms.

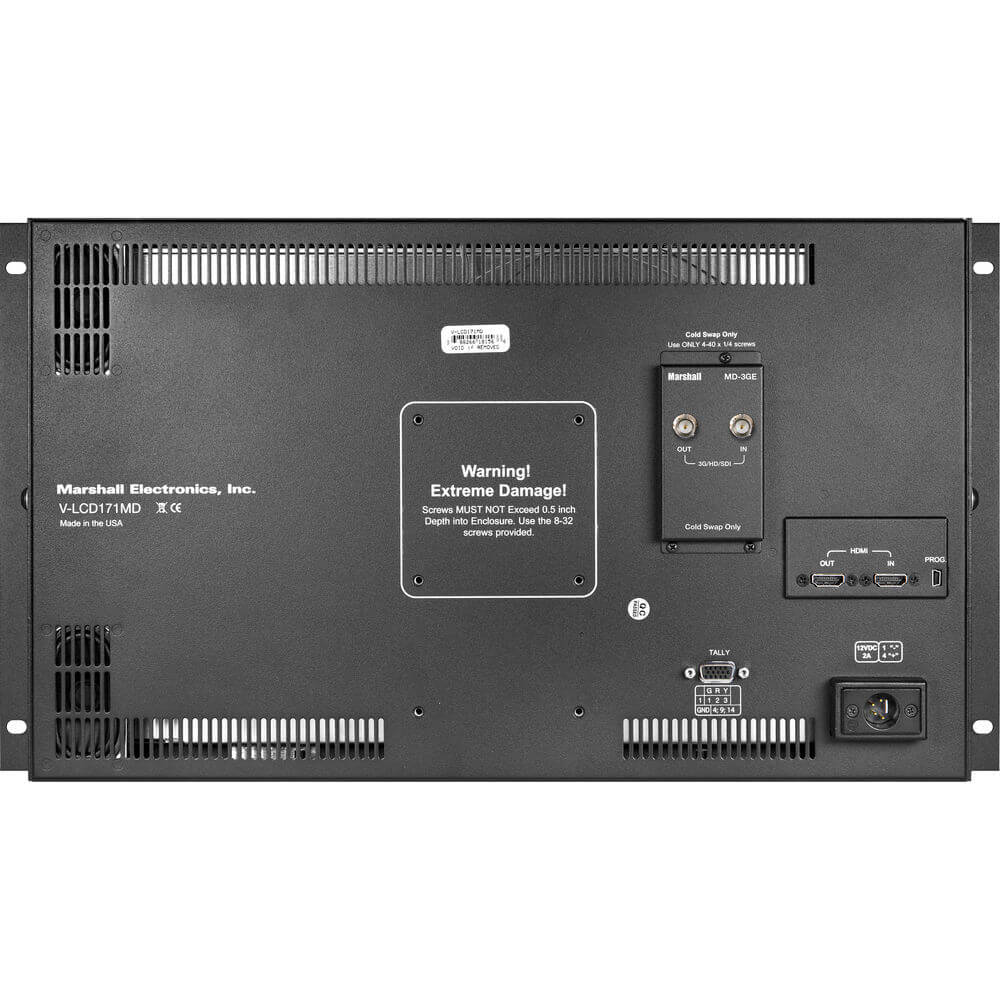

The Marshall Electronics 3G-SDI Input Module with Loop-Out attaches to the back of the included monitor to equip it with a 3G/HD/SD-SDI input. Linked to the input is a 3G/HD/SD-SDI loop-out that can be used to output the camera signal to an SDI monitor up to 300' away.

DSLR Ratio Adjustment

Marshall's DSLR Ratio Adjustment feature allows you to scale video that does not fill the monitor's screen, eliminating black pillar bars. This feature can be accessed when the monitor is connected via HDMI in record mode on certain Canon DSLRs. You can choose between Normal, 3:2, 16:9, and Full Screen modes. The DSLR Ratio Adjustment feature can be programmed to one of the front panel's four-button presets for quick and easy access.

Waveform Display and Studio Audio Bar

The V-LCD71MD incorporates both, a Waveform display and Stereo Audio bars. These may be displayed separately or together in any one of the four corners of the monitor. The Stereo Audio is de-embedded from either the HDMI input (8-channel) or from the optional 3G-SDI input (16-channel). Any pair of the available channels can be selected for both the display and the headphone output.

Clip Guide

The Zebra function (Clip Guide) is used to visually filter data on the screen that is under a lower threshold or over an upper threshold. Data on either side of the filters can be displayed with a custom color. The Zebra function can also be inverted to filter the area between the Upper and Lower Threshold. The color selected for the lower threshold acts as the color for all inverted Zebra data.

False Color Filter

The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Peaking Filter

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. When the camera operator adjusts (or "racks") the focus control (on the camera lens), different parts of the image will have these colored highlights. This indicates that this portion of the image is sharp or in focus. Final focus is achieved by racking the camera lens focus control back and forth until the desired portion of the image has the colored highlights. The original version of the peaking filter removed the color from the image leaving a black and white picture with Red highlights. This version of Peak Filter not only keeps the original color but adds a choice of four colors, red, green, yellow, and pink to choose from for the highlights as well as adjustable sensitivity for even finer control of focus.

Custom Pixel-to-Pixel Panning

To select a Custom Pixel-to-Pixel zone, you need to enter the Adjust function. The outer square represents the entire image and the inner grey box represents your current pixel-to-pixel selection. You can use the color knob to move your selection left and right or you can enable the input crop function to select the area of active video that you would like shown on the image display. To lock in your selection, you need to press the select button or the ROTOMENU knob.

Adjustable Screen Markers

A variety of screen markers in 4:3, 16:9, and full screen modes allow accurate monitoring of the different aspect ratios used in broadcast environments. User Markers allow for custom aspect ratio, cropping framing, and variable width lines.

Six Custom Configuration Presets

Six User Setting Presets allow the user to save six system configuration files for later recall when needed. These configuration files will save 38 different parameters that the user can adjust.
