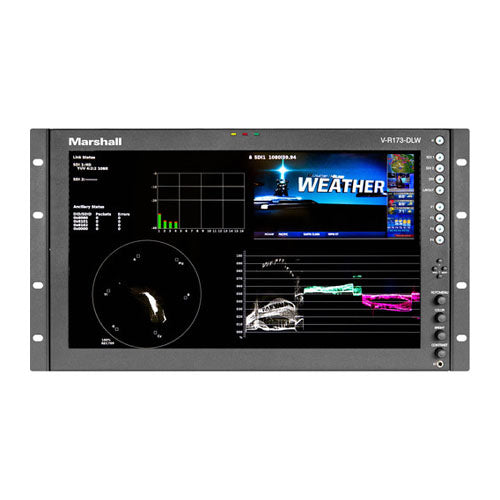

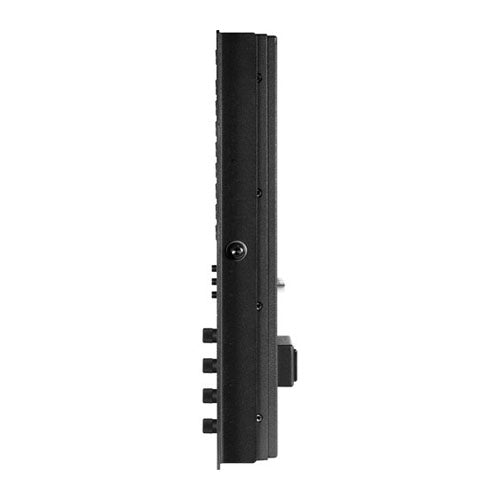

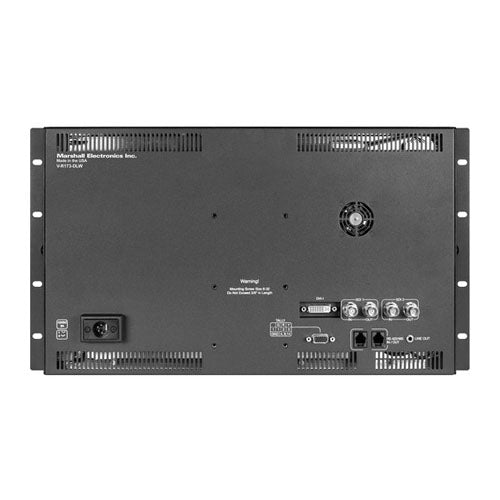

Marshall Electronics V-R173-DLW 17.3" Rack Mount Dual Link/Waveform Monitor
Key Features
Free standard shipping on orders over AED 500
Exchange or Return is possible only within five (5) days of purchase from date of delivery. Learn More.
Exchange or Return is possible only within five (5) days of purchase from date of delivery subject to the terms herein: In case if you wish to Exchange or Return the product(s), please contact us on the address given in Contact Details for approval and further actions.
Exchange or Return shall be made provided the product (including the unit carton) is returned unused and unopened (original seal not broken) along with accessories & FOC (Free of Cost) The refund for products Returned will only be in the form of UBMS Credit Vouchers / Credit Memo, to be redeemed within a period of 6 months. No cash refund is possible.
If a defect is discovered after opening/using the product, your product is covered under repair/replacement warranty of the manufacturer.
Please note unitedbroadcast.com is a retailer only and the obligation for warranty rests with manufacturer of the product as per the warranty condition listed on the warranty card.
Exchanges:
Please allow 3-5 business days for mail-in exchanges to be processed
Refunds & Credits:
Once we receive and inspect your item(s), we will credit your account. Please allow 7 - 15 business days for a credit to appear on your account. In most cases, we will issue your refund in the same way you made the original purchase. If payment was made by check, the refund check will be issued no sooner than 10 business days after the date of purchase. Please note: we can only refund the original purchase price after bank charges deduction. Shipping and handling fees are not refundable.
Limitations Of Liability:
The total liability of UBMS/brand/manufacturer/distributor on any claim, whether in contract, warranty; tort, product liability; and copyright, trademark, trade secret, patent and other intellectual property rights infringement; or otherwise, arising out of, connected with, or resulting from the performance or non-performance of any agreement resulting here from or from the sale, delivery resale, repair, replacement or use of any product or the furnishing of any service, shall not exceed the price allocable to the product or service which gives rise to the claim.
Marshall Electronics V-R173-DLW 17.3" Rack Mount Dual Link/Waveform Monitor
Key Features
ID: 49825728495902
Marshall Electronics V-R173-DLW Specs Table
Panel Size |
17.3" (43.9 cm) diagonal |
---|---|
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Active Area | 381.88 x 214.81 mm |
Type | LCD panel |
Brightness | 400 cd/m² |
Contrast | 600:1 |
Viewing Angles | 160 x 160° |
Backlight Type | LED, adjustable |
Video Formats | 1080p/1080i/720p/625i/525i |
Loss | Input Curtain: Supported |
Color Temperature | D55,65,93 |
Others | OverLay position, IMD functions, Tally, closed caption, waveform, vectorscope, self-sensing, re-clocked/re-shaped |
Input/Output Connectors Type |
Input: SD-SDI, HD-SDI, 3G-SDI, and DVI-I Output: SD-SDI, HD-SDI, 3G-SDI, audio meters, embedded audio from SDI, input status display |
Controls Type |
Tally, RS-485/422 w/ loop-through, controls on front panel, user-defined function buttons, RotoMenu control, pivot angle, handles/rack ears |
Voltage | 12 VDC |
Consumption | 3 A @ 12 VDC (36 W) |
Power Switch | Supported |
Connector | 4-Pin XLR connector |
Compliance | CE approved |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -14 to 120°F (-20 to 50°C) |
VESA Mount | 75 mm |
Dimensions (W x H x D) | 17.15 x 10.45 x 2.00" (43.56 x 26.54 x 5.08 cm) |
Weight | Main Body: 7.0 lb (3.2 kg) |
ID: 49825728495902
UBMS is an authorized distributor of Marshall in Dubai, Abu Dhabi, UAE. Contact us or buy online Marshall Electronics 17.3" Rack Mount Dual Link/Waveform Monitor with In-Monitor Display with best price.
