Libec LX-ePed PRO Electric pedestal with Dolly (30kg / 66.1lb) for PTZ cameras

Libec LX-ePed PRO Electric Pedestal Overview

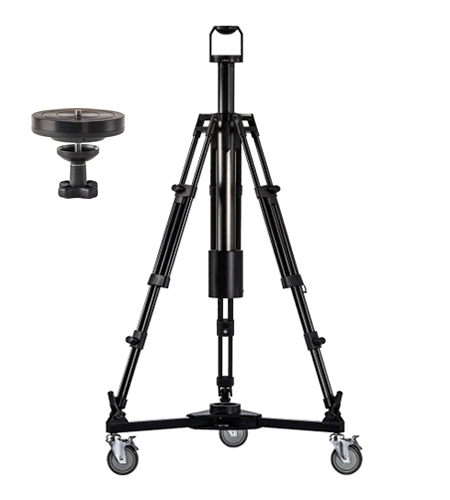

The Libec LX-ePed PRO is an advanced electric pedestal designed for diverse PTZ camera applications, offering high payload capacity, reduced sound, and high rigidity. Key features include:

Enhanced Performance

• High Payload: 30 kg / 66.1 lbs payload capacity, supporting configurations like PTZ cameras with prompters or multiple PTZ camera setups.
• Quiet Operation: High-quality motor unit for reduced sound, suitable for noise-sensitive environments.
• High Rigidity: Heavy-duty "T103RB" base aluminum tripod and "DL-8RB" dolly for stability.

New and Advanced Features

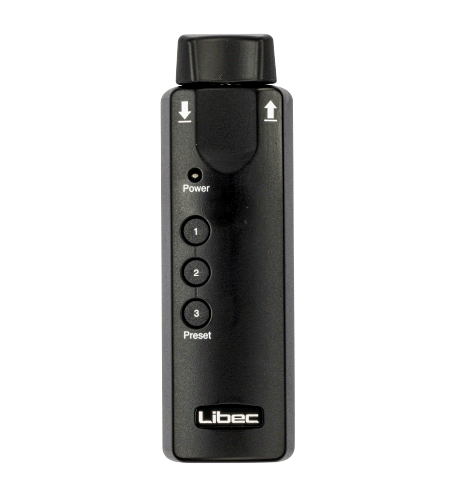

• Position Presets: Remote control with up to three position presets for easy height adjustments.
• Smart Quick Release Adapter (AP-X): Safe, easy, and fast camera attachment/detachment, with a safety wire hole for PTZ cameras.
• IP Connectivity & Serial Communications: Via optional "MPC-1" multi-protocol converter, allowing operation by PTZ controllers and LX-ePed PC APP.

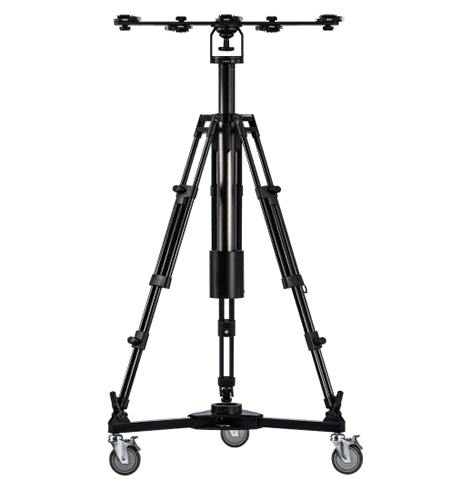

• Multiple PTZ Camera Support: Includes T-bar with five "AP-X" adapters for simultaneous placement of up to five PTZ cameras.
• Complete Kit: Includes T-bar, five "AP-X" adapters, and "BL-F" adapter, reducing the need for additional accessories.

Operational Features

• Remote Controlled: Adds elevation to PTZ camera pan, tilt, and zoom.
• Seamless Movements: Original column mechanism minimizes wobbling, precise mechanical control for smooth start/stop.
• Continuous Speed Adjustment: Adjustable speed via controller rocker, slow mode for fine-tuning.
• Reliable Wire Connection: Wired connection, no radio wave interference.
• V-Mount Battery Powered (Optional): Via optional "VM-24V" for mobile operation.
• Foot Pedal Operation (Optional): Via optional "FPR-2" for simultaneous camera and pedestal control, three position presets.
• Compatibility: Compatible with flat base (1/4" and 3/8" screws), video heads (100mm and 75mm via adapter).

Design and Portability

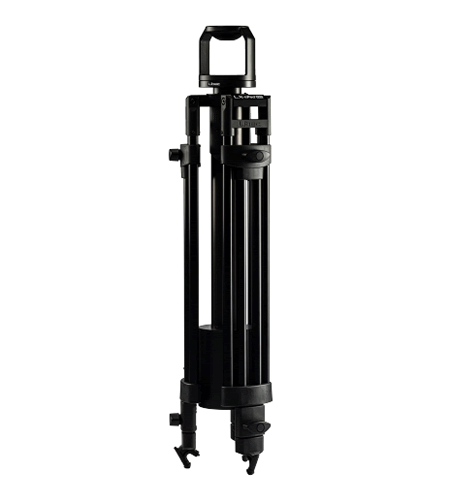

• Compact Design: Main unit separates for easy transport, foldable dolly/floor spreader.
• Lightweight: 15.0 kg / 33.1 lbs, fits in optional "RC-80" tripod case.
• High-Angle Shots: Maximum height of 270 cm / 106.3".
• Accessory Port: 1/4" and 3/8" screw holes on tripod base.
• Safety Design: Finger pinch prevention on electric column.
• Built-in Bubble Level: For easy setup.
