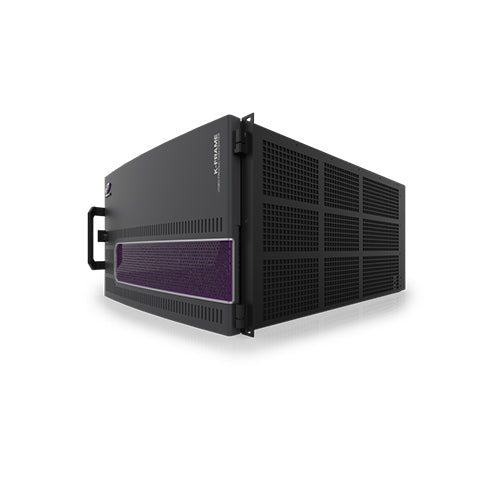

The new Karrera K-Frame S-series Video Production Center systems combine ultimate mid-range switcher performance, along with proven workflows and simplified control of complex productions, with multiformat support including 1080p and 4K UHD. These unrivaled capabilities are offered as two system packages, with 3 M/Es or 2 M/Es, for exceptional affordability. Karrera K-Frame S-series switchers deliver unmatched creative freedom for highly produced content, using up to 6 M/Es across two suites, with four keyers per M/E, and up to eight floating iDPMs. All this processing power is combined with high volume inputs/outputs (80x48 maximum) for outstanding versatility. The switchers are fully Future-Ready, with multiformat support including 1080p and 4K UHD. Switching of 4K UHD is offered without the need for any hardware or software upgrades. The compact 6 RU video frame delivers a high level of functional integration for space efficiency. It features built-in Image Store still/movie storage, and dual multiviewers for up to 28 windows with tally. Buy Grass Valley - KRR-3-35-3M-KCS from UBMS Dubai.

• Compact Frame (6 RU) with 10-bit 4:2:2 video processing:
• 32 standard inputs, up to 80 maximum
• 16 standard outputs, up to 48 maximum
• Up to 6 M/Es for exceptional creative freedom
• Up to 8 floating DPMs, accessed as either iDPM or eDPM at the user’s discretion
• 4 full function keyers in every M/E, with standard keying modes including chromakey
• 2D DPMs (resizers) on every keyer, with 4 pairs of 2D DPMs per M/E
• Floating 3D iDPMs for more complex digital effects
• Future-Ready with multiformat support, including 1080p (level A or B) and 4K
• Smart I/O modules provide up/down/cross conversion (optional)
• Integrated macro builder/editor allows users to edit macros online (or offline) on a PC running the menu application
• DoubleTake split M/E mode effectively doubles the number of M/Es (optional)
• FlexiKey programmable clean feed mode for separately programmable configurations of keyers from 4 M/E outputs
• Aux bus transitions for dissolves and wipes on aux bus outputs
• Built-in Image Store for storing up to 3,000 stills or 50 seconds of 1080p video to 10 video+key pair outputs
• Integrated external ClipStore provides multiple channels of video+key pairs for up to 10+ hours of non-volatile video/key/audio clip storage
• Built-in, dual output multiviewer with 5 pre-configured layouts (maximum 14 panes per layout) with On-Air and Preview tally
• Interfaces with Grass Valley routers and external Kaleido multiviewers, as well as their control systems
• LDK Series & LDX Series camera control with Ethernet tally via Connect Gateway
• 999 macros with multiple means of recall from the panel
• 1,000 E-MEM registers with Define E-MEM for fine control in creation and editing of effects
• RGB color correction on the M/E buses and aux bus outputs (optional)
• System Control area with device control sub-sections, switched preview, aux bus delegation and macro controls
• Source Rules links keyers to sources and set rules for “on/off/left alone” on every M/E with full look-ahead preview
• Ethernet tally connection for integration with external tally systems
• VDCP Ethernet connect for stadium applications
• Integrated control of XPression graphics engine using RossTalk protocol
