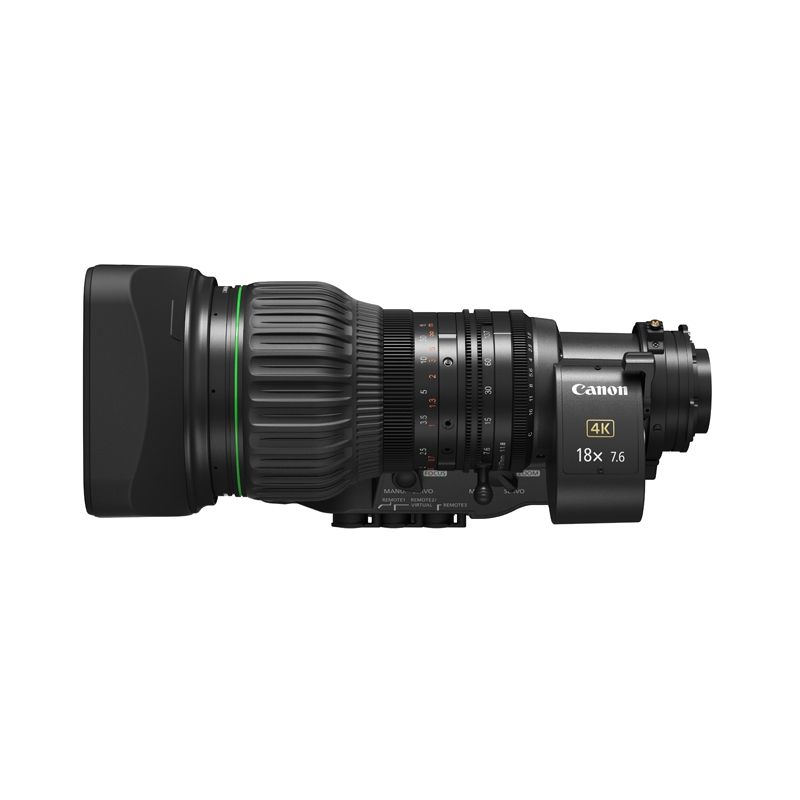

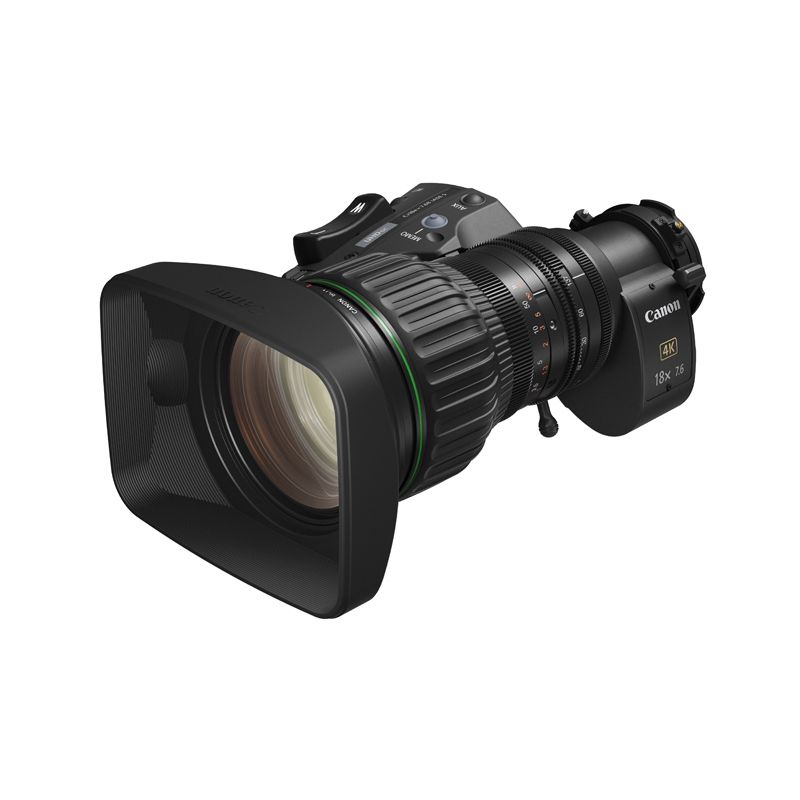

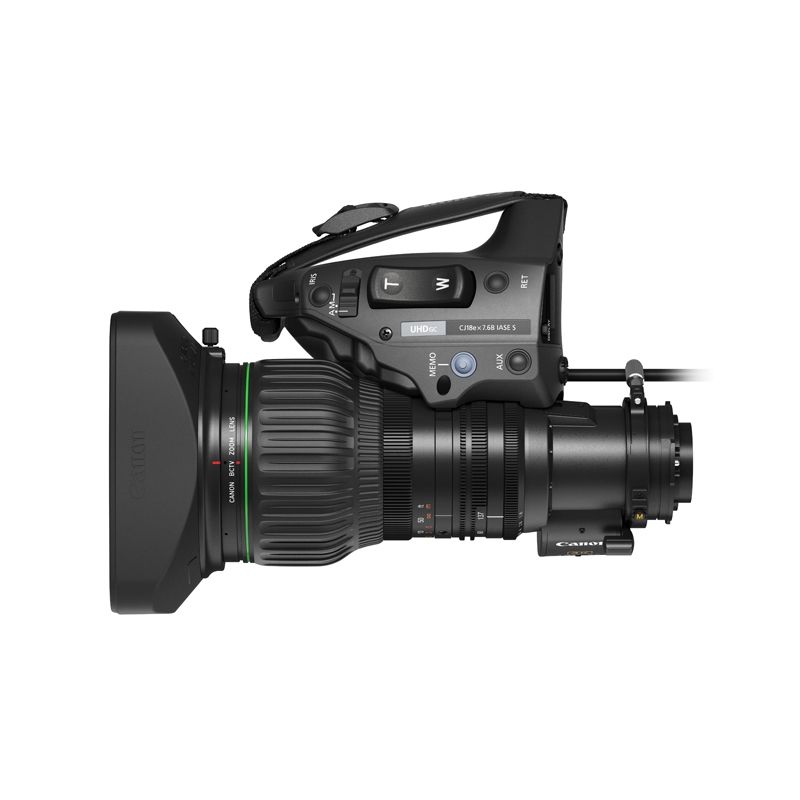

Canon CJ18ex7.6B IASE-S 2/3" 18x UHDgc 4K Digital ENG/EFP Standard Lens

The CJ18ex7.6B IASE S is an 18x zoom lens for 2/3" format ENG/EFP cameras that features a compact, lightweight design, a built-in 2x extender, and support for UHD 4K and HDR footage and the BT.2020 wide color gamut.

4K Optical Performance

High-index optical glass materials, each having unique dispersion characteristics, help minimize chromatic aberrations and geometric distortion. Lens element surface accuracy has been improved significantly over HDTV lenses, contributing to the enhanced Modulation Transfer Function (MTF) performance required of 4K imagery. New multilayer optical coatings combined with new deposition processes produce a deeper black reproduction that is important to HDR imaging.

Minimized Chromatic Aberration

An optimized arrangement of fluorite and UD glass help minimize chromatic aberration, increasing image clarity with reduced colour fringing on edges.

Reduced Ghosting

Special coatings and an internal lens barrel designed to prevent reflection result in clean black reproduction and less ghosting and flaring, sustaining high-tonality images that support HDR.

Compact and Lightweight

Weighing only 3.3 lb, the portable CJ18EX7.6B 4K UHD lens is similar in size to Canon's other 2/3" HD lenses while delivering 4K performance and offering the mobility demanded in the reporting and documentary fields. The lens features the optimum construction and high durability of a conventional HD lens while offering the same shooting style as that of existing 2/3" HD lenses.

The centre of gravity is close to the mount, lessening the strain on the hands and elbows of the camera operator. The ergonomic form factor creates a user-friendly design, including an ergonomic grip design for a comfortable feel during operation, helping to reduce fatigue and making it easy to move the camera about. The lens is sure to satisfy with its high-level combination of excellent specifications, enhanced optical performance, and usability.

HD Demand Compatibility

This feature allows for compatibility with a broadcast-use HD demand. It enables the use of the zoom and focuses electrical drive system accessories (such as the ZSC-300D and FPD-400D) that are currently used by HD equipment.

Aberration Correction and Virtual Functions

Aberration-correction functions have been increasingly employed on 2/3" HDTV/UHDTV cameras for broadcast use. The associated data files are immediately transferred to the camera, which implements digital correction for the lens aberrations. The lens also delivers digital positional data for external virtual systems.

Advanced Virtual Operability and Precise Virtual Image Expression

The drive unit of the CJ18EX7.6B 4K UHD lens uses three 20-pin connectors. One of these connectors outputs 16-bit high-precision lens positional data, allowing for output even while the zoom and focus servo controllers are in use. This high-performance encoder helps simplify calibration when composing virtual and live-action images, thus resulting in more accurate composites.

On-Board Display

Various digital features can be set, adjusted, and operated from the display on the drive unit.

Shuttle Shot

By memorizing any two focal lengths, the Canon drive unit can automatically "shuttle" between two points, moving in either direction. As an example, this function is effective for shots in which an operator wants to start from a wide angle and then zoom in rapidly onto an object.

Framing Preset

An angle of view can be preset in either of two memories and the lens will zoom at the highest speed, or in a preset zoom speed, to the preset position with the push of a simple button. As an example, this function is effective for situations such as interview programs, where it is necessary to switch between a bust shot and wide shot.

Speed Preset

A specific zoom speed can be preset in memory, making it possible to repeat the zoom speed as often as you like with the push of a simple button. Using a preset speed when zooming in and out contributes to stable images, particularly with slow zooms.

United Broadcast & Media Solutions(UBMS) is CANON authorized reseller. Contact UBMS for Canon CJ18ex7.6B IASE-S 2/3" 18x UHDgc 4K Digital ENG/EFP Standard Lens
