Blackmagic Design Teranex Mini SDI to HDMI 8K Converter and Monitoring Solution

Blackmagic Design Teranex Mini Overview

The Blackmagic Design Teranex Mini SDI to HDMI 8K HDR is a cutting-edge converter and advanced 8K monitoring solution designed for professional video workflows. It supports both 4K and 8K signals, making it ideal for broadcast, film, and post-production environments. With its ability to handle DCI 8K or quad UHD signals via four 12G-SDI inputs, this device ensures seamless integration of high-resolution video sources with professional monitoring systems. Its built-in LCD screen, support for third-party calibration probes, and advanced features like HDR workflows and 3D LUTs make it a versatile tool for precise color grading and monitoring.

Key Features

• 8K Monitoring Solution: Supports 8K input signals (DCI 8K or quad UHD) via four 12G-SDI inputs, with outputs available via four HDMI ports for compatible monitors.
• Third-Party Calibration Probes: Compatible with probes like the SpectraCal C6, X-Rite i1 Display Pro, and Klein K10-A for accurate display alignment and precise color calibration.
• Built-In LCD Screen: Displays the video image along with two selectable on-screen scopes: Waveform Monitor (WFM), Parade, Vector, and Histogram.
• Down-Conversion Capability: Converts 8K input signals for Ultra HD or HD monitors if an 8K monitor is unavailable.
• HDR Workflow Support: Handles various HDR formats, including PQ and HLG, while supporting Rec. 2020, Rec. 709, and 100% of the DCI-P3 color space.
• Dual 3D LUTs: Allows loading of two independent 3D LUTs simultaneously, with quick switching via front-panel buttons.

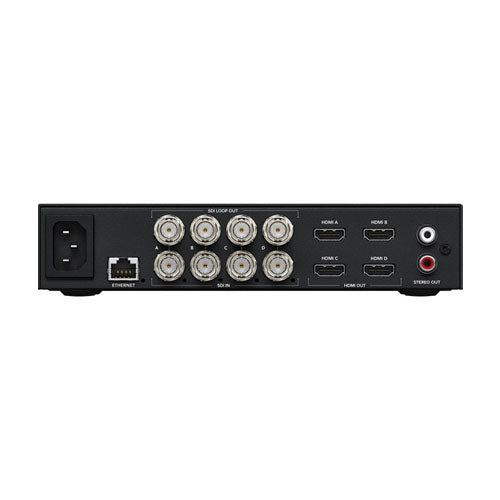

• Quad-Link 12G-SDI Inputs/Outputs: Provides loop-through outputs for connecting to additional equipment, supporting all HD, Ultra HD, and 8K standards.
• Automatic Format Conversion: Converts between 2SI and square division formats automatically, ensuring compatibility with different monitors.
• Advanced Audio Monitoring: Includes accurate audio level meters with VU or PPM ballistics, switchable via the menu system.
• HDMI Instant Lock: Ensures the HDMI display reconnects instantly if the input video signal is interrupted.

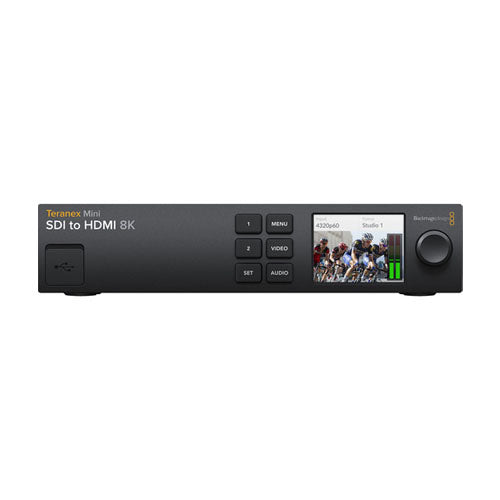

• Front-Panel Controls: Features a rotating selection knob and six buttons for easy navigation through menus and settings.

Why Choose the Teranex Mini SDI to HDMI 8K HDR?

The Teranex Mini SDI to HDMI 8K HDR is more than just a converter—it's a comprehensive solution for professionals working with high-resolution video. Whether you're monitoring 8K footage, calibrating displays, or applying 3D LUTs for creative color grading, this device delivers exceptional performance and precision. Its support for industry-standard tools like third-party calibration probes and DaVinci Resolve-generated LUTs ensures compatibility with existing workflows. The built-in LCD screen and intuitive front-panel controls make it easy to use, while its robust feature set makes it indispensable for broadcast, film, and post-production applications.

Advanced Features

• 3D LUTs: Includes high-quality, 33-point 3D LUTs used in the film industry for recreating classic film looks or compensating for display colorimetry differences.
• Color Calibration: Analyzes connected displays using a USB color probe and generates a custom 3D LUT to correct color discrepancies.
• Flexible Scope Configuration: Customize the on-screen scopes by adjusting their position, opacity, or type (Waveform, Parade, Vector, Histogram).
• Network Settings: View and edit network configurations directly from the front panel for remote control and integration into larger systems.
• Standard File Formats: Supports universal 3D LUT file formats, allowing you to load LUTs created in software like DaVinci Resolve.

Ideal Use Cases

• Monitoring 8K footage on compatible displays or down-converting for Ultra HD/HD workflows.
• Precise color calibration for professional-grade video production.
• Applying 3D LUTs for creative color grading or matching display colorimetry.
• Ensuring accurate audio levels with built-in VU/PPM metering.
• Converting between different video formats (e.g., 2SI to square division) for seamless integration with various monitors.

Conclusion

The Blackmagic Design Teranex Mini SDI to HDMI 8K HDR is a powerful and versatile tool for professionals who demand the highest quality in video monitoring and conversion. Its ability to handle 8K signals, support for HDR workflows, and advanced calibration features make it an essential addition to any high-end video production setup. Whether you're working in broadcast, film, or post-production, this device provides the precision, flexibility, and reliability needed to achieve outstanding results.
