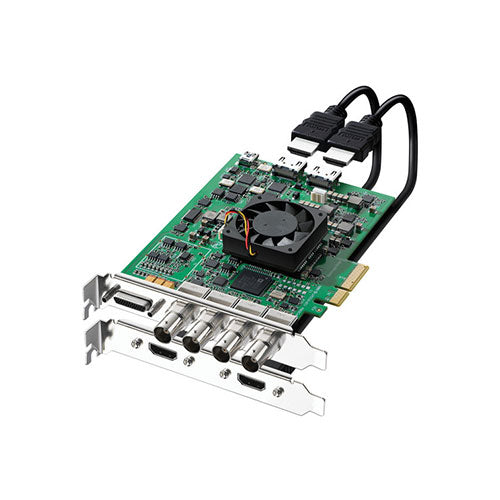

The Blackmagic Design DeckLink 4K Extreme Capture & Playback Card features two SDI inputs supporting 6G and 3G capability, assignable in the Blackmagic Control Panel. With all the latest firmware updates installed, you can ingest DCI 4K, 4:2:2, or UHD 4K, YUV, 4:2:2 by single-link 6G-SDI. The second input shuts off in this setup. DCI 4K, 4:2:2 can also be ingested via the HDMI input with the latest firmware installed.
With 3G-SDI assigned, you can ingest single-link, 1080p, RGB, 4:4:4; and with HD-SDI assigned, you can ingest single-link 1080p, 4:2:2, or dual-link, 1080p, 4:4:4. You can also use the SDI inputs for dual-channel 2D/3D stereoscopic workflows.
The remaining connections include two SDI outputs, an HDMI output, and Component, Composite, S-Video, XLR, RS-422, and genlock on an included breakout cable. The card also features an internal SD/HD keyer and broadcast-quality up/down/cross conversion. DeckLink 4K Extreme is compatible with Mac, Windows, and Linux based workstations and media servers and supports a comprehensive list of software (please see below).
Free standard shipping on orders over AED 500
Exchange or Return is possible only within five (5) days of purchase from date of delivery. Learn More.
Exchange or Return is possible only within five (5) days of purchase from date of delivery subject to the terms herein: In case if you wish to Exchange or Return the product(s), please contact us on the address given in Contact Details for approval and further actions.
Exchange or Return shall be made provided the product (including the unit carton) is returned unused and unopened (original seal not broken) along with accessories & FOC (Free of Cost) The refund for products Returned will only be in the form of UBMS Credit Vouchers / Credit Memo, to be redeemed within a period of 6 months. No cash refund is possible.
If a defect is discovered after opening/using the product, your product is covered under repair/replacement warranty of the manufacturer.
Please note unitedbroadcast.com is a retailer only and the obligation for warranty rests with manufacturer of the product as per the warranty condition listed on the warranty card.
Exchanges:
Please allow 3-5 business days for mail-in exchanges to be processed
Refunds & Credits:
Once we receive and inspect your item(s), we will credit your account. Please allow 7 - 15 business days for a credit to appear on your account. In most cases, we will issue your refund in the same way you made the original purchase. If payment was made by check, the refund check will be issued no sooner than 10 business days after the date of purchase. Please note: we can only refund the original purchase price after bank charges deduction. Shipping and handling fees are not refundable.
Limitations Of Liability:
The total liability of UBMS/brand/manufacturer/distributor on any claim, whether in contract, warranty; tort, product liability; and copyright, trademark, trade secret, patent and other intellectual property rights infringement; or otherwise, arising out of, connected with, or resulting from the performance or non-performance of any agreement resulting here from or from the sale, delivery resale, repair, replacement or use of any product or the furnishing of any service, shall not exceed the price allocable to the product or service which gives rise to the claim.
The Blackmagic Design DeckLink 4K Extreme Capture & Playback Card features two SDI inputs supporting 6G and 3G capability, assignable in the Blackmagic Control Panel. With all the latest firmware updates installed, you can ingest DCI 4K, 4:2:2, or UHD 4K, YUV, 4:2:2 by single-link 6G-SDI. The second input shuts off in this setup. DCI 4K, 4:2:2 can also be ingested via the HDMI input with the latest firmware installed.
With 3G-SDI assigned, you can ingest single-link, 1080p, RGB, 4:4:4; and with HD-SDI assigned, you can ingest single-link 1080p, 4:2:2, or dual-link, 1080p, 4:4:4. You can also use the SDI inputs for dual-channel 2D/3D stereoscopic workflows.
The remaining connections include two SDI outputs, an HDMI output, and Component, Composite, S-Video, XLR, RS-422, and genlock on an included breakout cable. The card also features an internal SD/HD keyer and broadcast-quality up/down/cross conversion. DeckLink 4K Extreme is compatible with Mac, Windows, and Linux based workstations and media servers and supports a comprehensive list of software (please see below).
ID: 49824881934622
SDI Video Input | 2x 10-bit SD/HD/2K/4K and 2D/3D switchable Supports 3 Gb/s and 6 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4 |
SDI Video Output | 2x 10-bit SD/HD/2K/4K and 2D/3D switchable Supports 3 Gb/s and 6 Gb/s single link 4:2:2/4:4:4 and dual link 4:2:2/4:4:4 |
Analog Video Input | 1x Component YUV on 3 BNCs switchable to S-Video or Composite Component supports HD and SD |
Analog Video Output | 1x Component YUV on 3 BNCs switchable to S-Video and Composite Component supports HD and SD |
HDMI Video Input | 1x HDMI type A connector including 3D frame packing support and Ultra HD 4K support |
HDMI Video Output | 1x HDMI type A connector including 3D frame packing and 4K monitoring support |
Analog Audio Input | 2 channels of professional balanced analog audio via XLR connectors |
Analog Audio Output | 2 channels of professional balanced analog audio via XLR connectors |
AES/EBU Audio Input | 2 channels unbalanced with sample rate converter |
AES/EBU Audio Output | 2 channels unbalanced |
SDI Audio Input | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
SDI Audio Output | 16 channels embedded in HD/2K/4K 8 channels embedded in SD |
HDMI Audio Input | 8 channels embedded in SD and HD |
HDMI Audio Output | 8 channels embedded in SD and HD |
Sync Input | Blackburst in SD, 720p50, 720p59.94 |
