Blackmagic Design ATEM Constellation 8K

Blackmagic Design ATEM Constellation 8K Overview

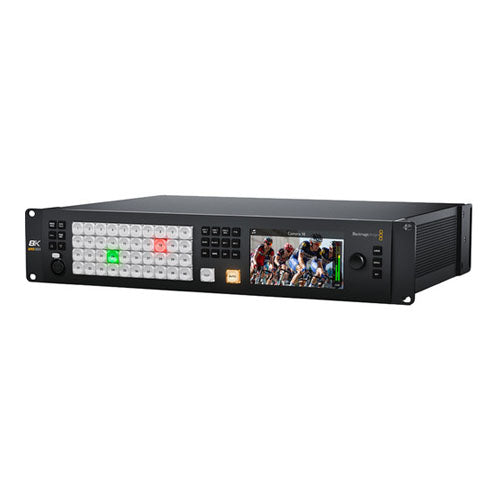

The Blackmagic Design ATEM Constellation 8K is a highly versatile and powerful live production switcher housed in a compact 2 RU chassis. Designed to handle both 4K and 8K video seamlessly, it features an impressive array of inputs, outputs, and advanced capabilities that make it ideal for professional broadcast, live events, and studio productions. With its built-in control panel, 40 12G-SDI inputs, and two main plus 24 AUX 12G-SDI outputs, the Constellation 8K provides unparalleled flexibility for creating high-quality programs.

Key Features

• 40 12G-SDI Inputs: Each input includes its own standards converter, allowing seamless switching between different video formats regardless of resolution or frame rate.
• Two Main and 24 AUX 12G-SDI Outputs: Provides extensive output options for multi-view monitoring, program feeds, and auxiliary outputs.

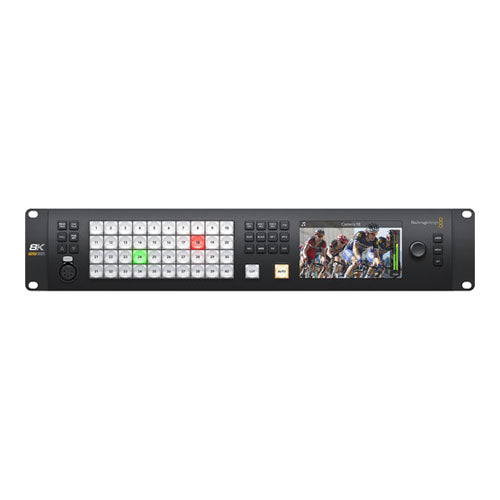

• Built-In Control Panel: The front panel features illuminated buttons and an LCD view screen for local control, while Ethernet connectivity allows remote operation via the included ATEM Software Control Panel.
• Advanced Keyers: Includes 16 upstream keyers in Ultra HD (4 in 8K), supporting chroma, linear, and luma keying with precise controls for edge, flare, and color correction.
• 4 DVEs and 16 Keyers: Offers creative flexibility with 4 digital video effects (DVE) and 16 keyers in Ultra HD, scaling down to 1 DVE and 4 keyers in 8K mode.
• Four Media Players: Store and play back broadcast-quality RGBA graphics, animations, and stinger clips from the internal media pool.
• Multiview Outputs: Four multiview outputs allow simultaneous viewing of 4, 7, 10, 13, or 16 sources on a single monitor.
• Fairlight Audio Mixer: Built-in audio mixer supports up to 156 channels, including 80 de-embedded SDI channels, each with a 6-band parametric EQ, compressor, limiter, expander, noise gate, and full panning.

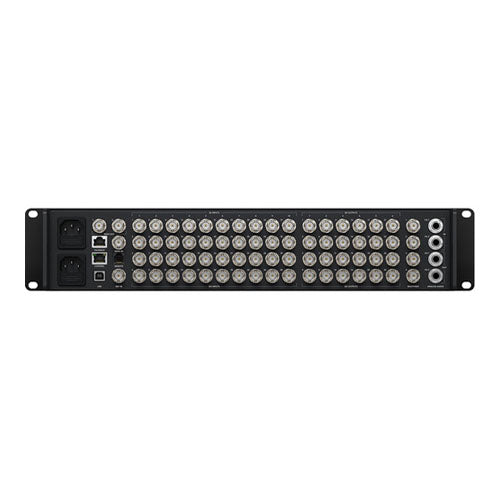

• Talkback Functionality: Available via the 5-pin XLR on the front or RJ12 connector on the rear, enabling communication between operators and talent.
• Support for 8K and UHD: Handles up to 28 layers in UHD and 7 layers in 8K, ensuring compatibility with modern high-resolution workflows.

Built-In Capabilities

• 16 Upstream Keyers in UHD, 4 in 8K: Supports chroma, linear, and luma keying with advanced controls for seamless compositing.
• 4 Downstream Keyers in UHD, 2 in 8K: Ideal for lower-thirds, logos, and other overlays in the final program output.
• 21 Pattern Generators in UHD, 9 in 8K: Provides customizable patterns for transitions, wipes, and graphic effects.
• 2 Color Generators: Allows for consistent color matching across multiple sources.
• Transition Effects: Includes mix, dip, wipe, and DVE transitions, all fully customizable for duration, border color, width, position, and direction.
• Media Pool: Stores up to 24 full-resolution 8K stills, 64 UHD or HD stills, and motion graphics clips for animations and stingers.
• Tally Support: Indicates preview (green) and program (red) states for easy source identification.

ATEM Software Control Panel

The included ATEM Software Control Panel offers comprehensive control over the switcher through an intuitive interface. Features include:

• Visual Switcher Interface: Simplifies switching between inputs and managing program outputs.
• Parameter Palettes: Enables quick adjustments to transitions, keyers, and effects.
• Camera Control: Adjust camera settings such as iris, focus, and color balance directly from the software.
• Audio Mixing: Full control over the Fairlight audio mixer, including EQ, dynamics, and routing.
• Macro Programming: Automate complex sequences with pre-programmed macros.
• HyperDeck Integration: Control HyperDeck disk recorders for seamless recording and playback workflows.

Built-In Fairlight Audio Mixer

The Fairlight audio mixer integrated into the ATEM Constellation 8K delivers professional-grade sound mixing capabilities:

• Up to 156 Channels: Supports 80 de-embedded SDI channels, analog inputs, talkback microphone, and media players.
• Advanced Audio Processing: Each channel includes a 6-band parametric EQ, compressor, limiter, expander, noise gate, and full panning.
• Control Options: Manage audio settings via the ATEM Software Control, a Mackie-compatible panel, or a Fairlight Audio Console.

Advanced Keying and Transitions

The ATEM Constellation 8K excels in creating professional-grade composites and transitions:

• Chroma Keyer: Features a color picker for automatic generation of key parameters, along with precise edge and flare controls.
• Foreground Color Correction: Ensures seamless blending of foreground and background layers.
• DVE Transitions: Combine graphic wipes and stingers with internal media players for dynamic visual effects.

Media Pool and Storage

The built-in media pool provides ample storage for broadcast-quality graphics and animations:

• Still Images: Holds up to 24 full-resolution 8K stills, 64 UHD or HD stills.
• Motion Graphics Clips: Supports up to 100 frames in 8K RGBA, 400 frames in UHD, or 1600 frames in 1080 HD.

Why Choose the ATEM Constellation 8K?

The Blackmagic Design ATEM Constellation 8K is a powerhouse switcher designed for professionals who demand precision, flexibility, and reliability in their live production workflows. Whether you're producing 8K content, managing complex audio mixes, or integrating advanced keying and transitions, this switcher delivers exceptional performance. Its robust feature set, combined with the intuitive ATEM Software Control Panel, makes it an indispensable tool for broadcasters, event producers, and content creators.

Ideal Use Cases

• Live broadcasts requiring 8K or UHD support.
• Studio productions with multiple cameras and complex audio setups.
• Live events such as concerts, conferences, and sports coverage.
• Archiving legacy content with real-time format conversion.
• Digital signage applications leveraging 8K resolution.

Conclusion

The Blackmagic Design ATEM Constellation 8K sets a new standard for live production switchers, offering unmatched versatility and performance in a compact 2 RU form factor. With its advanced keying, powerful Fairlight audio mixer, and extensive connectivity options, it is the ultimate solution for professionals working in high-resolution environments. Whether you're handling 8K broadcasts, managing intricate audio mixes, or creating dynamic visual effects, the ATEM Constellation 8K ensures you have the tools you need to deliver stunning results every time.
