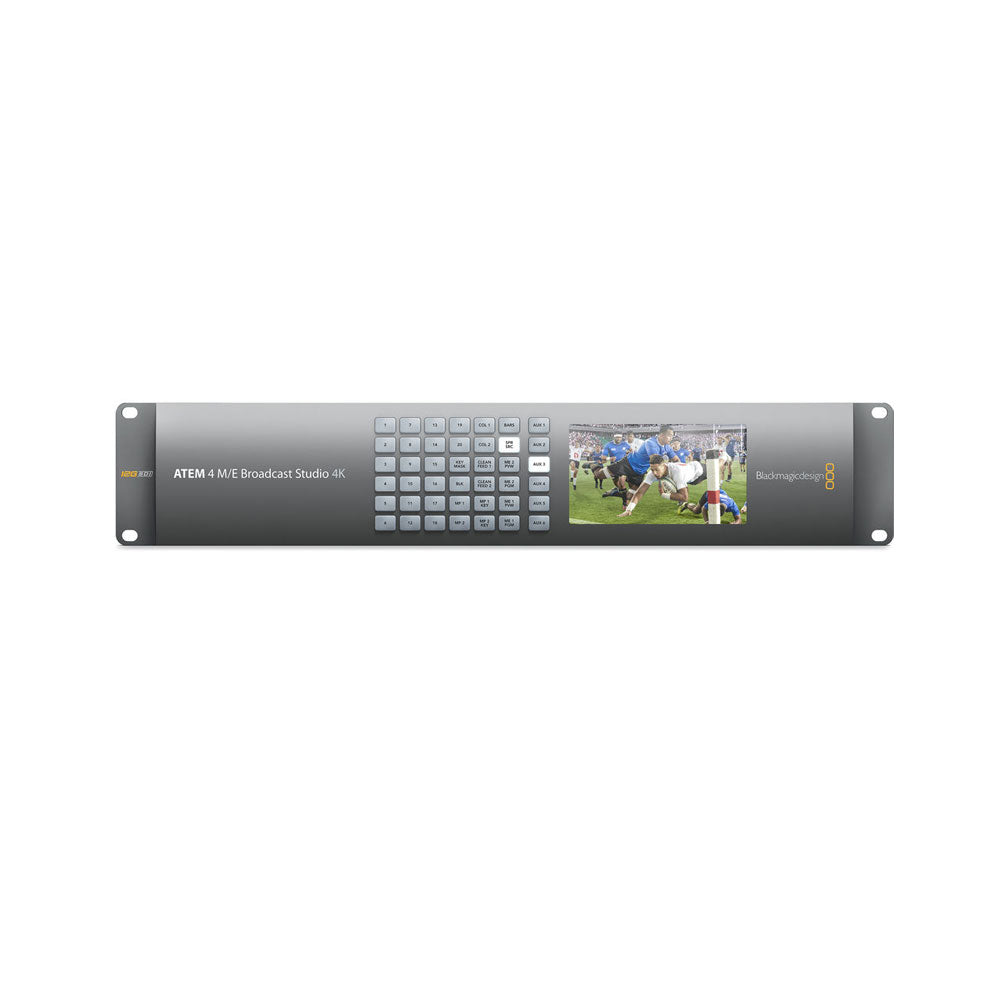

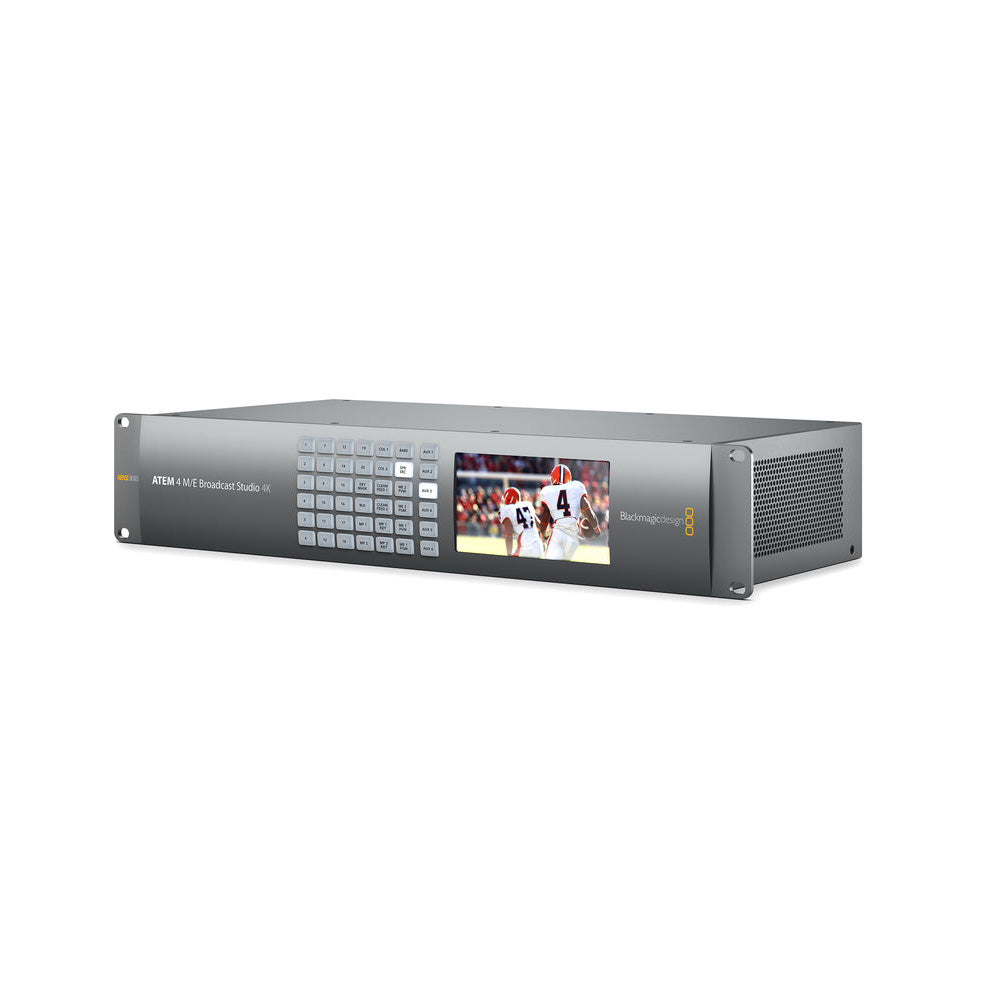

Blackmagic Design ATEM 4 M/E Broadcast Studio 4K

Blackmagic Design ATEM 4 M/E Broadcast Studio 4K Overview

The Blackmagic Design ATEM 4 M/E Broadcast Studio 4K is a professional-grade live production switcher designed for HD and UHD 4K broadcast environments. Featuring twenty 12G-SDI inputs, four mix-effects (M/E) buses, and advanced keying, transitions, and digital video effects (DVE), this switcher provides the tools necessary to create high-quality live productions. With its compact 2 RU design, redundant power supplies, and extensive connectivity options, the ATEM 4 M/E Broadcast Studio 4K is ideal for live events, studio broadcasts, and multi-camera setups.

Key Features

• Twenty 12G-SDI Inputs: Support UHD 4K video up to 59.94 fps, with backward compatibility for HD formats like 1080p, 1080i, and 720p. All inputs are frame synchronized, allowing non-genlocked sources to be used seamlessly.
• Four Mix-Effects Buses: Enable advanced layering and creative effects, with each bus featuring four upstream keyers for a total of 16 keyers.
• Two Downstream Keyers: Ideal for inserting logos, bugs, and global lower-thirds over the live program output.
• Built-In DVE Processing: Adjust video size, position, and rotation with 3D borders, drop shadows, and lighting effects for dynamic visuals.
• SuperSource Layering: Provides four independent DVE channels for resizing and positioning video feeds, graphics, and replays, effectively functioning as an additional multi-layer VFX switcher.
• Creative Transitions: Includes cuts, mixes, dips, wipes, and DVE moves, with customizable patterns, lengths, and animations.
• Audio Mixer: Integrates a full-featured audio mixer with level meters, balance adjustments, and support for Mackie-compatible USB panels for tactile control.
• Internal Media Players: Store and play back broadcast-quality RGBA graphics, animations, and stingers from the media pool, supporting popular image formats like PNG, TGA, BMP, GIF, JPEG, and TIFF.
• Photoshop CC Plugin: Enables real-time graphic creation and instant downloading into the media pool for dynamic overlays and updates during live broadcasts.
• Multi-View Outputs: Two multi-view outputs allow you to display up to 16 inputs across two screens for efficient monitoring.
• Ethernet and USB Connectivity: Ethernet enables remote control and integration with external control surfaces, while USB allows firmware updates and internal settings adjustments.
• Redundant Power Supplies: Ensures reliable operation during critical live productions (requires separately available IEC cables).

Advanced Keying and Layering

The ATEM 4 M/E Broadcast Studio 4K excels in creating professional-grade composites:

• 16 Upstream Keyers: Provide chroma, luma, linear, and pattern keying for layering live video, titles, graphics, and animations with exceptional quality.
• Downstream Keyers: Overlay logos, bugs, and lower-thirds on the final program output, ensuring flexibility for on-air graphics.
• SuperSource Layering: Adds four independent DVE channels for picture-in-picture effects, live interviews, and complex multi-layer compositions.

Creative Transitions

The switcher offers a wide range of customizable transitions:

• Cuts, Mixes, and Wipes: Instantly available with adjustable patterns and durations.
• DVE Moves: Create flying graphics, animated stingers, and custom animations with full control over size, position, and rotation.
• Lighting Effects: Add 3D borders, drop shadows, and lighting enhancements for polished visual effects.

Audio Mixing Capabilities

The built-in audio mixer provides comprehensive control over all audio channels:

• Multi-Track Mixing: Adjust levels, balance, and enable/disable channels directly from the ATEM Software Control interface.
• External Audio Inputs: Supports two sets of analog stereo inputs via XLR and RCA, in addition to embedded SDI audio.
• Mackie-Compatible Panels: Connect hardware panels for tactile feedback and precise audio adjustments.

Media Pool and Playback

The internal media pool stores broadcast-quality graphics and animations for instant playback:

• Two Media Players: Appear as input sources, allowing seamless transitions to full-frame graphics or overlays.
• Supported Formats: PNG, TGA, BMP, GIF, JPEG, and TIFF for maximum flexibility.
• Photoshop CC Integration: Designers can create real-time graphics and download them directly into the media pool for immediate use.

Flexible Monitoring and Output Options

The ATEM 4 M/E Broadcast Studio 4K ensures efficient monitoring and flexible output configurations:

• Program and Preview Outputs: Available via SDI, operating at HD or UHD resolutions.
• Multi-View Outputs: Display up to 16 inputs across two screens, reducing the need for multiple monitors.
• Switchable TV Standards: Transition between HD and UHD workflows as needed, ensuring compatibility with existing equipment.

Ideal Use Cases

• Live broadcasts requiring UHD 4K resolution, such as sports events, concerts, and conferences.
• Studio productions with multi-camera setups and complex graphics overlays.
• Live interviews and panel discussions with picture-in-picture effects using SuperSource layering.
• Dynamic presentations incorporating real-time graphics and animations.
• Archiving legacy content with real-time format conversion and synchronization.

Why Choose the ATEM 4 M/E Broadcast Studio 4K?

The ATEM 4 M/E Broadcast Studio 4K is a powerhouse switcher designed for professionals who demand precision, flexibility, and reliability in their live production workflows. Whether you're producing 4K broadcasts, managing complex audio mixes, or integrating advanced keying and transitions, this switcher delivers exceptional performance. Its robust feature set, combined with the intuitive ATEM Software Control Panel, makes it an indispensable tool for broadcasters, event producers, and content creators.

Conclusion

The Blackmagic Design ATEM 4 M/E Broadcast Studio 4K sets a new standard for live production switchers, offering unmatched versatility and performance in a compact 2 RU form factor. With its advanced keying, powerful audio mixer, and extensive connectivity options, it is the ultimate solution for professionals working in high-resolution environments. Whether you're handling 4K broadcasts, managing intricate audio mixes, or creating dynamic visual effects, the ATEM 4 M/E Broadcast Studio 4K ensures you have the tools you need to deliver stunning results every time.
