ARRI ALEXA Mini LF and Lens Mount Set (LPL)

ARRI ALEXA Mini LF and Lens Mount Set (LPL)

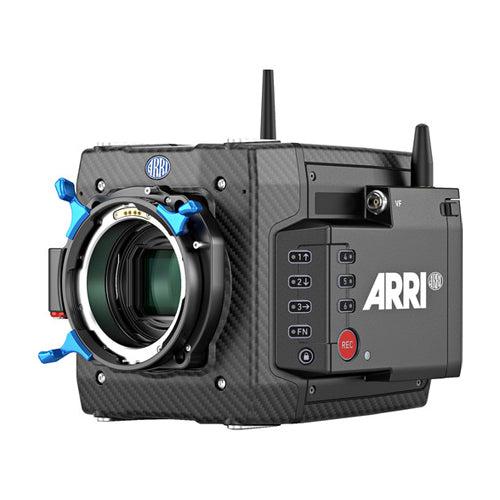

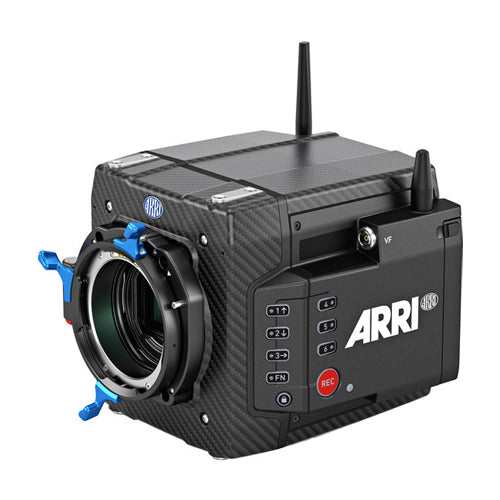

Built around a large-format 4K version of the original ALEXA sensor, the ARRI ALEXA Mini LF (LPL) camera in this Lens Mount Set offers native 4K recording in three sensor modes, with ARRIRAW or ProRes recording in LF Open Gate, LF 16:9, or LF 2.39:1 modes. The ALEXA LF combines large-format resolution with an optimal pixel size for excellent image quality producing vivid, nuanced images with natural skin tones and smooth bokeh. The ALEXA LF is designed with ARRI's LPL lens mount that has been optimized for large-format capture and is compatible with all PL-mount lenses with the use of a PL-to-LPL adapter. A wider diameter and shorter flange focal depth than the original ARRI PL mount enable LPL-mount lenses to be smaller and lighter than earlier large-format optics. Looking for Arii camera ? . Please contact UBMS Dubai. We can provide best price and fast delivery for all Arri cameras .

Alexa Mini LF Sensors

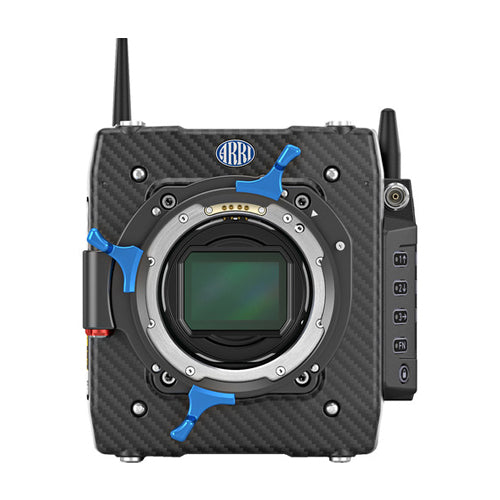

Arri Mini Alexa LF uses the same sensor as the ALEXA LF. This is the ALEV 3 A2X sensor, which has the same photosite size and type as ARRI Super 35 digital cameras. The ALEV 3 A2X has 4448 x 3096 photosites (yes, it is therefore a 4.5K sensor) and measures 36.70 x 25.54 mm / 1.444 x 1.005" and requires a 44.71 mm / 1.760" image circle.

Alexa Mini LF Size & Weight

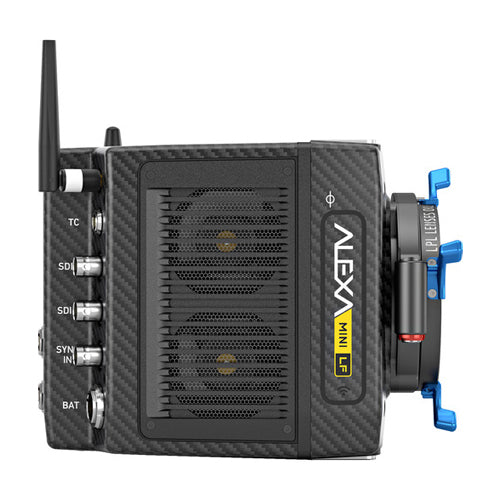

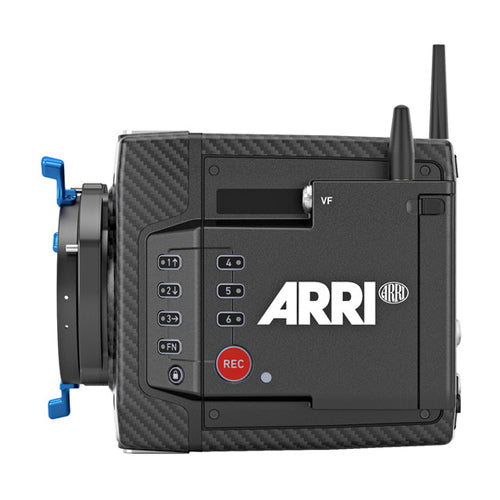

The ALEXA Mini LF (left) has the same dimensions and the same mounting points as the ALEXA Mini , except for the media bay on the camera left side. The ALEXA Mini LF camera body with an LPL lens mount weighs 2.6 Kg/5.7 lbs. The ALEXA Mini LF MVF-2 viewfinder weighs 800 g/1.7 lbs.

Input Voltage & Power Draw

The ALEXA Mini LF has an input voltage range from 11 V to 34 V. Therefore, it can be easily powered by any 12 V on-board battery as well as by a 24 V on-board battery. The ALEXA Mini LF has a power draw slightly higher than the ALEXA Mini, at around 65 W when recording ARRIRAW at 24 fps with the MVF-2 viewfinder connected. Electronic accessories will, of course, increase power draw.

Recording Media

The ALEXA Mini LF uses the new, small and cost-effective Codex Compact Drive 1 TB.

The Compact Drive has been specifically designed for the small form factor of the ALEXA Mini LF, using new flash technology in a miniaturized tough enclosure. The ALEXA Mini LF accepts Compact Drives directly, without the need for an adapter. ALEXA LF or ALEXA SXT W do not support the Compact Drive.

Both ARRIRAW and Apple ProRes recording can utilize the drive's full recording capacity of 960 GB. The drive will be formatted by the ALEXA Mini LF in the UDF format for ARRIRAW and ProRes. Therefore, both ARRIRAW and ProRes can be recorded onto the same media without reformatting or switching drives. The drive offers sustained write rates of up to 8 Gb/s. We will also use this drive for future cameras.
