AJA Corvid 44 12G PCIe 4-Channel 12G-SDI Full-Size BNC I/O Card (Tall Bracket, Fan)
Key Features:
AJA Corvid 44 12G PCIe 4-Channel 12G-SDI Full-Size BNC I/O Card (Tall Bracket, Fan)
Key Features
- 4 x Bidirectional BNC Connectors
- For HFR, 8K, 4K, HD, SD, Deep Color, HDR
- Up to 10-Bit 4:2:2/4:4:4 at 12-Bit Color
- Reference In; Internal 9-Pin RS-422
Free Shipping
Free standard shipping on orders over AED 500
Exchanges & Returns
Exchange or Return is possible only within five (5) days of purchase from date of delivery. Learn More.
Exchange or Return is possible only within five (5) days of purchase from date of delivery subject to the terms herein: In case if you wish to Exchange or Return the product(s), please contact us on the address given in Contact Details for approval and further actions.
Exchange or Return shall be made provided the product (including the unit carton) is returned unused and unopened (original seal not broken) along with accessories & FOC (Free of Cost) The refund for products Returned will only be in the form of UBMS Credit Vouchers / Credit Memo, to be redeemed within a period of 6 months. No cash refund is possible.
If a defect is discovered after opening/using the product, your product is covered under repair/replacement warranty of the manufacturer.
Please note unitedbroadcast.com is a retailer only and the obligation for warranty rests with manufacturer of the product as per the warranty condition listed on the warranty card.
Exchanges:
Please allow 3-5 business days for mail-in exchanges to be processed
Refunds & Credits:
Once we receive and inspect your item(s), we will credit your account. Please allow 7 - 15 business days for a credit to appear on your account. In most cases, we will issue your refund in the same way you made the original purchase. If payment was made by check, the refund check will be issued no sooner than 10 business days after the date of purchase. Please note: we can only refund the original purchase price after bank charges deduction. Shipping and handling fees are not refundable.
Limitations Of Liability:
The total liability of UBMS/brand/manufacturer/distributor on any claim, whether in contract, warranty; tort, product liability; and copyright, trademark, trade secret, patent and other intellectual property rights infringement; or otherwise, arising out of, connected with, or resulting from the performance or non-performance of any agreement resulting here from or from the sale, delivery resale, repair, replacement or use of any product or the furnishing of any service, shall not exceed the price allocable to the product or service which gives rise to the claim.
Description

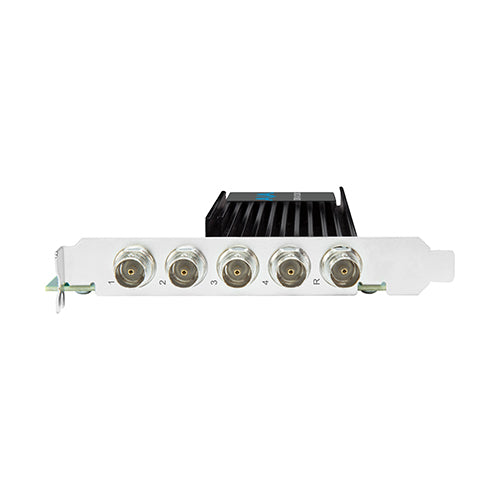

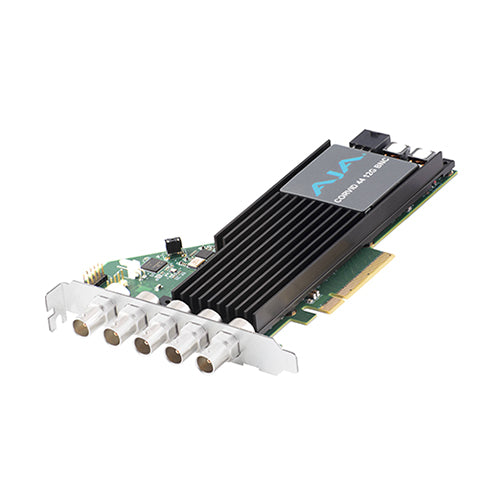

xAJA's Corvid 44 12G PCIe 4-Channel 12G-SDI Full-Size BNC I/O Card is an 8-lane PCIe 3.0 card with four bidirectional 12G-SDI BNC connectors. The bidirectional aspect provides a lot of flexibility for simultaneous capture and pass-through. The advanced card also offers a BNC reference input and internal 9-pin RS-422 port. This version of the card features a tall outer metal bracket for standard size systems and has a built-in fan on the rear for active cooling.
The card is designed for demanding video and audio workflows in applications including HFR, 8K, 4K, 2K, HD, SD, Deep Color, and HDR. It supports 10-bit 4:2:2 and 4:4:4 at up to 12-bit color spaces, and it allows for both ingest and output over backward-compatible 12G-SDI.Buy AJA Corvid 44 12G PCIe 4-Channel 12G-SDI Full-Size BNC I/O Card from UBMS Dubai.Contact UBMS to get the best price.
Key Features
- 12G-SDI I/O for 8K, UHD-2, DCI, UHD, 2K, HD, and SD with HFR support up to 8K60p at YUV 10-bit 4:2:2, and support for RGB 12-bit 4:4:4 up to 8K30p
- Four bidirectional 12G-SDI BNC connectors and one Reference In BNC
- LTC input via Reference In (switchable) on the card header
- 16-channel embedded SDI audio per 12G-SDI port
- 10-bit downstream keyer in hardware, supporting up to 4K resolution
- AJA SDK compatibility on Windows, macOS, and Linux, offering advanced features including multichannel 4K I/O
- Low-profile design for use in workstations or servers
- 8-lane PCIe 3.0 design
- RS-422 serial control via an internal 9-pin port on the header of the card
- Active heatsink
Video Formats
- (8K) 8192 x 4320p at 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UHD-2) 7680 x 4320p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (DCI) 4096 x 2160p at 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (UHD) 3840 x 2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p at 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (2K) 2048 x 1080PsF at 23.98, 24, 25, 29.97, 30
- (HD) 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080PsF at 23.98, 24, 25, 29.97, 30
- (HD) 1080i at 50, 59.94, 60
- (HD) 720p at 50, 59.94, 60
- (SD) 625i at 50
- (SD) 525i at 59.94
- High frame rate capabilities are dependent on host system attributes; not all systems and configurations will support all frame rates
Video Input Digital
- 12G-SDI, SMPTE-2082, 12-, 10-, and 8-bit
- 6G-SDI, SMPTE-2081, 10- and 8-bit
- 3G-SDI, SMPTE-259/292/296/424/425, 12-, 10-, and 8-bit
- DCI/UHD 4:4:4 (4 x BNC)
- 1.5G-SDI, SMPTE 372M, dual-link HD 4:4:4 (2 x BNC), 12-, 10-, and 8-bit
- 1.5G-SDI, SMPTE 292M, single-link 4:2:2 (1 x BNC), 10- and 8-bit
Video Output Digital
- 12G-SDI, SMPTE-2082, 12-, 10-, and 8-bit
- 6G-SDI, SMPTE-2081, 10- and 8-bit
- 3G-SDI, SMPTE-259/292/296/424, 12-, 10-, and 8-bit
- DCI/UHD 4:4:4 (4 x BNC)
- 1.5G-SDI, SMPTE 372M, dual-link HD 4:4:4 (2 x BNC), 12-, 10-, and 8-bit
- 1.5G-SDI, SMPTE 292M, single-link 4:2:2 (1 x BNC), 10- and 8-bit
SDI I/O
- SDI connections are bidirectional
- 2K/HD; capture and monitoring is simultaneous
- DCI/UHD with 12G-SDI; capture and monitoring is simultaneous
- DCI/UHD with 3G-SDI; all four connections must be used for either input or output
- 8K/UHD-2 with 12G-SDI; connections must be used for either input or output
- When connections are configured for 12G-SDI or 6G-SDI, only UHD/DCI/UHD-2/8K formats are supported
Audio Inputs Digital
- 16-channel, 24- and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
Audio Output Digital
- 16-channel, 24- and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous
Downstream Keyer
- Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to DCI/UHD
Reference
- Analog color black (1V) or composite sync (2 or 4V) or HD tri-level sync (1V) via one BNC on the PCIe bracket
- Reference input is terminated into 75 Ohms when genlock is set to Ref In
Timecode
- LTC timecode input via a 2-pin header on the PCIe card
- LTC timecode input via the Ref In connector (switchable) on the PCIe bracket
Electrical Interface
- 8-lane PCIe 3.0
Machine Controls
- RS-422, Sony 9-pin protocol via a header on the PCIe card
Noise
- <50 dBA (A-weighted at 3.3' in free air)
Power
- 25W typical, 32W maximum
- PC internal ATX power connector (Molex 45559-0002)
- Corvid 44 12G can use either PCIe power from a 6-pin ATX connector or via the PCIe slot
ID: 49826052735262
UBMS is an authorized distributor of AJA in Dubai, Abu Dhabi, UAE. Contact us or buy online AJA Corvid 44 12G PCIe 4-Channel 12G-SDI Full-Size BNC I/O Card (Tall Bracket, Fan) with best price.
