Riedel

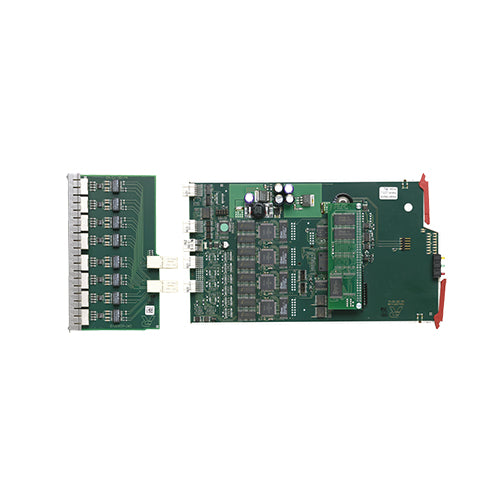

Digital Client Card AES Digital audio I/O-card (4x AES3) incl. Sample Rate Converter on RJ-45 for connection to digital mixing consoles, routers etc.

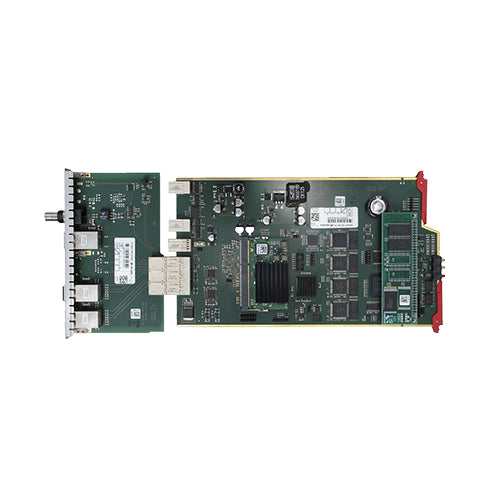

AES67 Client Card Converts 8 Artist control key-panel ports into an IP AES67 stream and vice versa on RJ45 connector

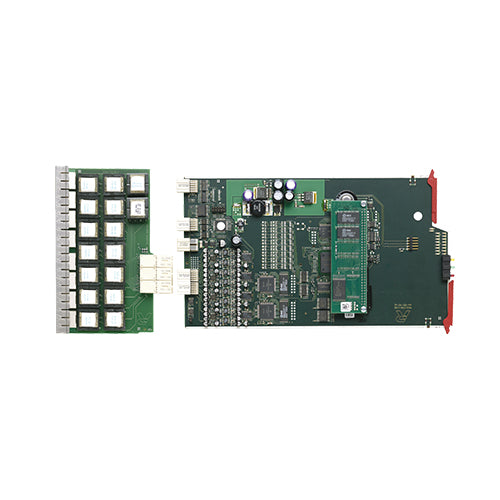

Analog Client Card 8 transformer balanced (AIO-109 G2: electronically balanced) Analog 4-wire intercom ports (+18dBu in/out) on individual RJ-45/D-Sub25 for connection to equipment such as studio loudspeakers, cameras, telephone hybrids etc.

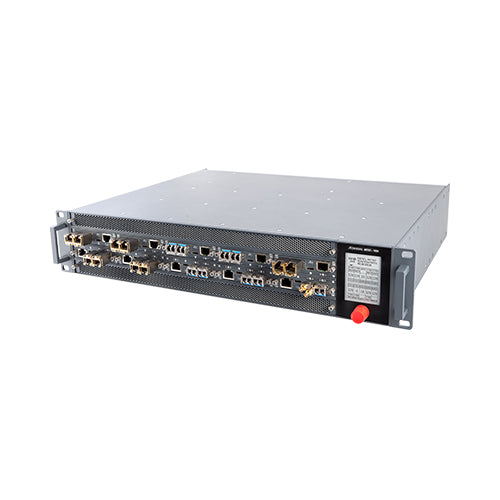

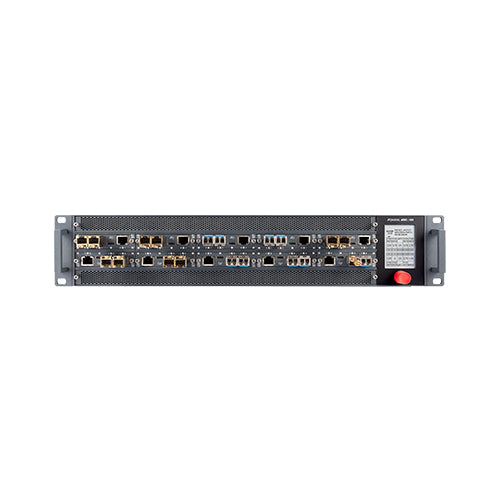

Artist-1024 is the next evolutionary step in the continuous development of the Artist intercom ecosystem. This new node complements the Artist family, expanding its capabilities with a focus on IP-based installations and higher port densities. With Artist-1024, full compatibility is guaranteed. The node can...

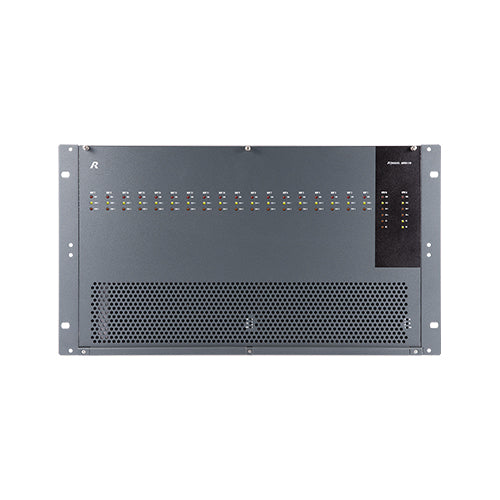

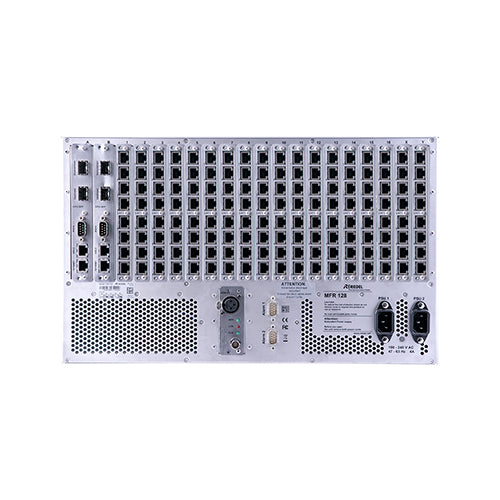

Maximum matrix size: 1024 x 1024 Hot swap of all modules Redundant power supplies Redundant node controller Max. ports per frame: 128 Max. number of controller / client / GPI cards per frame: 2 / 16 / 2 19" / 6 RU

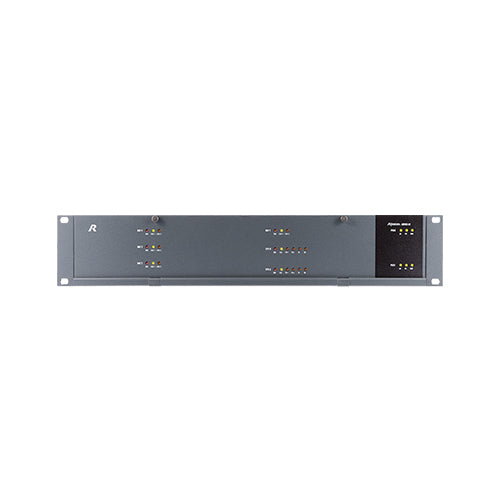

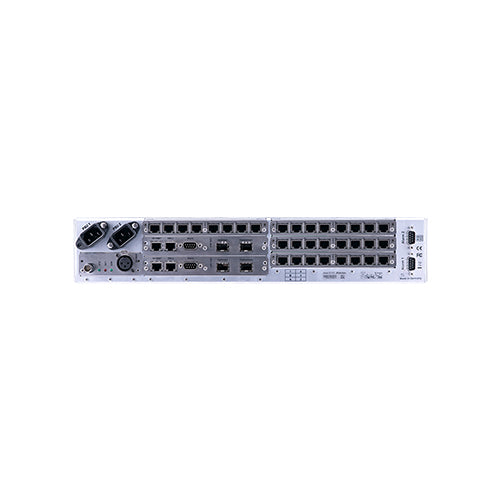

Maximum matrix size: 1024 x 1024 Hot swap of all modules Redundant power supplies Redundant node controller Max. ports per frame: 32 Max. number of controller / client / GPI cards per frame: 2 / 4 / 1* 19" / 2 RU * Typical...

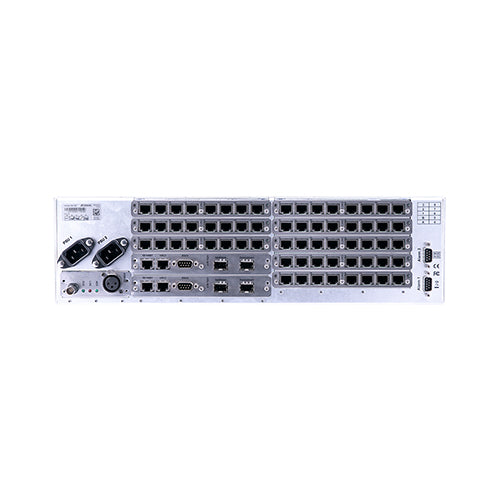

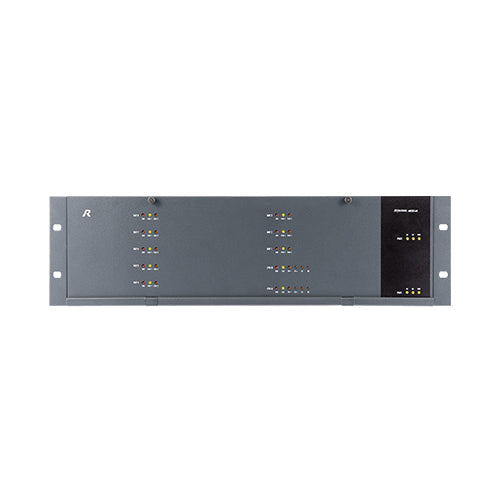

Maximum matrix size: 1024 x 1024 Hot swap of all modules Redundant power supplies Redundant node controller Max. ports per frame: 64 Max. number of controller / client / GPI cards per frame: 2 / 8 / 1* 19" / 3 RU * Typical...

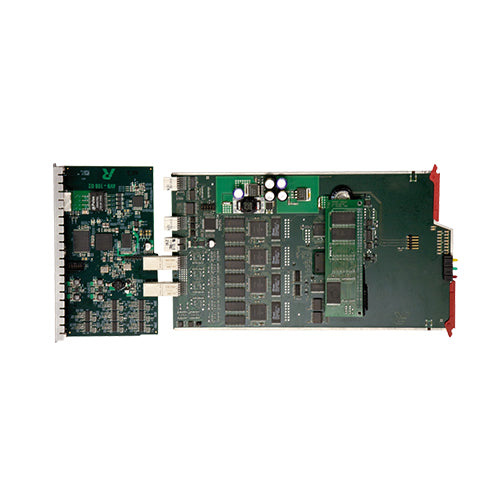

Digital Client Card CAT5 8 digital control key-panel ports on individual RJ-45 connectors for connection of Artist key panels using CAT5 computer cable

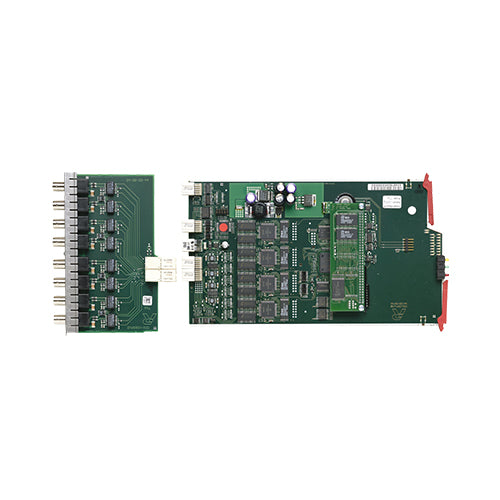

Digital Client Card Coax 8 digital control key-panel ports on individual 75 Ohm BNC connectors for connection of Artist key panels using coax cable

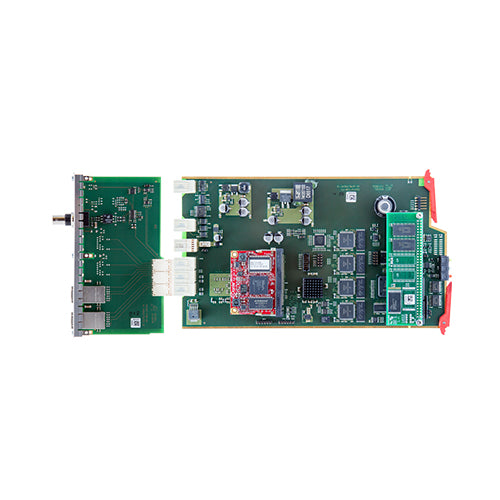

Dante-108 Client Card Converts 8 Artist matrix ports to Dante and vice versa

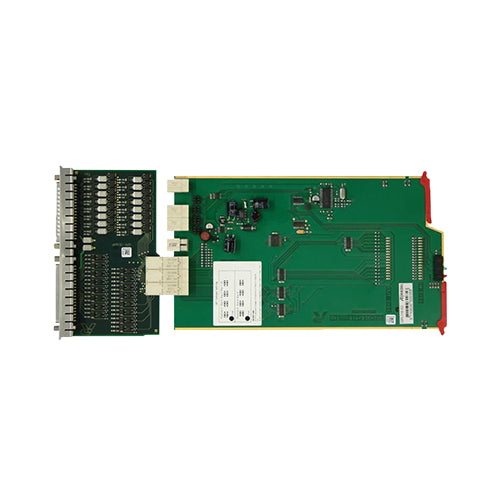

GPI Client Card 16 outputs (300 mA, 60V) and 16 opto-isolated level inputs (5-48V) on SubD37 to read Tallies, key transmitters, etc.

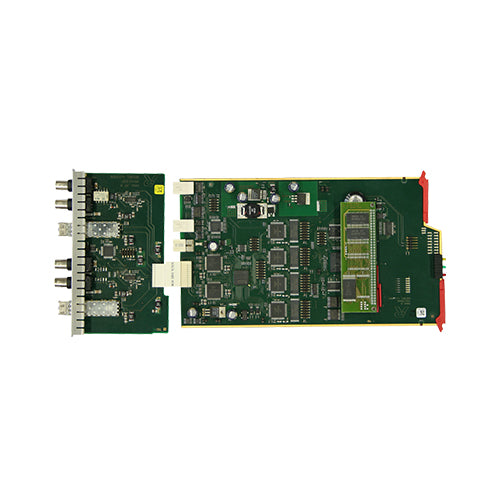

MADI Client Card Cascadable to 64 channels on one MADI stream. Includes audio & panel data to remote panels or connect multi-channel audio to audio routers. Optical & Coax MADI links are supported.

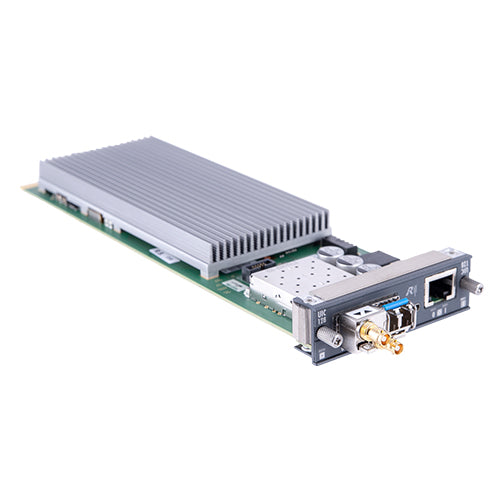

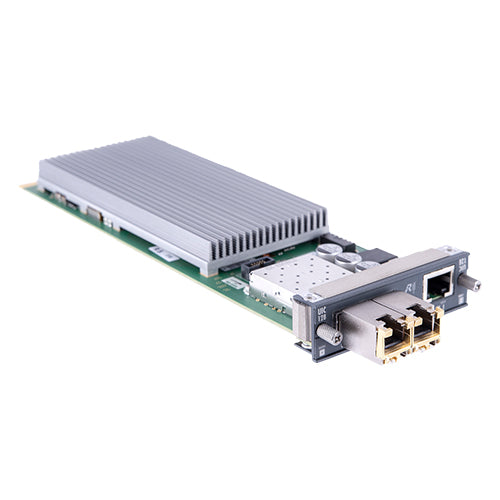

High-density Universal Interface Cards (UIC) with up to 128 ports per card Software-defined UIC can switch between SMPTE 2110-30/31 (AES67), MADI router/processor/Artist fiber Only for Artist-1024

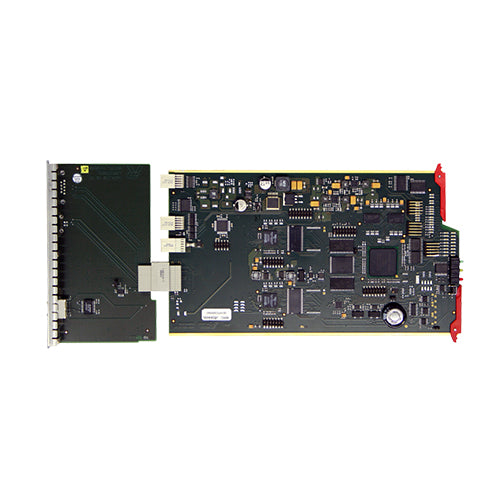

VoIP Client Card (EBU Tech 3347 compatible) Converts 8 Artist control key-panel ports into a compressed IP-stream and vice versa, SIP-based, RJ45 connector
