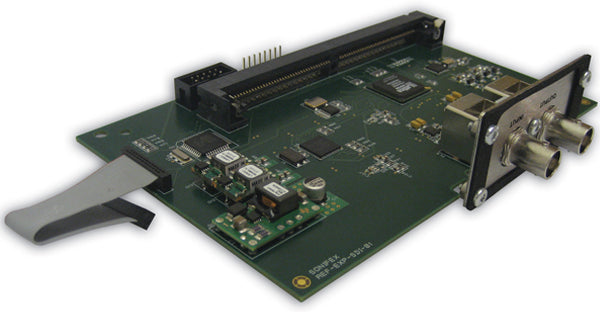

The Sonifex RM-HD1 is a professional-grade 3G/HD/SD-SDI expansion card designed to bring embedded audio monitoring capabilities to compatible Sonifex reference monitors including the RM-2S4, RM-2S10 and RM-4C8. This expansion board enables precision extraction and analysis of embedded non-encoded linear PCM audio channels from SD, HD or 3G-SDI video signals, making it ideal for broadcast, post-production, and AV facilities. :contentReference[oaicite:1]{index=1}
Equipped with an auto-sensing SDI input and a re-clocked SDI output, the RM-HD1 de-embeds any selected AES/EBU audio group (four channels) and passes them through to the main reference monitor for visual metering and speaker monitoring. Optional audio delay up to ~300 ms can be set using Sonifex SCi remote control software, giving engineers flexible monitoring control within complex signal chains. :contentReference[oaicite:2]{index=2}
With support for SMPTE-272 (SD) and SMPTE-299 (HD/3G) embedded audio standards and robust SDI signal handling, the RM-HD1 expansion card ensures reliable, high-quality audio extraction and monitoring when paired with Sonifex’s precision reference monitors. :contentReference[oaicite:3]{index=3}
ID: 50577679843614
| SDI Connectivity | |
|---|---|
| SDI Input | 1 × BNC, 3G/HD/SD-SDI |
| SDI Output | 1 × BNC, 3G/HD/SD-SDI (re-clocked) |
| Impedance | 75 Ω |
| Output Level | 800 mV ±10 % |
| Output Alignment Jitter | <0.2 UI |
| Return Loss | <15 dB @ 1500 MHz |
| Supported Standards | |
| Video Standards | SMPTE-259M-C (SD), SMPTE-292M (HD), SMPTE-424M (3G) |
| Embedded Audio | SMPTE-272 (SD), SMPTE-299 (HD/3G), 48 kHz |
| Physical | |
| Dimensions (Raw) | 150 × 115 × 31 mm approx. |
| Boxed Dimensions | 250 × 200 × 100 mm approx. |
| Weight (Net) | 0.13 kg |
| Weight (Gross) | 0.40 kg |
ID: 50577679843614
UBMS is an authorized distributor of Sonifex in Dubai, Abu Dhabi, UAE. Contact us or buy online Sonifex RM-HD1 Reference Monitor 3G/HD/SD-SDI Expansion Card with best price.
