Blackmagic Design ATEM Camera Control Panel

Blackmagic Design SWPANELCCU4 Overview

The Blackmagic Design ATEM Camera Control Panel is a professional-grade hardware control panel designed to provide precise and intuitive control over up to four URSA Mini, URSA Broadcast, Blackmagic Studio, or Micro Studio cameras. Housed in a durable metal chassis with a sleek, uniform design that matches other modern ATEM hardware, this panel is an essential tool for live multicamera productions. With its comprehensive set of controls for iris, shutter speed, white balance, gain, pedestal, RGB adjustments, and more, the ATEM Camera Control Panel ensures consistent and high-quality video output from every camera angle.

Key Features

• Control Four Cameras: Simultaneously manage up to four cameras with dedicated control banks, each featuring a large LCD screen, soft buttons, knobs, and professional controls.
• Scene Presets: Save and recall scene presets to quickly adjust camera settings based on changes in lighting or environmental conditions.
• Independent RGB Controls: Adjust red, green, and blue levels for gain and pedestal (white and black) to compensate for unwanted color casts and achieve precise color balance.
• Lens and Iris Controls: Includes a high-quality joystick for precise adjustments of the iris and master black levels, ensuring optimal exposure and contrast.
• Call Button and Talkback: Communicate with camera operators using the built-in call button and talkback functionality.
• LED Camera Indicators: Displays camera status, including preview and on-air indicators, for quick visual confirmation of active cameras.
• Ethernet Connectivity: Seamlessly integrates with ATEM live production switchers and hardware control panels via Ethernet, allowing for easy setup in multi-device workflows.

Comprehensive Camera Control

The ATEM Camera Control Panel provides hands-on control of critical camera settings, ensuring consistent video quality across all cameras in a live production:

• Iris and Shutter Speed: Adjust exposure settings to adapt to changing lighting conditions.
• White Balance: Fine-tune white balance to match the scene's lighting environment.
• Gain and Pedestal: Independently control RGB levels for whites and blacks to eliminate color bias and ensure accurate tonal balance.
• Master Black Adjustment: Use the joystick to precisely set the master black level, enhancing image contrast and depth.

Scene and Camera Controls

The top section of the panel includes intuitive controls for managing scene presets and camera settings:

• Scene Presets: Save and recall settings for different lighting scenarios, streamlining camera adjustments during live events.
• Master Gain and White Balance: Quickly adjust overall gain and white balance to maintain consistency across cameras.
• Shutter Speed Control: Modify shutter speed to reduce motion blur or capture sharper images in fast-paced environments.

ATEM Switcher Integration

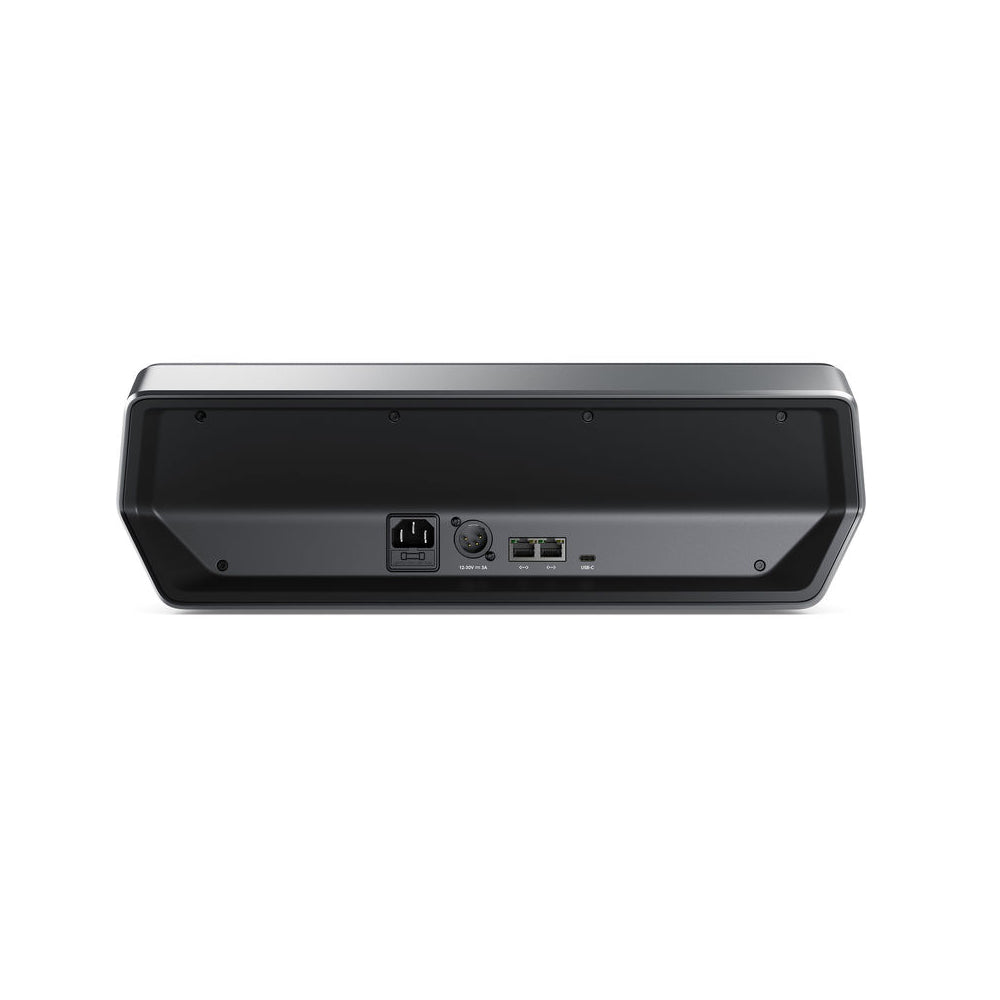

The ATEM Camera Control Panel connects directly to ATEM live production switchers, such as the ATEM 4 M/E Broadcast Studio 4K, via Ethernet. This integration allows for seamless communication between the control panel, switcher, and cameras, enabling efficient multicamera workflows. In setups with multiple ATEM devices, Ethernet connections can be looped from one device to another, simplifying cable management and setup.

Durable and Professional Design

The ATEM Camera Control Panel is built to withstand the demands of professional environments:

• Metal Chassis: Ensures durability and reliability during extended use.
• Uniform Design: Matches the aesthetic and functionality of other ATEM hardware, creating a cohesive studio setup.
• Status Indicators: LED indicators for network, power, and camera connection status provide real-time feedback on system performance.

Ideal Use Cases

• Live multicamera productions, such as concerts, sports events, and conferences.
• Studio broadcasts requiring precise control over multiple cameras.
• Documentary and ENG/EFP workflows where quick adjustments to camera settings are essential.
• Corporate events and presentations with dynamic lighting and camera setups.

Why Choose the ATEM Camera Control Panel?

The Blackmagic Design ATEM Camera Control Panel is an indispensable tool for professionals managing live multicamera productions. Its ability to control up to four cameras simultaneously, combined with advanced features like scene presets, independent RGB adjustments, and precise iris control, ensures consistent and high-quality video output. Whether you're working in a studio or on location, this panel provides the precision, flexibility, and reliability needed to deliver professional-grade results every time.

Conclusion

The Blackmagic Design ATEM Camera Control Panel sets a new standard for live camera control, offering unparalleled versatility and performance in a compact and durable package. With its intuitive interface, comprehensive control options, and seamless integration with ATEM switchers, it is the ultimate solution for professionals working in live production environments. Whether you're managing a single camera or coordinating multiple cameras in a complex setup, the ATEM Camera Control Panel ensures you have the tools you need to create stunning visuals and deliver flawless broadcasts.
