Blackmagic Design ATEM 1 M/E Constellation UHD 4K Live Production Switcher

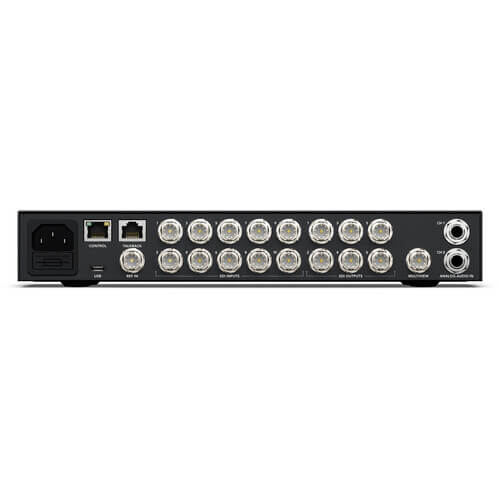

The Blackmagic Design ATEM 1 M/E Constellation UHD 4K Live Production Switcher adds UHD 4K capabilities and 12G-SDI ports to the familiar switcher construction of its predecessor. Designed for powerful live event UHD 4K switching, the unit features 10 individual 12G-SDI inputs that support 12G/3G/HD-SDI signals and deliver them to six 12G-SDI outputs or webcam USB-C output. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

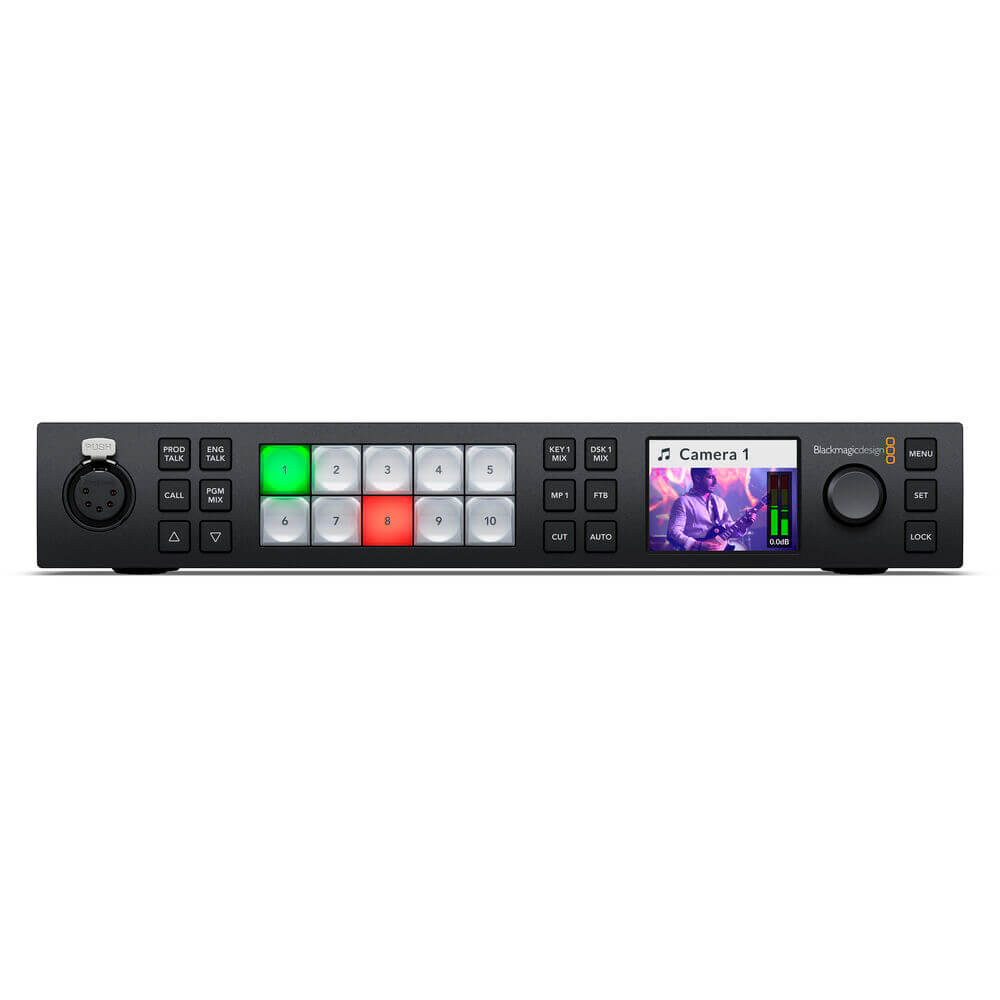

The switcher features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.

Broadcast-Quality Transitions

The ATEM Constellation UHD 4K includes a wide range of broadcast-quality native transitions such as mix, dip, wipe, and more. All transitions can be customized in the system control menus with adjustments for border color, border width, position, direction, and a lot more.

Built-In DVE

The ATEM Constellation features two independent DVEs that let you reposition graphics and create picture-in-picture compositions.

Multiview

Configurable to 16, 13, 10, 7, or 4 up view, it includes monitoring of program, preview, inputs, media players, DSK, and clean feed with optional labels and audio meters.

Professional Broadcast Talkback

To keep crews working as a single creative team, ATEM Constellation features built-in talkback. Talkback supports a 5-pin XLR headset connector, plus a rear-mounted RJ12 connector for interfacing with industry-standard talkback systems such as ClearCom or RTS. You get full talkback control, including program and engineering loops, sidetone control for hearing the headset mic into the headphones, and program mix.

Internal Media Pool

The built-in media pool stores broadcast-quality RGBA graphics and animations that can be played back instantly by two or four media players.

Chroma Keyers

The ATEM chroma keyer features a color picker to sample background colors for automatic generation of the key parameters.

Multi-Rate 12G-SDI

With up to 10 multi-rate 12G-SDI connections, the ATEM 1 M/E Constellation UHD 4K is compatible with various video sources. You can connect equipment in UHD and HD video standards including 720p, 1080i, 1080p, and 2160p formats.

Fairlight Audio Mixer

All SDI inputs on the Constellation UHD 4K are connected to a built-in Fairlight audio mixer with 6-band parametric EQ, compressor, limiter, noise gate, and expander.

ATEM Software Control Panel

Use the ATEM Software Control Panel to facilitate control over your Constellation unit using your personal computer. The software has a visual switcher interface and parameter palettes for quick adjustments.

Optional Control Panels

The Constellation UHD 4K is compatible with three models of the ATEM Advanced Panels. The panels feature industry-standard M/E-style layouts with built-in LCD screens.
