Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder 16 Channel Digital I/O
Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder 16 Channel Digital I/O
Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder 16 Channel Digital I/O

Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder 16 Channel Digital I/O

بائع: Sonifex
رمز التخزين التعريفي: RB-VHCMD16
التوفر: 3-6 weeks
AED 11,500.00 AED 12,075.00 Incl. VAT
AED 11,500.00 AED 12,075.00 Incl. VAT
AED

Key Features:

  • Combined SDI audio embedder and de-embedder in one 1U rackmount unit
  • 16 channels of digital audio I/O for flexible embedding and de-embedding
  • Supports 3G, HD, and SD-SDI formats up to 1080p60
  • Triple-rate SDI receiver with automatic input detection and equalisation
  • Two re-clocked SDI outputs for clean video distribution
  • Independent audio level control for all channels

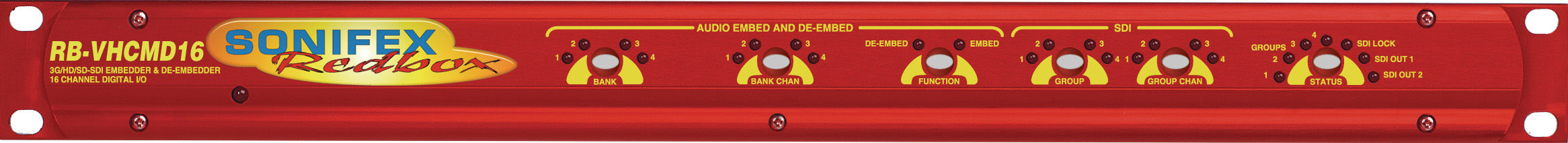

  • Front panel buttons and LED indicators for routing and status monitoring
  • Remote control and configuration via Ethernet or serial connection

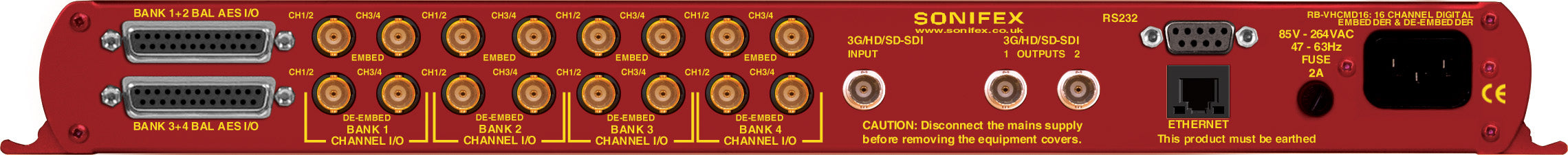

  • Balanced and unbalanced digital audio connections supported

ًالشحن مجانا

شحن قياسي مجاني للطلبات التي تزيد عن 500 درهم إماراتي

التبادلات والإرجاع

يُمكن استبدال المنتج أو إرجاعه خلال خمسة (5) أيام فقط من تاريخ الشراء. تعرّف على المزيد.


Buy with 0% installments and pay AED 958.33 for 12 months with selected banks. Read More
وصف
وصف
x

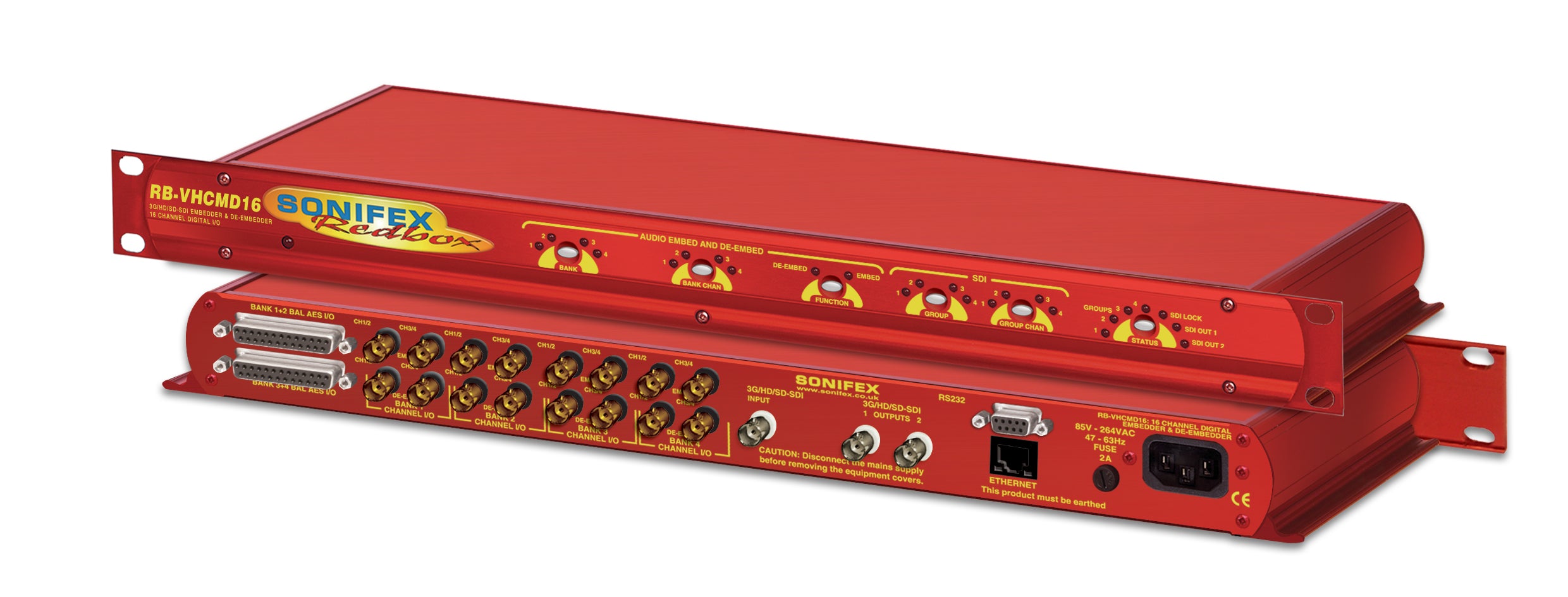

The Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder with 16 Channel Digital I/O is a versatile rackmount solution that combines multi-channel SDI audio embedding and de-embedding in a single unit. It allows digital audio to be extracted from an SDI video signal and re-embedded back into SDI outputs, making it ideal for broadcast, OB, and production environments that require flexible audio routing.

Supporting SD, HD, and 3G-SDI formats up to 1080p60, the unit features a triple-rate SDI receiver with automatic rate detection and equalisation for stable video performance. Sixteen channels of digital audio can be independently routed, embedded, or de-embedded with precise level control. Front panel controls provide clear status indication, while Ethernet and serial connectivity enable remote configuration and control for seamless integration into modern broadcast workflows.

ID: 50553722143006

اقرأ المزيد
Reviews
Reviews
x

UBMS is an authorized distributor of Sonifex in Dubai, Abu Dhabi, UAE. Contact us or buy online Sonifex RB-VHCMD16 3G/HD/SD-SDI Embedder & De-Embedder 16 Channel Digital I/O with best price.
