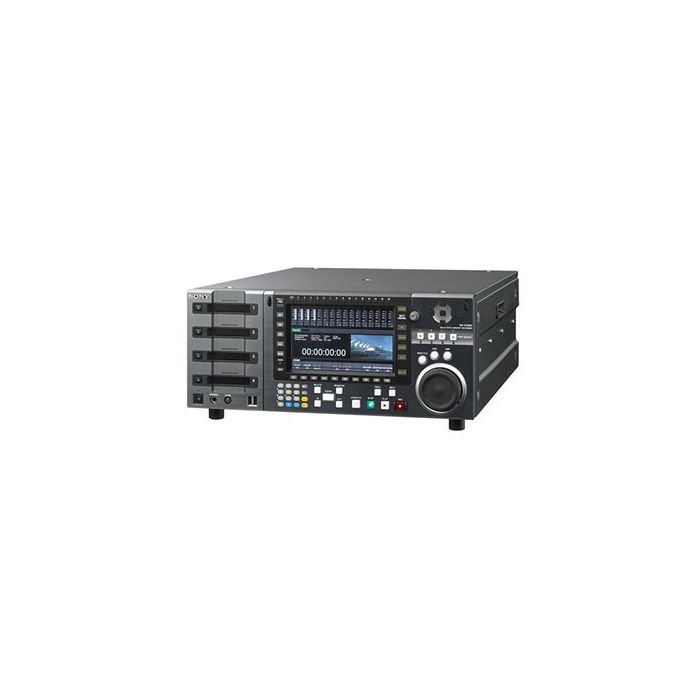

Sony SRMASTER A/V Recording and Storage System
The Sony SRMASTER A/V Recording and Storage System is designed to handle 2D, 3D, 720p 1080p, 2K, and 4K formats in a single unit. (Mfr # SR-R1000)
The Sony SRMASTER A/V Recording and Storage System is designed to handle 2D, 3D, 720p 1080p, 2K, and 4K formats in a single unit and is suitable for live, broadcast, and post-production as well as multi-camera ISO recording, instant replay clip feeder, high-speed multi-ingest, and cache storage.
By employing HDCAM-SR codec and MPEG-4 Simple Studio Profile (SStP) formats, the SRMASTER offers outstanding picture quality. In addition to uncompressed recording, the system supports 4:2:2 (10-bit) and RGB 4:4:4 (10-bit and 12-bit) recording via compression modes such as SR-Lite (220 Mbps), SR-SQ (440 Mbps), and SR-HQ (880 Mbps).
You can configure up to 4 Dual-stream A/V channels (3-In/1-Out, 2-In/2-Out, 1-In/3-Out, or 4-Out) by installing optional SRK-R201 or SRK-R202 HD Input/Output boards. Each A/V channel is capable of handling dual-stream video, allowing you to record and play back one pair of 3D stereoscopic signals, and inserts a text or video image in the original video picture through key/fill signals. All four A/V channels can be operated simultaneously. The system can handle four A/V channels of 1080p 3D signals or RGB 4:4:4 3D signals.
Each A/V channel features a dual-link 3G-SDI interface, bringing an improved level of 3D stereoscopic production to live operation and post-production. By setting up the SR-R1000 to handle four streams of HD/2K signal, 4K images (3840 x 2160, 4096 x 2160 resolutions) can be recorded over quad HD-SDI or quad 3G-SDI.
The individual A/V channel supports 24-bit, 48 kHz 16-channel uncompressed digital audio and split-edit function that is used to hide transitions between scenes. Four slots are included for loading 256 GB, 512 GB or 1 TB removable SRMemory cards with a maximum storage capacity of 4 TB. The SRMemory card can be ejected as soon as the live event is complete even without turning-off the system, saving time and facilitating editing.
With Gigabit Ethernet (GbE) port, the SRMASTER recording system transfers (MPEG-4 SStP) format file over internet network. The system can be controlled by switcher and slow-motion controllers, and can be used as a 2D/3D clip feeder, synchronized key/fill source, graphics feeder, or temporary buffer during a live operation or post-production environments employing MVS switchers. It is compatible with third-party tools and popular craft editors, including Avid Media Composer and Apple Final Cut Pro.
Delivers outstanding picture quality by recording videos/images in the HDCAM-SR codec and MPEG-4 Simple Studio Profile (SStP) video formats
Handles 2D, 3D, 720p 1080p, 2K, and 4K formats in a single unit
Suitable for applications in live, broadcast, and post-production areas, including multi-camera ISO recording, instant replay clip feeder, high-speed multi-ingest, and cash storage
|Recording Format||MPEG-4 SStP format|
|Power Requirements||100-240 V AC|
|Power Consumption||Max. 480 W|
|Operating Temperature||41 to 104°F (5 to 40°C)|
|Storage Temperature||-4 to +140°F (-20 to +60°C)|
|Humidity||25-90% (no condensation)|
|Sampling Frequency||Y: 74.25 MHz
Pb/Pr: 37.125 MHz
|Sampling Frequency||RGB: 74.25 MHz|
|Sampling Frequency||48 kHz|
|Headroom||20/18/16/15/12/9 dB selectable|
|D/A Quantization||24 bits/sample|
|Reference Input||2 BNC (including one loop-through) 75 Ω with terminal switch
HD (tri-level sync)/SD (Black Burst)
|Remote (1/2/3/4)||4 D-sub 9-pin (female)|
|Video Control||1 D-sub 9-pin (female)|
|GPIO (25P)||1 D-sub 25-pin (female)|
|Network (1/2)||RJ-45 jack (x2), 1000BASE-T|
|Maintenance||3 USB type
1 RJ-45 jack
|Analog Monitor Output||2 XLR-3-pin (male)|
|Headphone Jack||1 Phone jack|
|Dimensions (W x H x D)||16.9 x 6.9 x 21.3" (427 x 174 x 540 mm) (excluding protrusion)|
|Weight||50 lb (23 kg) (with all options)
