- Lightweight Aluminum Baseplate
- 15mm LWS Rod Support
- 1/4"-20 & 3/8"-16 Camera Mounting Screws
- 1/4"-20 & 3/8"-16 Base Mounting Threads
- Rubber Pads Protect & Prevent Twisting

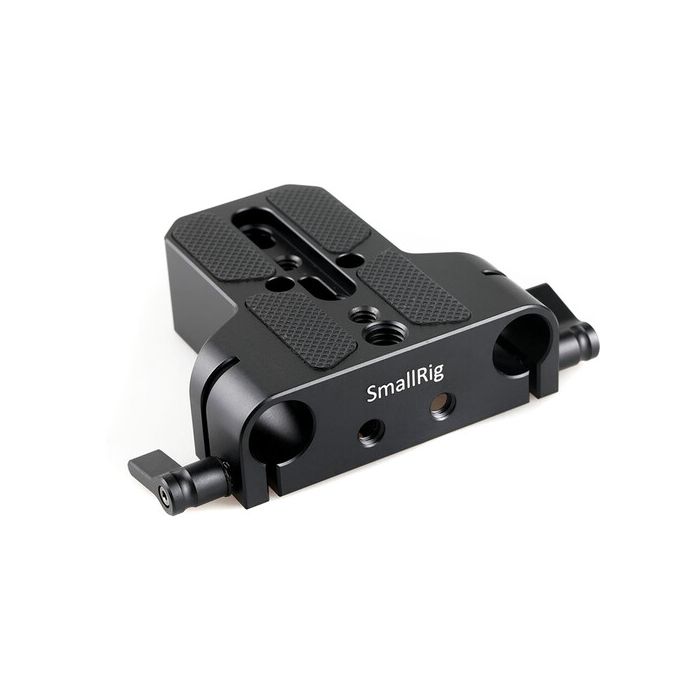

SmallRig 1674 Overview
Add a baseplate to your cinema camera with this Compact Camera Baseplate with 15mm LWS Rod Clamp from SmallRig. The baseplate provides multiple mounting threads on the base for mounting on a variety of plates and rigs, and it also features 15mm LWS rod support and 1/4"-20 and 3/8"-16 camera mounting screws. The plate is contoured to fit with shoulder pads while also remaining lightweight.
This solid baseplate features rubber padding on top of the plate to prevent twisting and scratching. The dual 15mm LWS rod clamp fastens separately available rods with easy-to-use thumb-lever locks, and it allows you to mount optional accessories such as a lens support, a matte box, or follow focus motors onto your rig.
Compatibility
- Various cinema, DSLR, or mirrorless cameras such as the Sony FS7, Sony a7 series, Canon C100/C300/C500, and others
UBMS is an authorized distributor of Smallrig in Dubai, Abu Dhabi, UAE. Contact us or buy online SmallRig Compact Camera Baseplate with 15mm LWS Rod Clamp 1674 with best price.
Specification | Value |
---|---|
Support Type | Baseplate |
Grip Type | No |
Camera Compatibility | Universal |
Rod Standard | 15 mm LWS / 60 mm Spacing |
Battery Plate Type | No |
Camera Mounting | 1/4"-20 Screw, 3/8"-16 Screw |
Tripod Mounting | Baseplate 1/4"-20 Female Thread, 3/8"-16 Female Thread, ARRI Dovetail Clamp |
Rod Ports | Baseplate: 2x 15 mm Rod Port |
Shoe Mounting | No |
Rosettes | No |
Materials | Aluminum, Rubber |
Dimensions | 3.1 x 3.1 x 1" / 8 x 8 x 2.6 cm |
Weight | 6 oz / 171 g |
Packaging Info | Value |
Package Weight | 0.49 lb |
Box Dimensions (LxWxH) | 5.2 x 4 x 1.7" |
- SmallRig Compact Camera Baseplate with 15mm LWS Rod Clamp
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- 2 x 1/4"-20 Mounting Screw
- Allen Wrench
