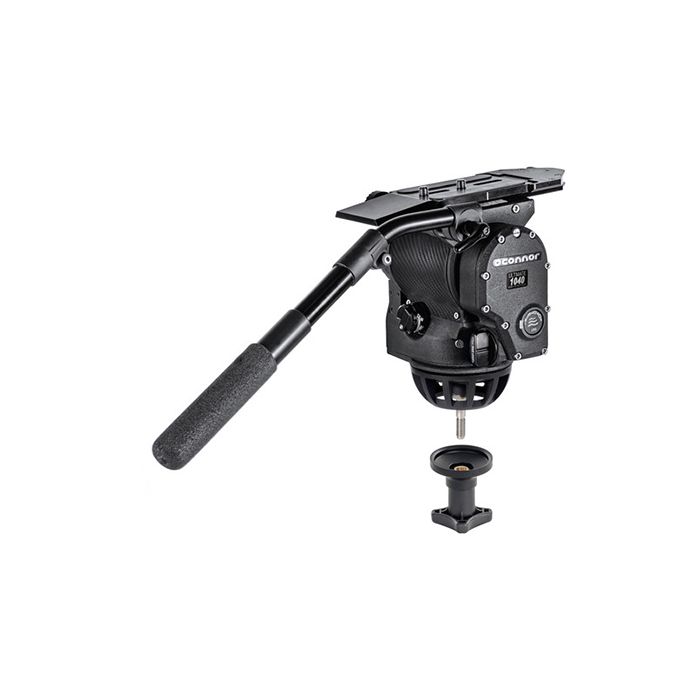

The OConnor Ultimate 1040 Fluid Head is a lightweight fluid head that shares features with the other fluid heads in the OConnor Ultimate fluid head line. This allows operators to easily transition between lighter and heavier cameras without having to relearn or think about the differences between fluid heads. The head supports 45 pounds' worth of camera and accessories at a center of gravity (COG) 5 inches above the camera platform. The counterbalance system helps prevent the camera from tilting forward or back on the head on its own and helps the camera to remain in the position the operator places it without requiring additional effort to hold it in place. The counterbalance system on the 1040 is a stepless system, so it is continuously variable from the maximum weight the head can support all the way down to zero. This makes the 1040 extremely versatile and suitable for use with heavy ENG-style cameras all the way down to lightweight cameras, while maintaining the same operational feel.
The 1040 features a large Euro-style quick release plate. The QR plate allows you to mount and remove the camera by lifting straight off the head and not having to slide it in from the back. The fluid head is able to tilt 90 degrees forward and back, allowing you to tilt the camera straight down and then straight up, all in the same shot. The camera also features independent drag controls and locks for both pan and tilt. The included 100mm ball base is removable and can be replaced with other available bases. The included pan handle can be attached to either side of the the fluid head, utilizing the mounting rosette on either side of the head.Payload and Counterbalance
The 1040 supports cameras and accessories up to 45 pounds at a COG of 5 inches. This is what the counterbalance can cancel out while keeping the head neutral in any position in the tilt range. The sinusoidal counterbalance supports lighter cameras and features near-zero balance error. The stepless counterbalance can be set all the way down to zero to accommodate lightweight cameras.Tilt Range
The 1040 provides a very wide tilt range of 90 degrees forward and and rear tilt, while supporting camera packages weighing up to 45 pounds (5" COG).Pan and Tilt Controls
The head features independent controls on the pan and tilt for lock and drag. The pan and tilt locks are easy to operate. Both controls match well with the controls of OConnor's larger 2575 and 2065 heads, making it easy for operators to move between the heads without having to relearn each head.Ball Leveling
The included 100mm ball base provides a side support base that easily accommodates the heavy loads this fluid head can support. The ball allows you to quickly level your shot without having to adjust the tripod legs. The ball base is also removable and available options include a Mitchell, 150mm ball base, 4-bolt, 3-bolt, or quickfix.
